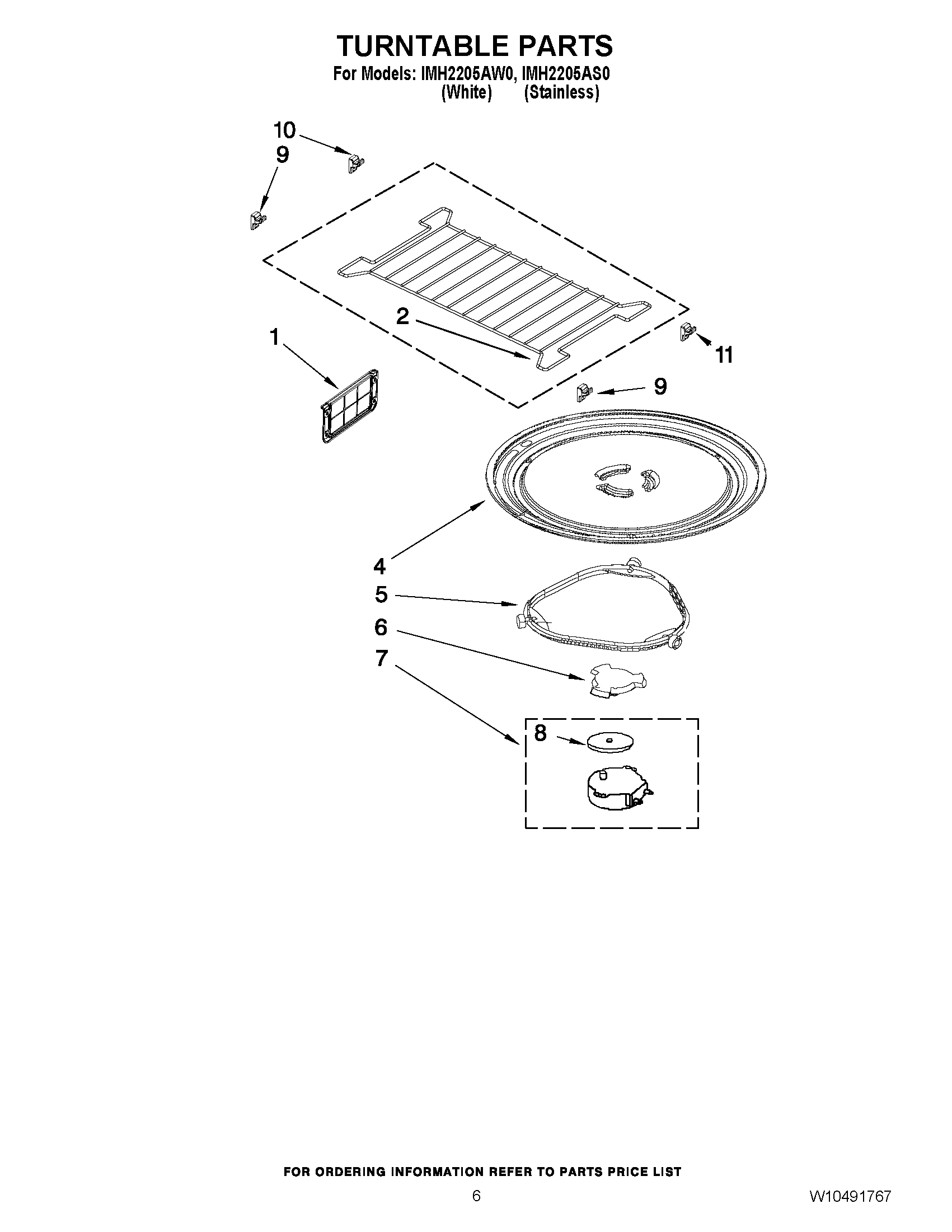

IMH2205AW0 05 – TURNTABLE PARTS

IMH2205AW0 05 – TURNTABLE PARTS

Written by

in

IMH2205AW0 05 – TURNTABLE PARTS

Products

PositionProduct
1Cover, Inlet Includes Nails and Bushings
2WPW10447234 Whirlpool Microwave Meal Rack
44393799 Whirlpool Microwave Glass Tray
5W11252182 Whirlpool Glass Tray Support
6W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
7WPW10466420 Whirlpool Turntable Motor
8W11381953 Whirlpool Microwave Plate
9W10840759 Whirlpool Microwave Support
10W10840794 Whirlpool Clip
11W10840795 Whirlpool Microwave Support
