IMH2205AW2 07 – CABINET AND INSTALLATION PARTS
Written by
in

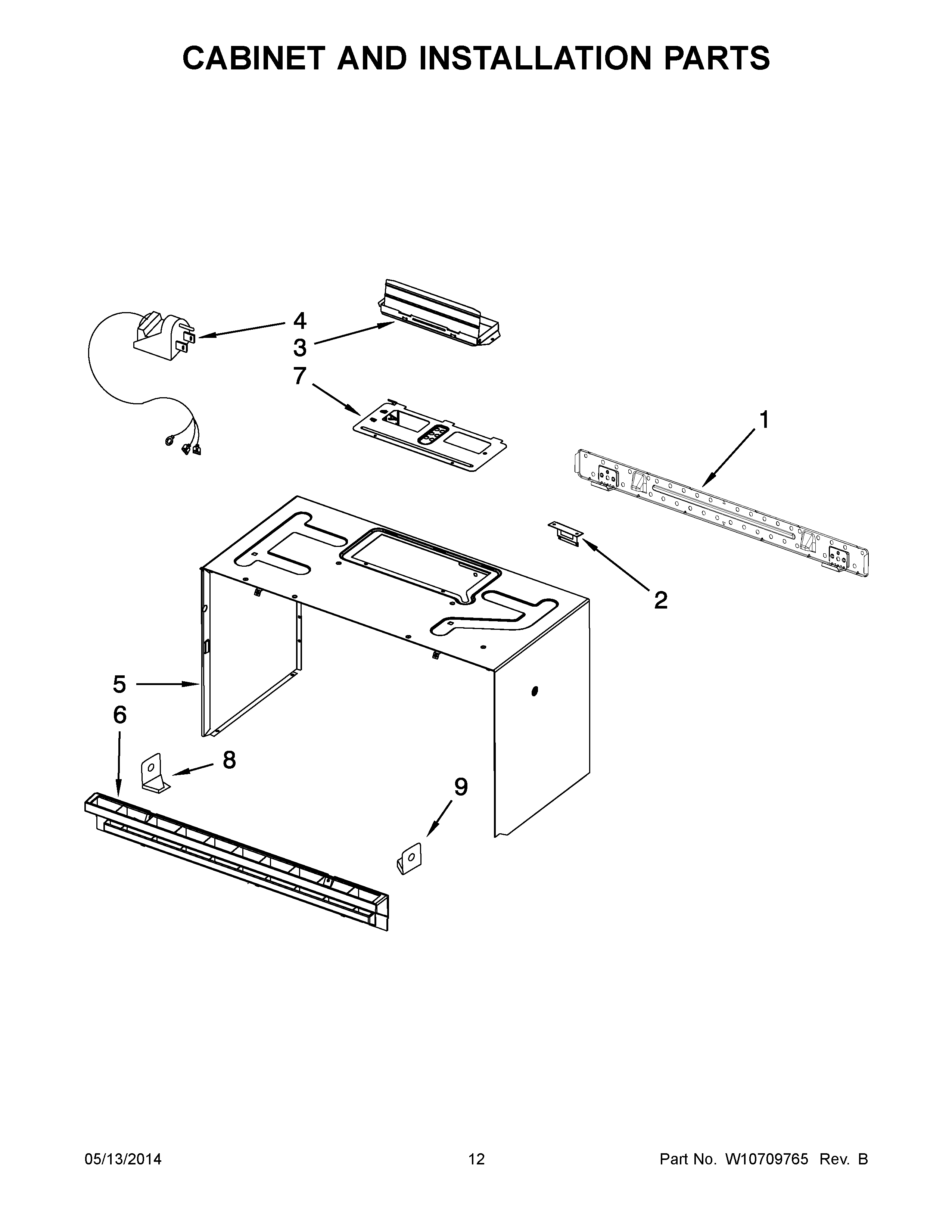

IMH2205AW2 07 – CABINET AND INSTALLATION PARTS
Products
Position
Product
NI
W10463325 Whirlpool Microwave Wire Harness
NI
W10543255 Whirlpool Microwave Wire Harness
NI
W10138802 Whirlpool Microwave Screw
NI
W10539840 Whirlpool Microwave Wire Harness
NI
W10821385 Whirlpool Hardware Kit
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
1
W11025649 Whirlpool Microwave Mounting Plate
2
8206385 Whirlpool Microwave Wire Clip
3
W10843943 Whirlpool Microwave Vent Damper
4
W10708076 Whirlpool Microwave Power Cord
5
WPW10462003 Whirlpool Oven Microwave Cabinet Wrapper
5
WPW10462001 Whirlpool Microwave Cab Wrapper
6
W10245216 Whirlpool Microwave Vent Grille
6
W10245217 Whirlpool Microwave Vent Grill
7
COVER, HOOD FAN MOTOR
8
W11026306 Whirlpool Microwave Mounting Bracket
9
W10703282 Whirlpool Microwave Mounting Bracket
←
