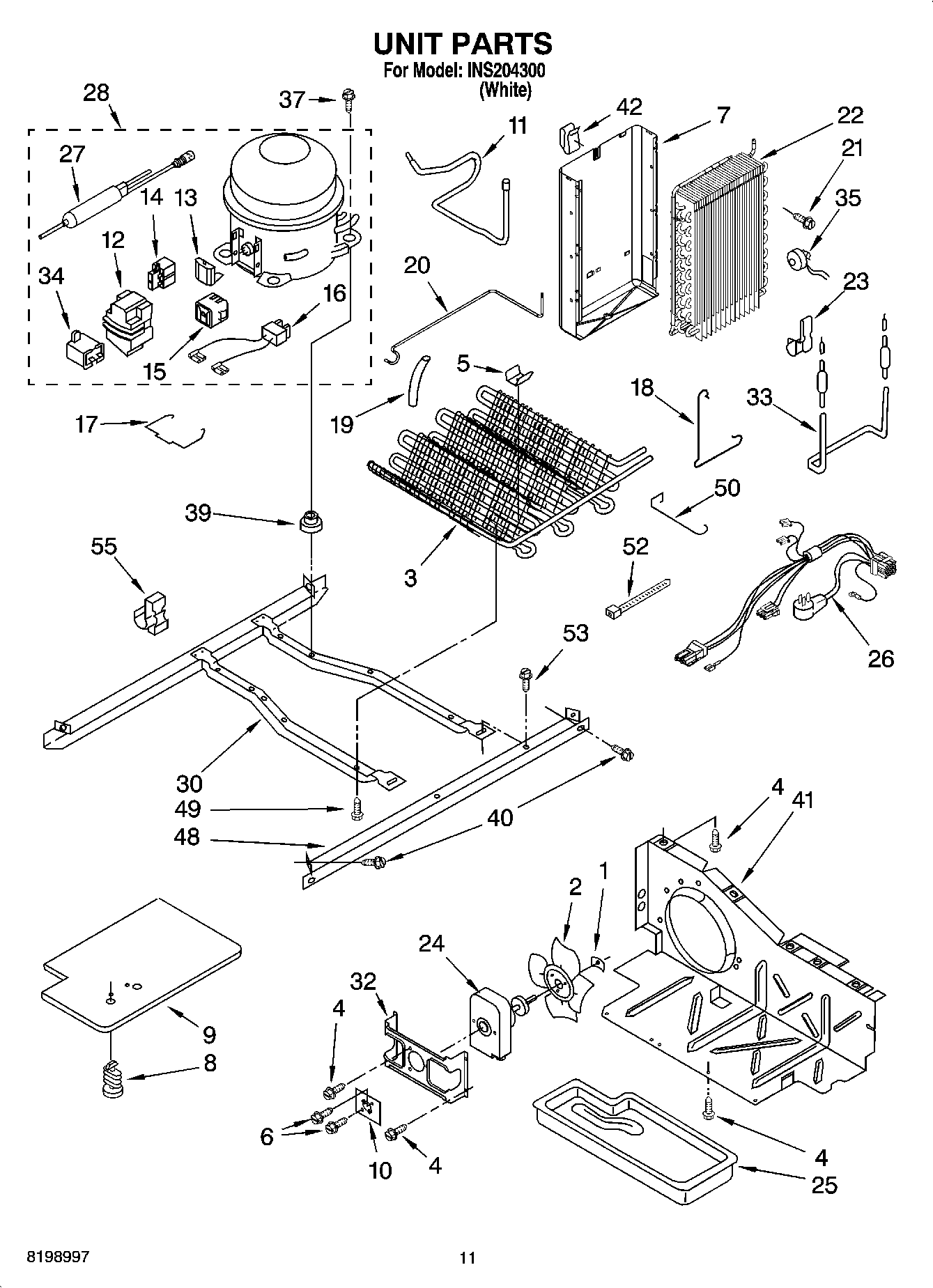

INS204300 07 – UNIT PARTSadmin2025-04-26T11:28:36+00:00INS204300 07 – UNIT PARTS ProductsPositionProduct1WP486692 Whirlpool Refrigerator Nut2Blade, Fan3Condenser Assembly4WP489464 Whirlpool Refrigerator Screw5W10683556 Whirlpool Refrigerator Clip68281160 Whirlpool Screw7Heat Shield And Drain Pan8489396 Whirlpool Refrigerator Clip9Unit Cover, Bottom10Insert, Bracket112220642 Whirlpool Refrigerator Tube12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2187145 Whirlpool Refrigerator Overload14W10920279 Whirlpool Refrigerator Start Relay15WP2188831 Whirlpool Refrigerator Start Device16WP2172890 Whirlpool Refrigerator Wire172255009 Whirlpool Retainer18Clamp19SLEEVE20Tube, Condenser to Heat Loop21WP965173 Whirlpool Dishwasher Screw22WP2188822 Whirlpool Refrigerator Evaporator23Clip24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade25WPW10614158 Whirlpool Refrigerator Evaporator Tray26WP2187778 Whirlpool Refrigerator Wire Harness27W10843121 Whirlpool Refrigerator Tube28W10309990 Whirlpool Refrigerator Compressor30Unit Mounting Frame32WP2181929 Whirlpool Refrigerator Bracket33WP2323197 Whirlpool Refrigerator Heater34WP65889-4 Whirlpool Refrigerator Capacitor34WPW10662129 Whirlpool Refrigerator Run Capacitor35WPW10225581 Whirlpool Refrigerator Defrost Thermostat39WP4387558 Whirlpool Refrigerator Compressor Grommet39876811 Whirlpool Grommet40489340 Whirlpool Refrigerator Screw41Air Baffle42Clip, Heat Shield48Unit Mounting Rail49W11544659 Whirlpool Refrigerator Screw501105612 Whirlpool Fan Guard52WPW10339879 Whirlpool Wire Tie53WP489427 Whirlpool Refrigerator Screw55VALVE, ACCESS (5/8``)55876764 Whirlpool Refrigerator Primary Valve55Following Parts Not Illustrated and Optional Parts Not Included55978026 Whirlpool Refrigerator Primary Valve55978027 Whirlpool Refrigerator Primary Valve55978030 Whirlpool Refrigerator Valve55WP978025 Whirlpool Refrigerator Valve55VALVE, ACCESS (1/2``)55Clip, Wire & Tube55REFRIGERANT CHARGE 5.0 oz. (
