INS204300 08 – CONTROL PARTS, OPTIONAL PARTS

INS204300 08 – CONTROL PARTS, OPTIONAL PARTS

Written by

in

INS204300 08 – CONTROL PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	W11729596 Whirlpool Ice Maker Field Install Kit
	WPL ARI76686A7
	WPL ARI76685A7
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI76684A1
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	606755 Whirlpool Refrigerator Bag
	WPL ARI76688A6
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	WPL ARI76687A6
	833938 Whirlpool Refrigerator Terminal

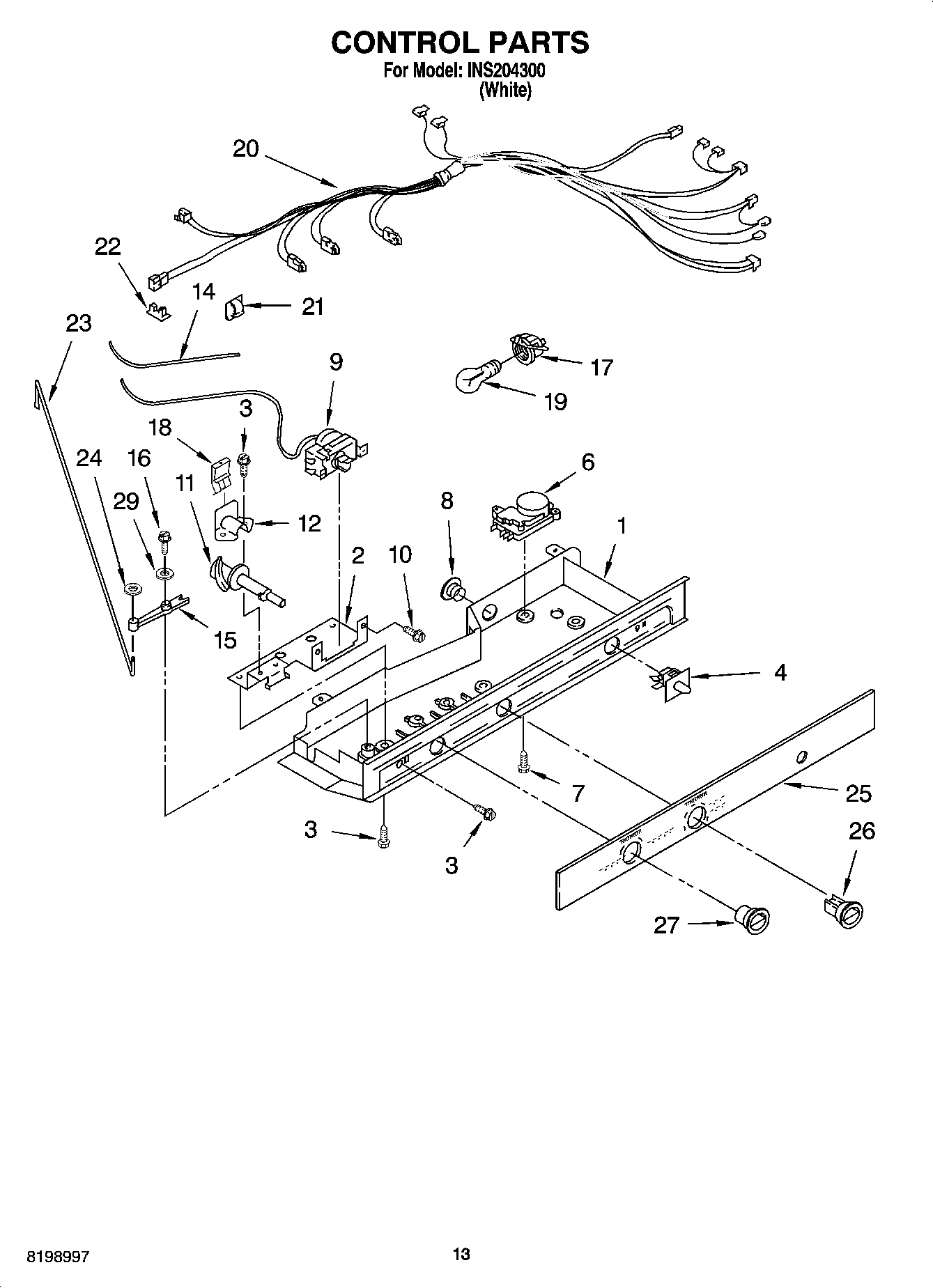

1	Control Box
2	Mounting Bracket
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
6	W10822278 Whirlpool Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
14	WP2196003 Whirlpool Refrigerator Bar Riser
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	WP2196062 Whirlpool Refrigerator Clip
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	2182111 Whirlpool Refrigerator Thermal Knob
27	Knob, Air Control
29	489203 Whirlpool Refrigerator Washer
