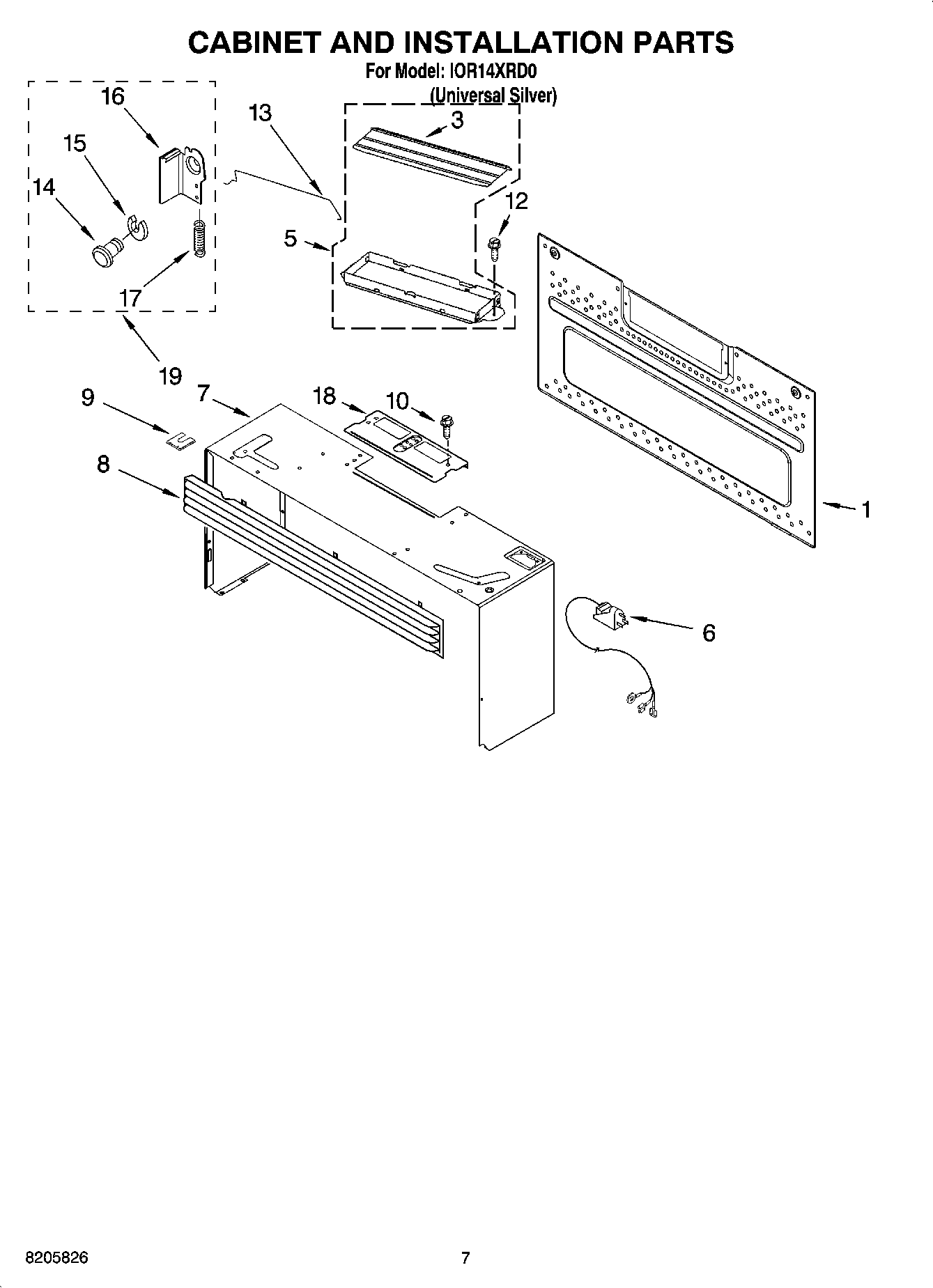

IOR14XRD0 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
	WP8169704 Whirlpool Screw
	H.V. Wire Assy.
	Lamp Wire Assy.
	Main Harness
	Ground Wire Assy.
	Wall Template
	Hardware, Installation
	Miscellaneous
	Template, Upper
1	WP8206174 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
6	W10708076 Whirlpool Microwave Power Cord
7	Case, Outer (Black)
8	8184608 Whirlpool Microwave Oven Vent Grille
9	8206334 Whirlpool Microwave Mounting Bracket
10	WP4393834 Whirlpool Microwave Screw
12	Screw
13	Rod
14	Latch, Pivot
15	E-Ring
17	Spring
18	Plate, Damper
19	Catch
