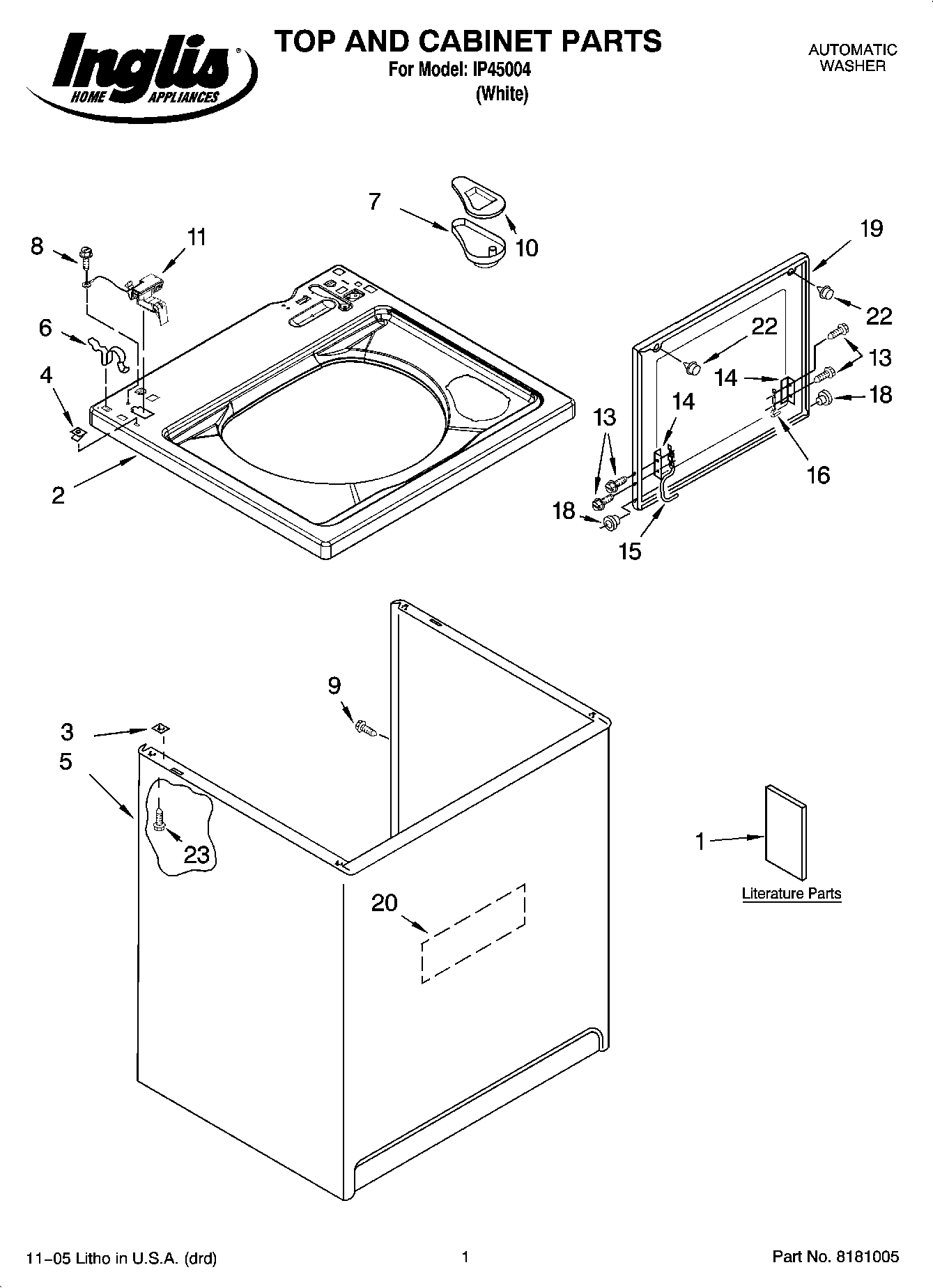

IP45004 01 – TOP AND CABINET PARTS

IP45004 01 – TOP AND CABINET PARTS

Written by

in

IP45004 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Wiring Diagram
1Feature Sheet
1Use & Care Guide
1Installation Instructions
2Top
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Dispenser, Bleach
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
10Cover, Dispenser
11WP8318084 Whirlpool Washer Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15Hinge, Lid (L.H.)
16WP91770 Whirlpool Hinge
18Bearing, Lid Hinge (2)
19Lid (White)
20Cabinet – Sound Damper
22WP9724509 Whirlpool Bumper
23WP3390631 Whirlpool Screw
