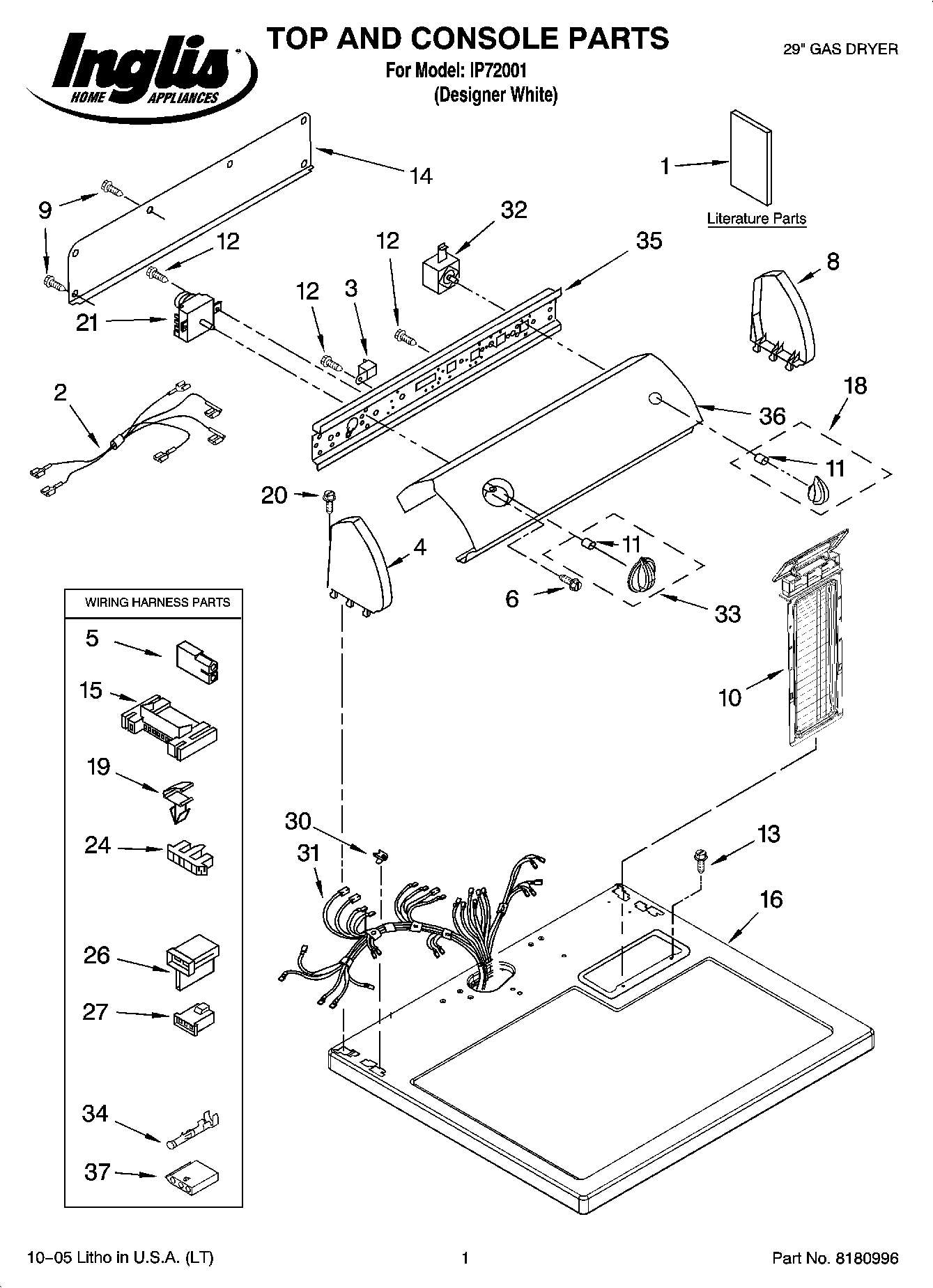

IP72001 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Wiring Diagram
1	Instructions, Installation
1	Use & Care Guide
1	Sheet, Cycle Feature
1	WPL 677818
2	Wire, Jumper (PTS to Buzzer)
3	WP694419 Whirlpool Buzzer Adjuster
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	3400859 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	W10103406 Whirlpool Rear Panel
15	3395683 Whirlpool Connector
16	Top
18	Knob, Control
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP3976584 Whirlpool Timer Assembly
24	Connector, Timer
26	WP3403499 Whirlpool Connector
27	WP3403498 Whirlpool Connector
30	WP357213 Whirlpool Hinge Stopper
31	8299877 Whirlpool Wire Harness
32	WP8543274 Whirlpool PTS Switch
33	Timer Knob Assembly
34	WP94614 Whirlpool Terminal
35	Bracket, Control
36	Panel, Control
37	3936144 Whirlpool Connector
