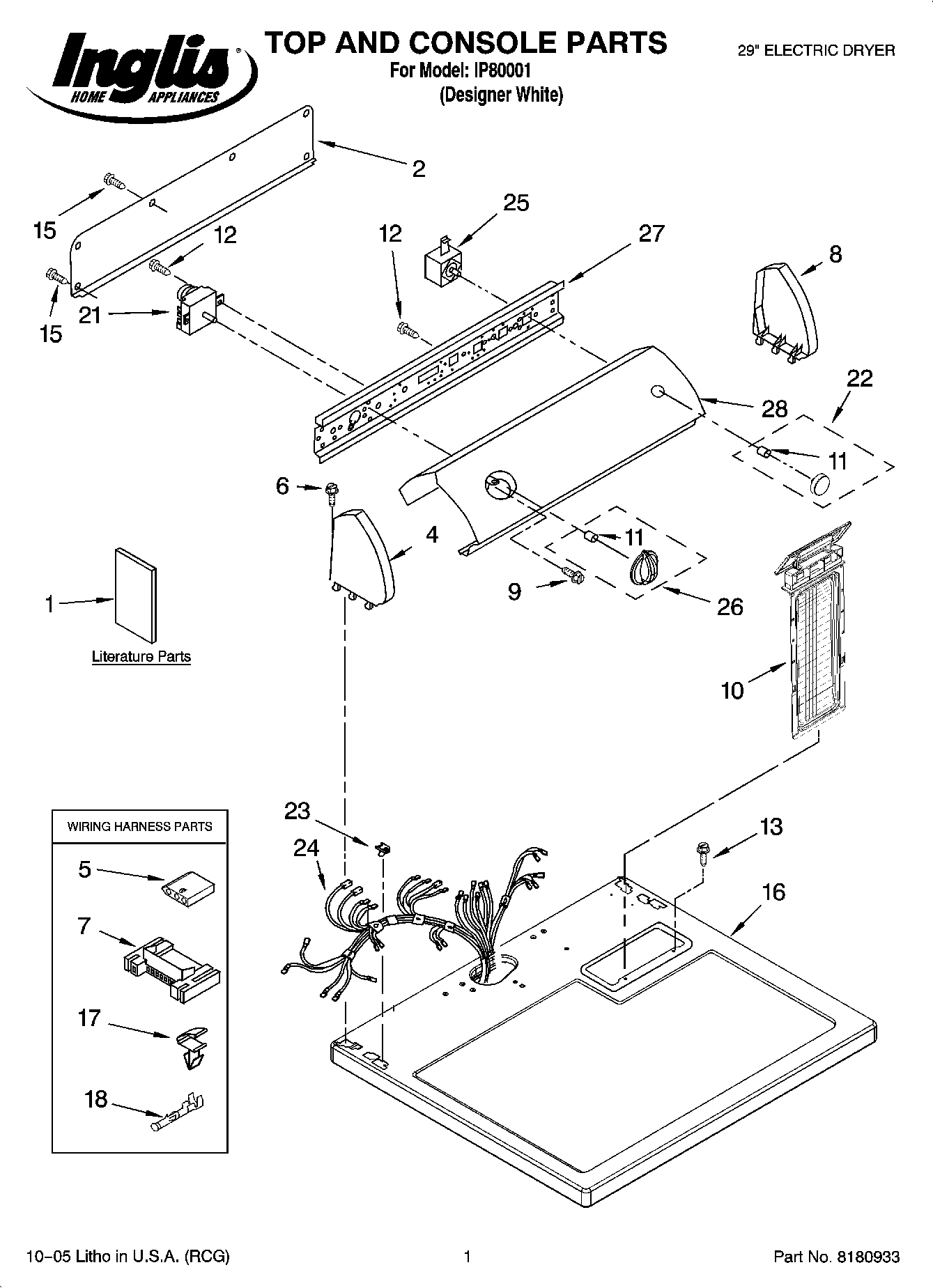

IP80001 01 – TOP AND CONSOLE PARTS

IP80001 01 – TOP AND CONSOLE PARTS

Written by

in

IP80001 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1Sheet, Cycle Feature
1Installation, Instruction
1WPL 677818
1Use & Care Guide
2W10103406 Whirlpool Rear Panel
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
93400859 Whirlpool Screw
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16Top
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
21WP8299778 Whirlpool Timer
22WP8544941 Whirlpool Knob
23WP357213 Whirlpool Hinge Stopper
24Harness, Wiring
25WP3977456 Whirlpool Start Switch
26Timer Knob Assembly
27Bracket, Control
28Panel, Control
