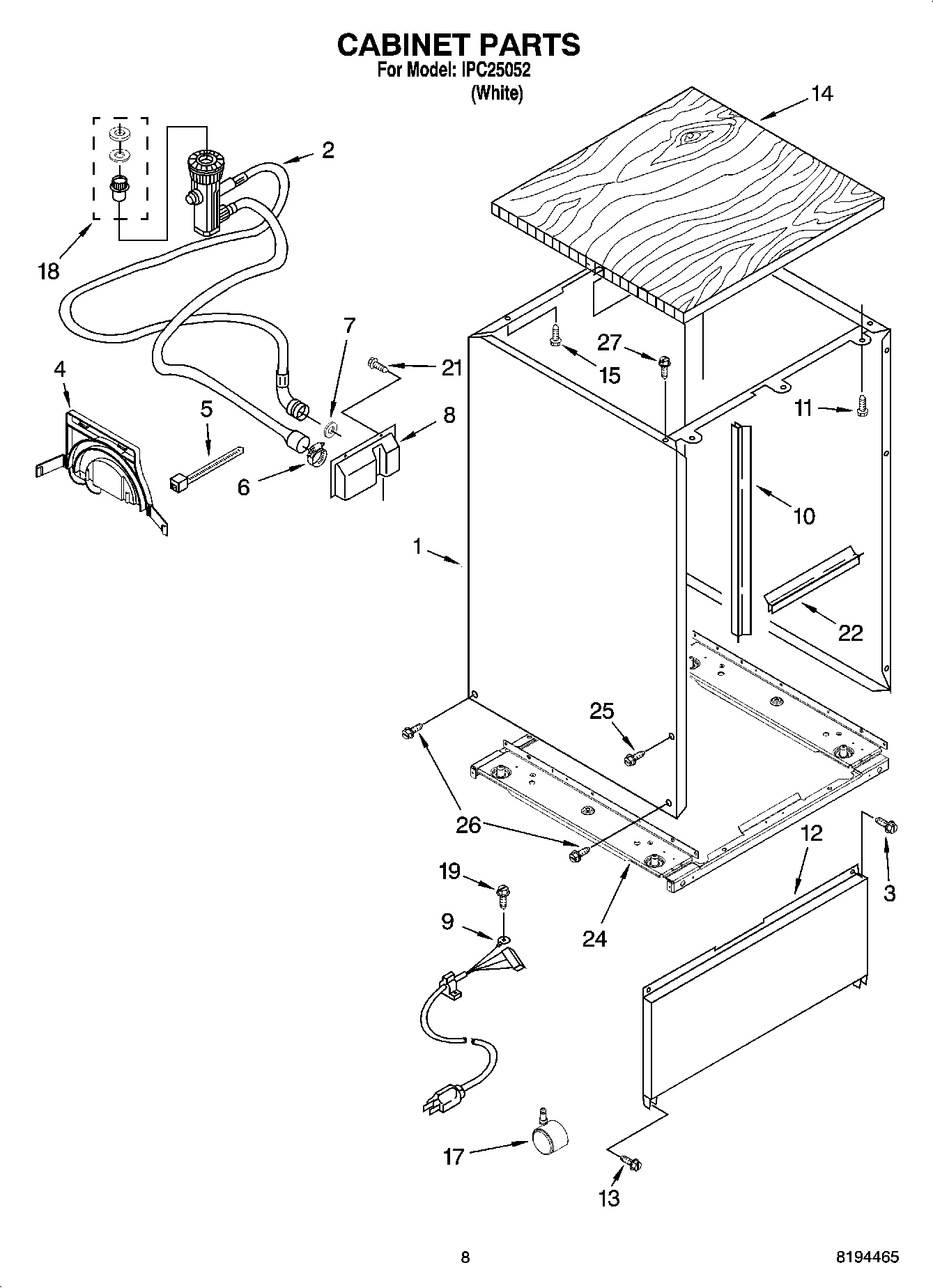

IPC25052 07 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)

IPC25052 07 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

IPC25052 07 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
CONVERSION KIT (Portable to Undercounter)
W10840471 Whirlpool Dishwasher Touch Up
Side Panel Kit (White)
Side Panel Kit: (Almond)
DOOR SPRING KIT: (HEAVY DUTY)
Conversion Kit (To Convert From Portable To Undercounter Installation)
AIR GAP KIT
White
DISHRACK REPAIR
ACCESSORY PARTS
WP300096 Whirlpool Dishwasher Air Gap
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
72032 Whirlpool Touch Up Paint Black
WP676455 Whirlpool Dishwasher Touch-Up
WP676453 Whirlpool Dishwasher Touch-Up
Enamel, Black (1 Qt. Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
1Shell Assembly (White)
2WPW10273574 Whirlpool Dishwasher Filter & DRNHOS
3WP302868 Whirlpool Screw
43378109 Whirlpool Dishwasher Cushion
5WPW10339879 Whirlpool Wire Tie
6WP3367052 Whirlpool Hose Clamp
7WP16123 Whirlpool Washer
8Housing, Hose
9W10831279 Whirlpool Dishwasher Power Cord
10Protector-Edge, Divider
11WP3373329 Whirlpool Dishwasher Screw
12Shroud, Caster
13Screw
14WP3373199 Whirlpool Dishwasher Top Panel
15SCREW
17WP8559933 Whirlpool Caster
18WPW10254672 Whirlpool Faucet Adapter
21SCREW
22Protector-Edge, Divider
24FRAME, ASSEMBLY
25Screw, 8-18 x 1/2
26Screw
27302251 Whirlpool Dishwasher Screw
