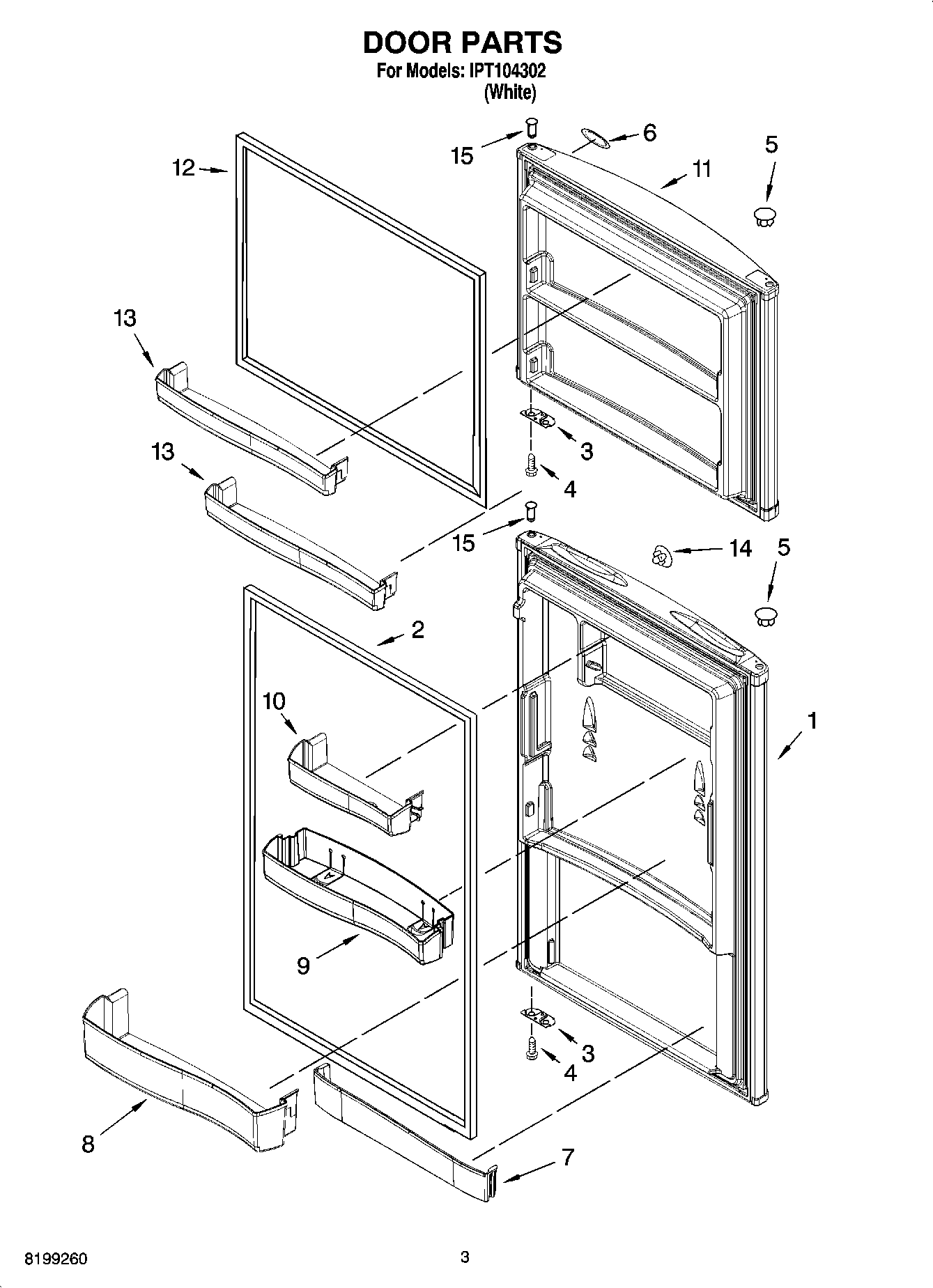

IPT104302 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 2,3,4 5 & 15) (White)
2	Gasket, Door (RC) (Mist Beige)
3	Bracket, Door Stop
4	WP488921 Whirlpool Refrigerator Screw
5	Hole Plug (White)
6	Nameplate
7	Trivet, Shelf (Bottom)
8	Trivet, Shelf (Middle)
9	Door Bin
10	Trivet, Shelf (Top)
11	Freezer Door (Includes Illus. 3,4,5 12 & 15) (White)
12	Gasket, Door (FC) (Mist Beige)
13	Trivet, Shelf (Freezer)
14	WP2189000 Whirlpool Refrigerator Handle Plug
15	Thimble
