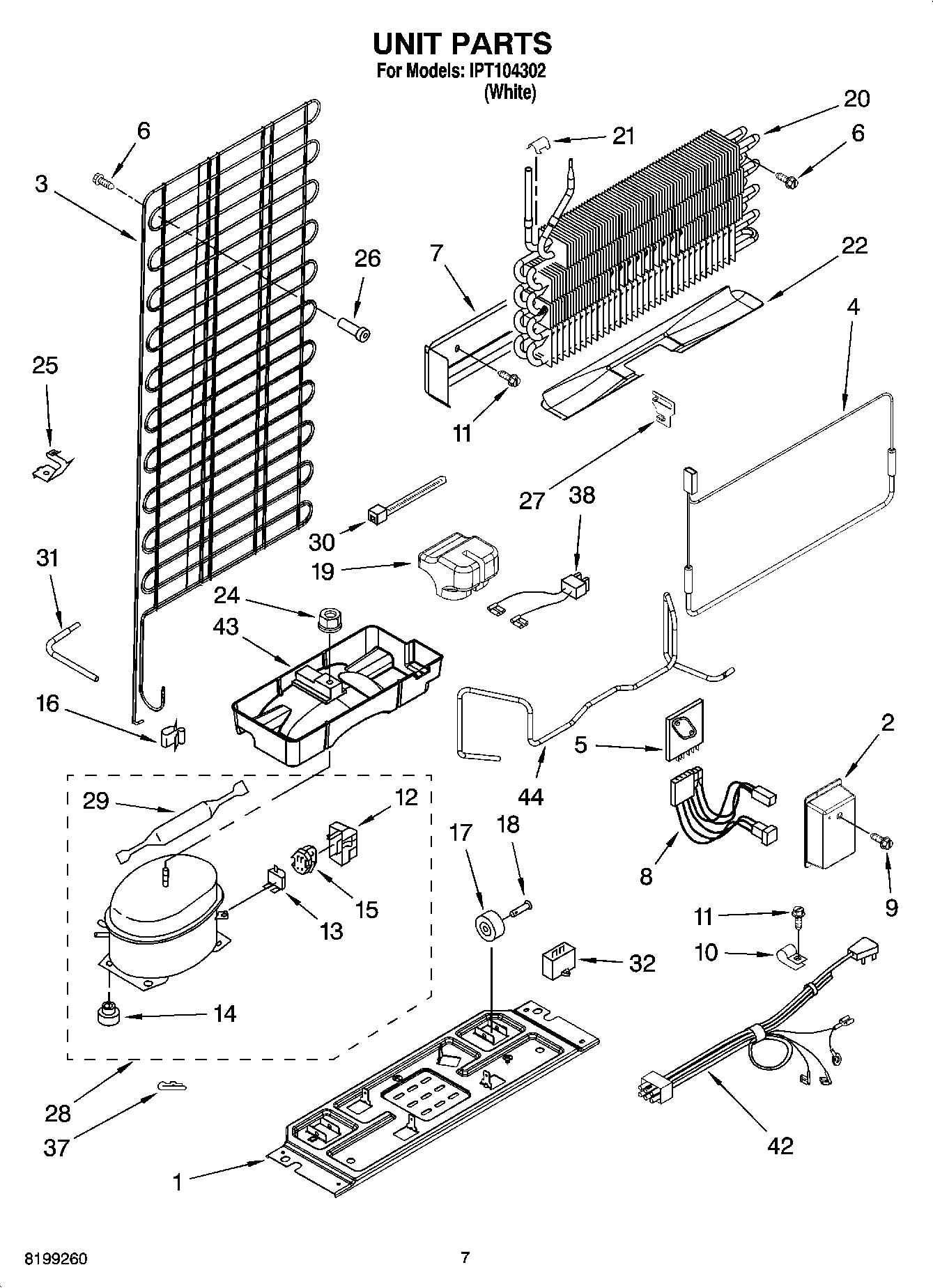

IPT104302 04 – UNIT PARTSadmin2025-04-26T11:33:04+00:00IPT104302 04 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | 2211011 Whirlpool Support |
| 2 | Cover, ADC |
| 3 | Condenser |
| 4 | WP2210895 Whirlpool Refrigerator Heater |
| 5 | 4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit |
| 6 | Screw |
| 7 | Heat Shield |
| 8 | Wire Assembly, ADC |
| 9 | WP487353 Whirlpool Refrigerator Screw |
| 10 | WP308605 Whirlpool Refrigerator Clamp |
| 11 | WP489442 Whirlpool Refrigerator Screw |
| 12 | WP2162358 Whirlpool Refrigerator Terminal Cover |
| 13 | 61004883 Whirlpool Refrigerator Overload |
| 14 | WP2163786 Whirlpool Refrigerator Grommet |
| 15 | W10920279 Whirlpool Refrigerator Start Relay |
| 15 | WP2262181 Whirlpool Refrigerator Start Relay |
| 16 | W10812038 Whirlpool Refrigerator Clip |
| 17 | WPW10475495 Whirlpool Roller Assembly |
| 18 | W11594405 Whirlpool Axle |
| 19 | Wedge, Evaporator |
| 20 | Evaporator Assy. |
| 21 | 9791833 Whirlpool Refrigerator Clip |
| 22 | 2265095 Whirlpool Refrigerator Drip Pan |
| 24 | 285002 Whirlpool Nut |
| 25 | 4386951 Whirlpool Refrigerator Clip |
| 26 | 2258451 Whirlpool Spacer |
| 27 | 2211075 Whirlpool Bracket |
| 28 | Compressor (Includes Illus. 12,13,14 15 & 29) |
| 29 | W10843121 Whirlpool Refrigerator Tube |
| 30 | WPW10339879 Whirlpool Wire Tie |
| 31 | Tube, Process |
| 32 | WPW10662129 Whirlpool Refrigerator Run Capacitor |
| 37 | Clip, Compressor |
| 38 | WP2172890 Whirlpool Refrigerator Wire |
| 42 | Wire Assy. Unit |
| 43 | Evaporator Tray |
| 44 | Tube, Discharge |
| 44 | Following Parts Not Illustrated and Optional Parts Not Included |
| 44 | 978030 Whirlpool Refrigerator Valve |
| 44 | 876764 Whirlpool Refrigerator Primary Valve |
| 44 | 978026 Whirlpool Refrigerator Primary Valve |
| 44 | 978027 Whirlpool Refrigerator Primary Valve |
| 44 | WP978025 Whirlpool Refrigerator Valve |
| 44 | VALVE, ACCESS (1/2``) |
| 44 | VALVE, ACCESS (5/8``) |
| 44 | REFRIGERANT CHARGE 3.00 Ozs. (R134A) |
