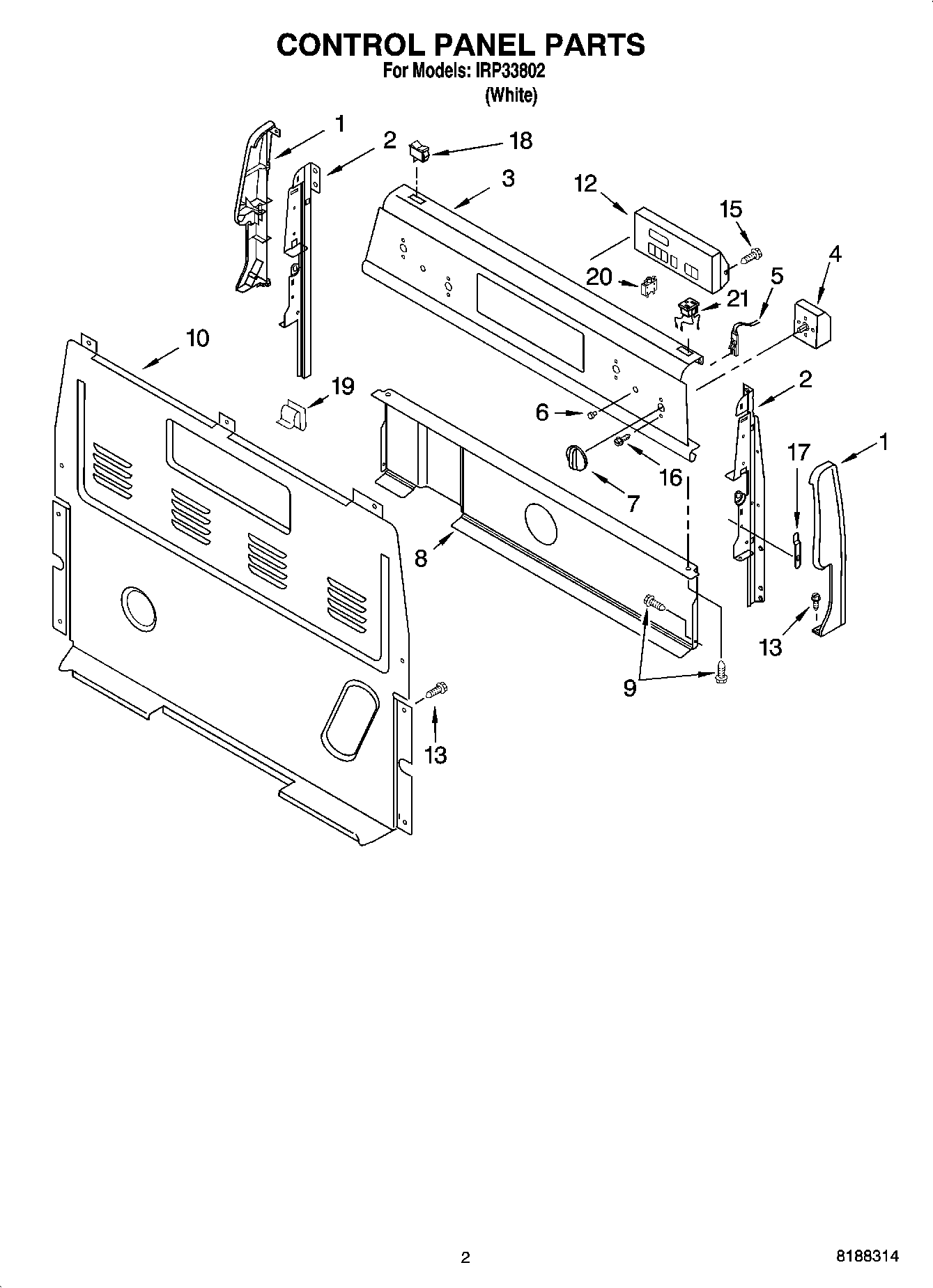

IRP33802 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard
4	WP3148952 Whirlpool Oven Infinite Switch
4	WP3149400 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP8522565 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
12	Control, Range
13	SCREW
15	WP3196174 Whirlpool Screw
16	WP3400882 Whirlpool Screw
17	3196200 Whirlpool Clip
18	3149360 Whirlpool Light Switch
19	WP8273564 Whirlpool Clip
20	WP9757601 Whirlpool Breaker
21	Receptacle (2)
