IRP33802 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

IRP33802 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

IRP33802 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI77124A2
3184020 Whirlpool Oven Wire
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI77125A4
WPL ARI77123A9
WPL ARI77122A8
WPL ARI77121A4
WPL ARI77120A6
WPL 9761462
WPL 9758297
WPL 9758180
WPL 9756779
WPL 9756350
242831 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL 799832
Wire, 25` Roll (Red 14 Ga.)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
4392899 Whirlpool Biscuit Touch-Up Paint
W11447673 Whirlpool Range Tip Anchor
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White

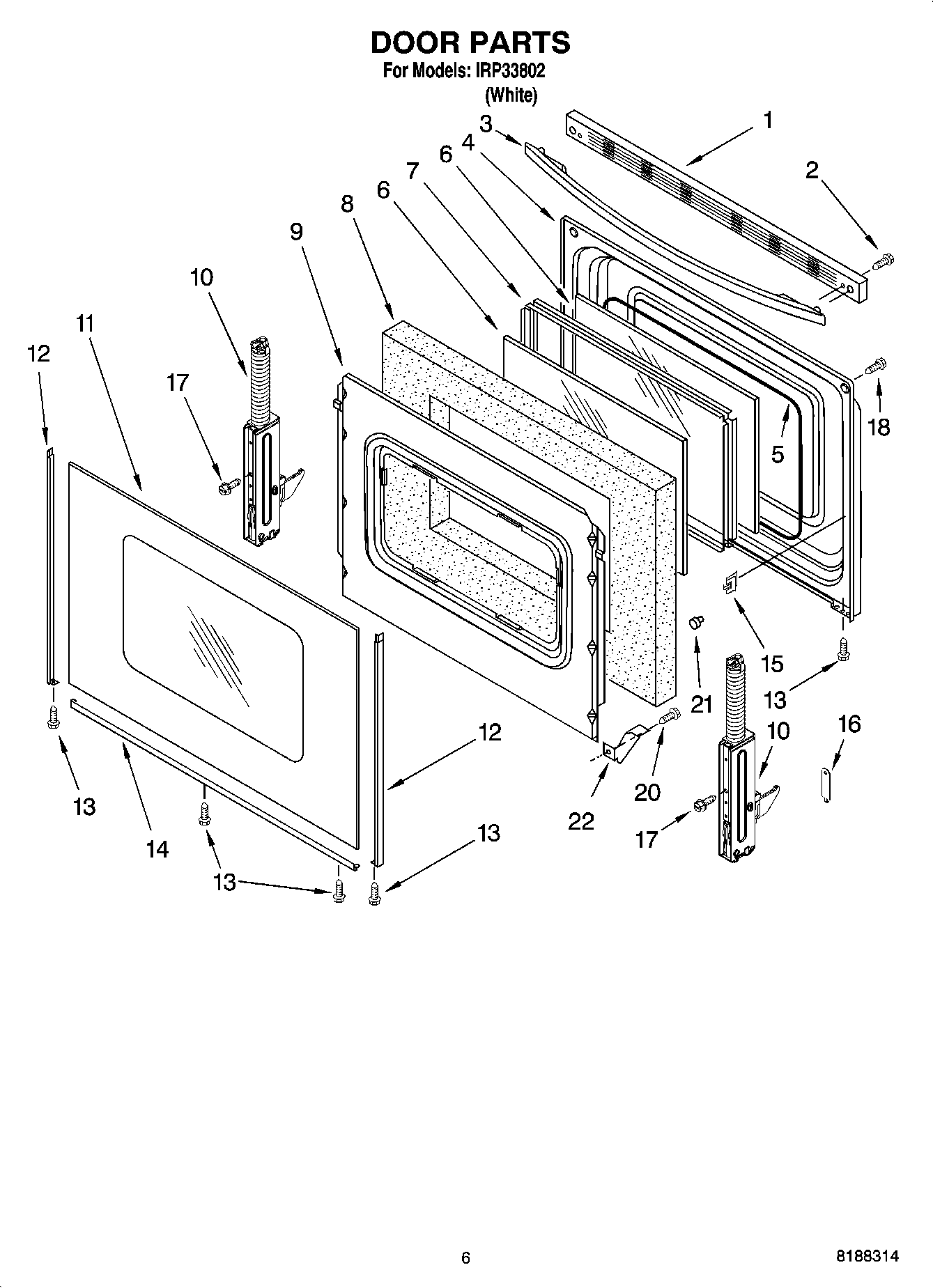

350930 Whirlpool White Spray Paint
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
11WP8053834 Whirlpool Door Glass
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
15Clip, Glass (4)
169761517 Whirlpool Oven Clip Assembly
17WPW10031790 Whirlpool Screw
18W10777162 Whirlpool Screw
20WP3196175 Whirlpool Screw
21238614 Whirlpool Bumper Hinge
22WP3196794 Whirlpool Glass Bracket
