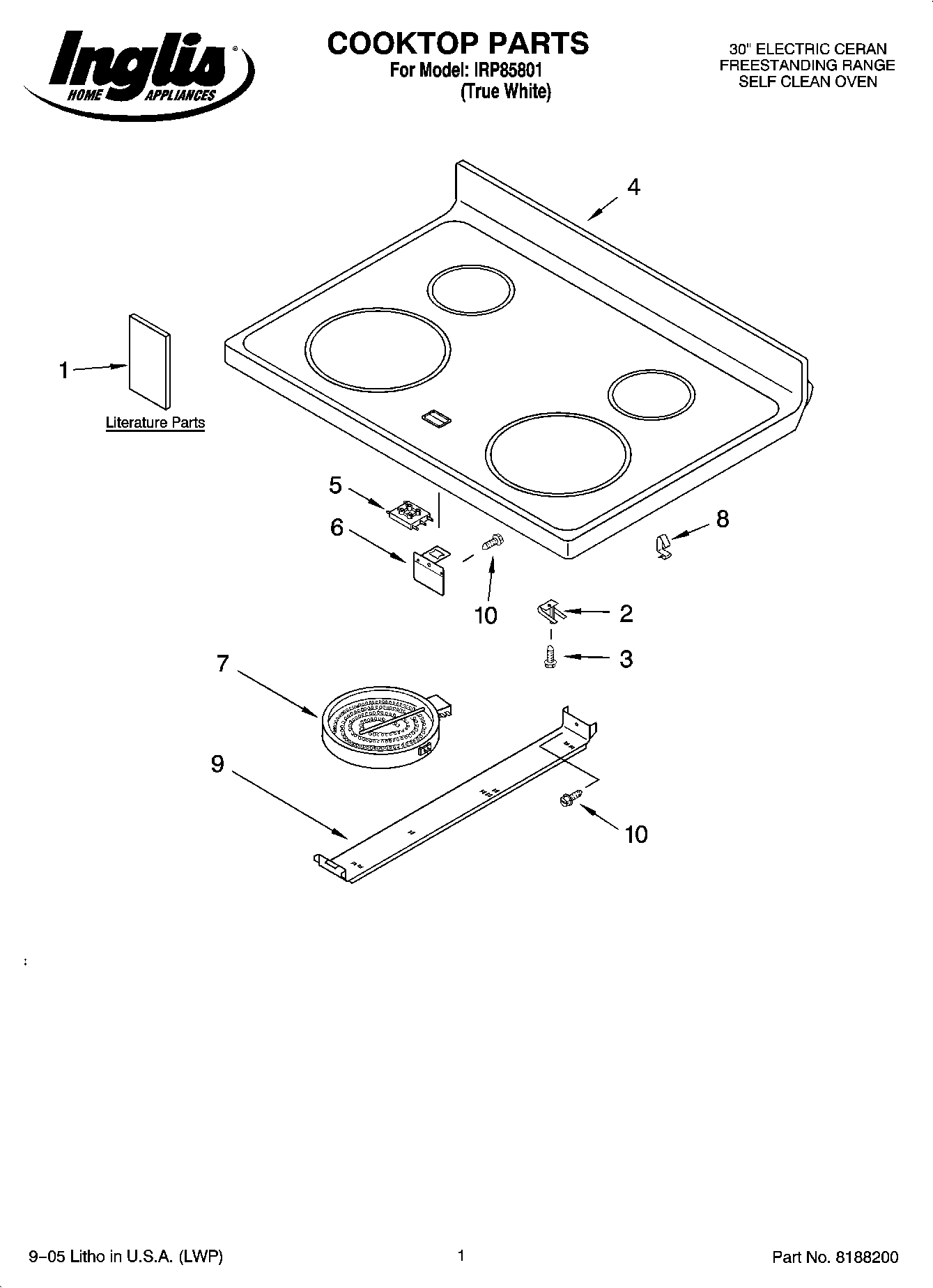

IRP85801 01 – COOKTOP PARTS

Products

Position	Product
1	Anti-Tip Template (English/Spanish)
1	Anti-Tip Template (English/French)
1	Owner`s Manual
1	Tech Sheet
1	Installation Instructions Template, Anti-Tip
2	Spring, Locator
3	WP3196170 Whirlpool Screw
4	Cooktop (White (Q Model))
5	Light, Indicator (Hot Surface)
6	Bracket, Ind Light
7	W10823711 Whirlpool Surface Element Left Front and Right Rear
7	W10823698 Whirlpool Surface Element Right Rear
7	W10823692 Whirlpool Dual Radiant Element
8	Clip – Mounting
9	Bracket, Element
10	WP3196557 Whirlpool Screw
