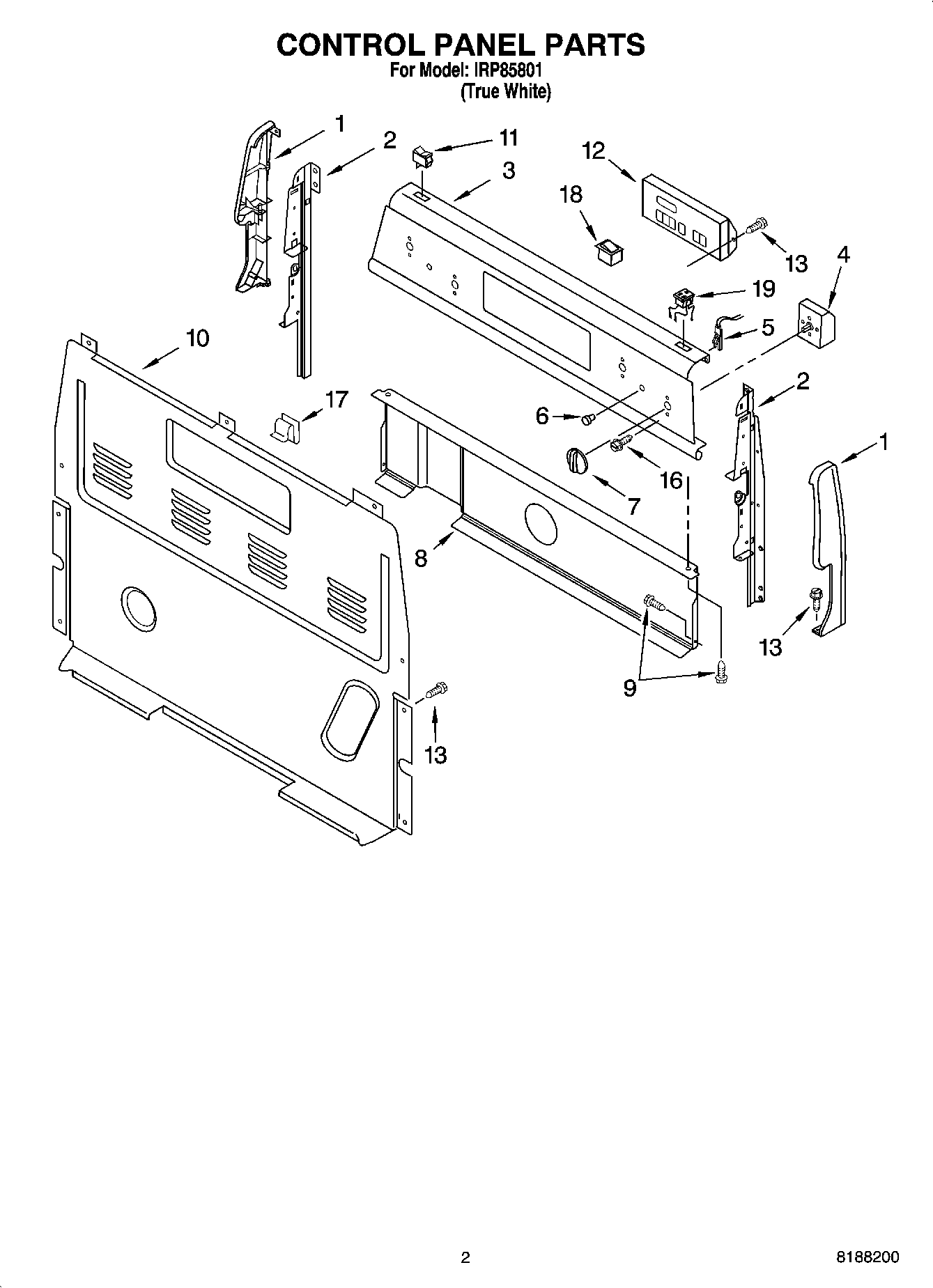

IRP85801 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
4WP9761048 Whirlpool Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
113149360 Whirlpool Light Switch
12Control, Range
13SCREW
16WP3400882 Whirlpool Screw
17WP8273564 Whirlpool Clip
18WP9757601 Whirlpool Breaker
19Receptacle (2)
