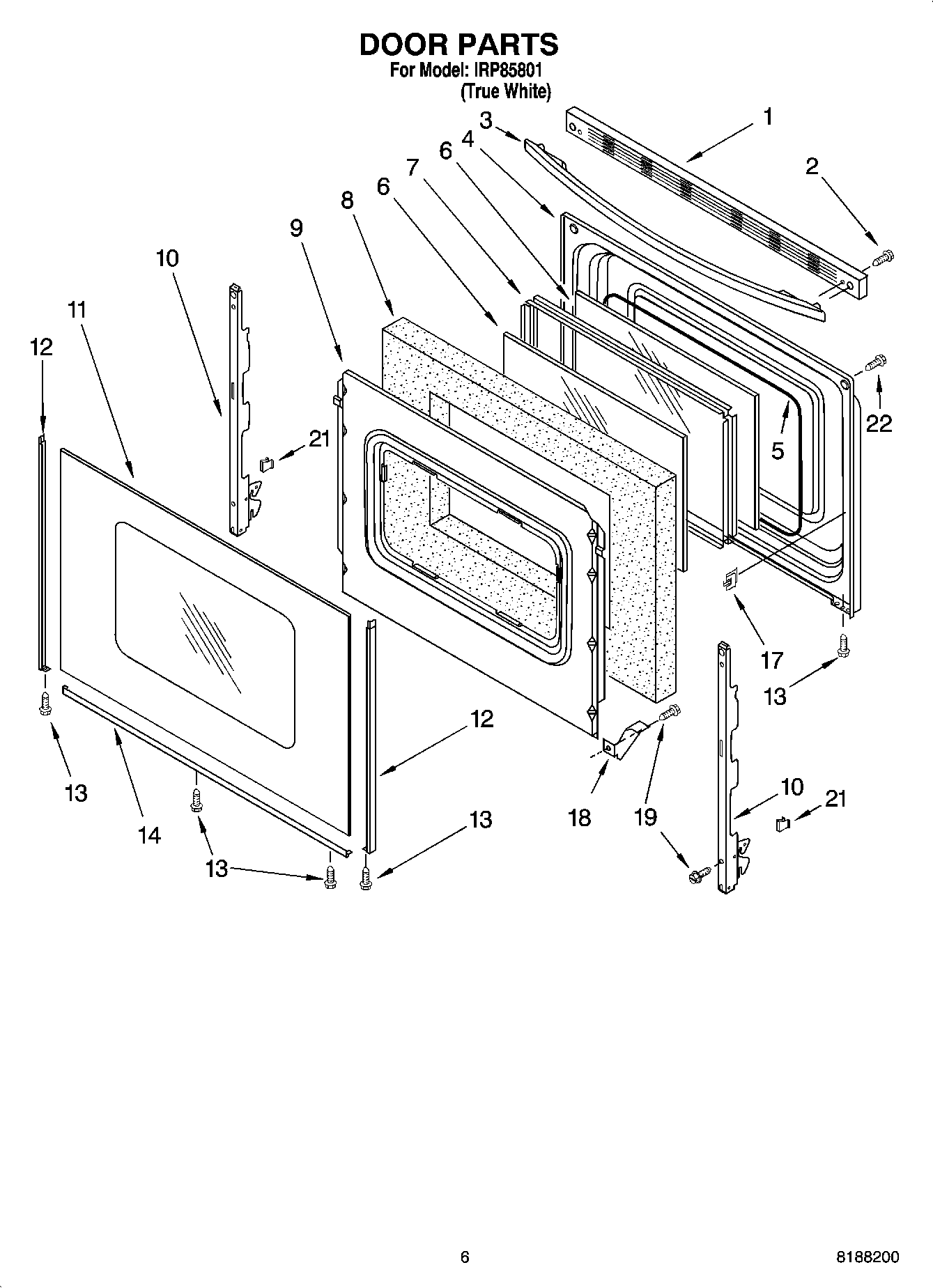

IRP85801 05 – DOOR PARTS, OPTIONAL PARTS

IRP85801 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

IRP85801 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI152969A
	WPL 8524132
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WPL ARI152970A
	WPL 9756350
	WPL ARI152968A
	WPL ARI152967A
	WPL ARI152966A
	WPL ARI152965A
	WPL ARI152964A
	WPL ARI152963A
	WPL 9761471
	WPL 9761460
	WPL 9758703
	WPL 9758180
	WPL 9756779
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Wire, 25` Roll (Red 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WP3196154 Whirlpool Screw Assembly
	W11447673 Whirlpool Range Tip Anchor
	814381 Whirlpool Pin
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP8053834 Whirlpool Door Glass
12	WP8523172 Whirlpool Left Door Trim
12	WP8523166 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
17	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP3196175 Whirlpool Screw
21	WP3196925 Whirlpool Clip Assembly
22	WP179051 Whirlpool Screw
