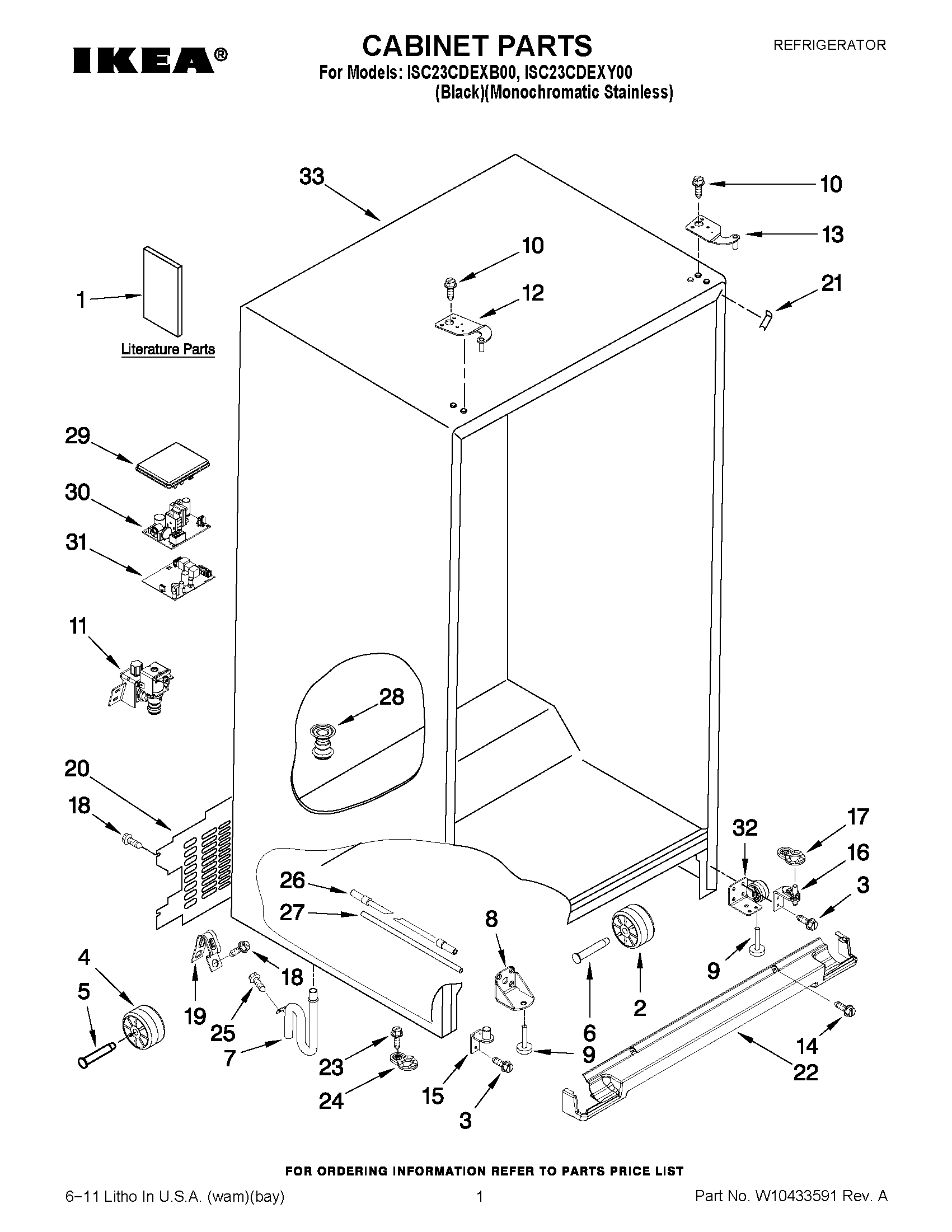

ISC23CDEXB00 01 – CABINET PARTSadmin2025-04-26T11:27:41+00:00ISC23CDEXB00 01 – CABINET PARTS ProductsPositionProduct1ENERGY LABEL1USE & CARE GUIDE1SERVICE & WIRING SHEET2WPW10475495 Whirlpool Roller Assembly3WPW10297485 Whirlpool Refrigerator Screw4WP67005149 Whirlpool Roller567006434 Whirlpool Axle Pin6WPW10285005 Whirlpool Refrigerator Rivet7W10280082 Whirlpool Extension9WPW10141622 Whirlpool Leveler10WPW10308750 Whirlpool Refrigerator Screw11VALVE-INLT REFR12W10901052 Whirlpool Refrigerator Door Hinge12W11590581 Whirlpool Refrigerator Door Hinge13HINGE-DOOR13W11568758 Whirlpool Top Hinge14WPW10142283 Whirlpool Refrigerator Screw15W10249941 Whirlpool Refrigerator Door Hinge15W11293374 Whirlpool Refrigerator Door Hinge17W10500001 Whirlpool Refrigerator Door Hinge17W10500004 Whirlpool Refrigerator Door Hinge18SCREW19549193 Whirlpool Refrigerator Power Clamp20COVER, UNIT2167003485 Whirlpool Refrigerator Corner Cover (Black)21WP12587703AP Whirlpool Refrigerator Filler22WPW10713153 Whirlpool Refrigerator Grille22WPW10713158 Whirlpool Refrigerator Grille23WP489483 Whirlpool Screw24W10876191 Whirlpool Refrigerator Door Cam24W10876198 Whirlpool Refrigerator Door Cam25WP489464 Whirlpool Refrigerator Screw26WPW10279882 Whirlpool Water Line27WPW10279884 Whirlpool Water Tube28W10247979 Whirlpool Refrigerator Fitting29LID, HV BOX30WPW10235414-includeCORE Whirlpool WPW10235414 Refrigerator Electronic Control Board + Core31WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core32W11266052 Whirlpool Refrigerator Bracket33CABINET (NOT A SERVICEABLE PART)
