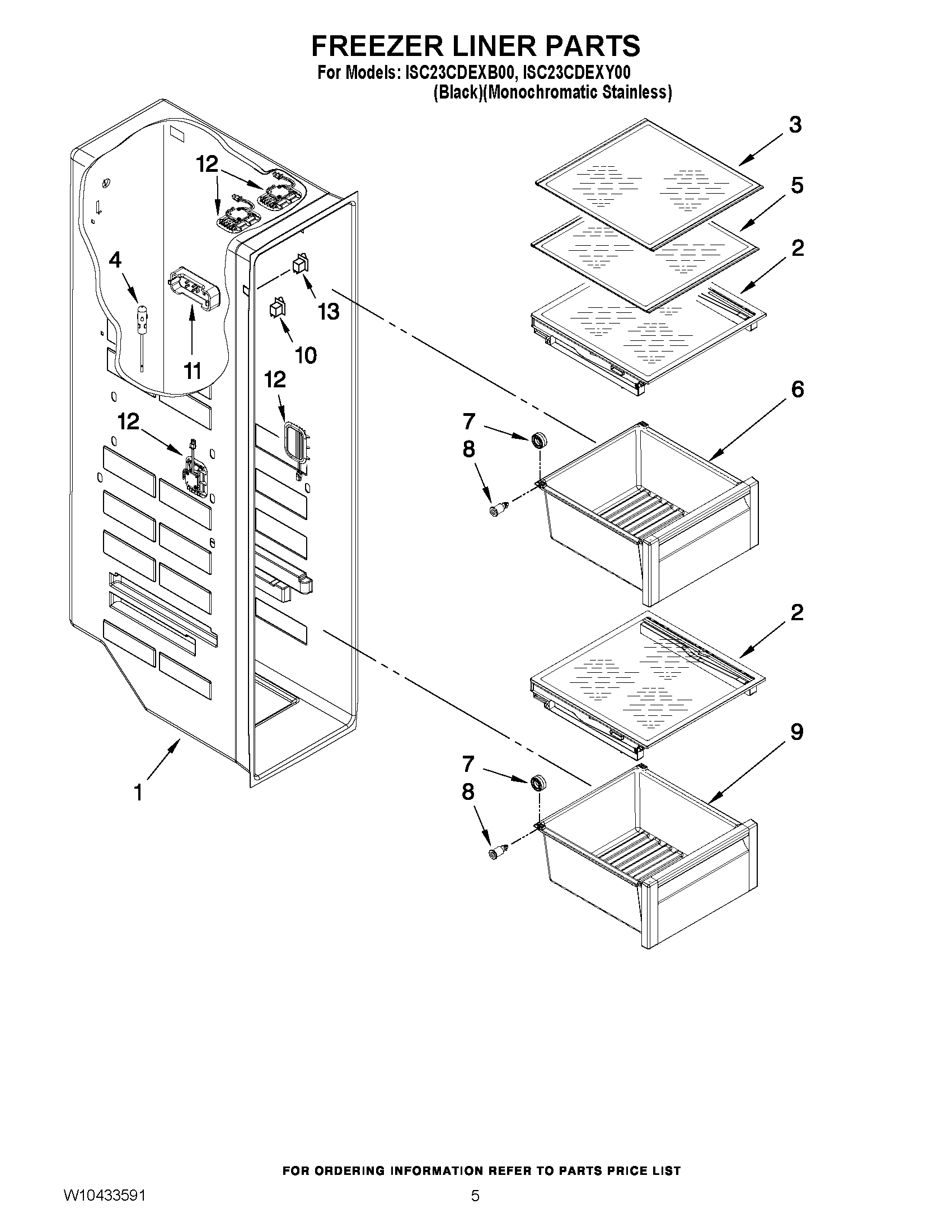

ISC23CDEXB00 04 – FREEZER LINER PARTS

ISC23CDEXB00 04 – FREEZER LINER PARTS

Written by

in

ISC23CDEXB00 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10290890 Whirlpool Refrigerator Cover
3WPW10393383 Whirlpool Refrigerator Glass Shelf
4THERMISTOR
5WPW10393382 Whirlpool Refrigerator Glass Shelf
6W10322533 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8WPW10257246 Whirlpool Refrigerator Axle
9PAN, FREEZER LOWER ALSO ORDER 7 & 8
10W11457217 Whirlpool Refrigerator Rocker Switch Combination
11COVER, THERMISTOR
12MODULE
13W11123943 Whirlpool Refrigerator Switch
