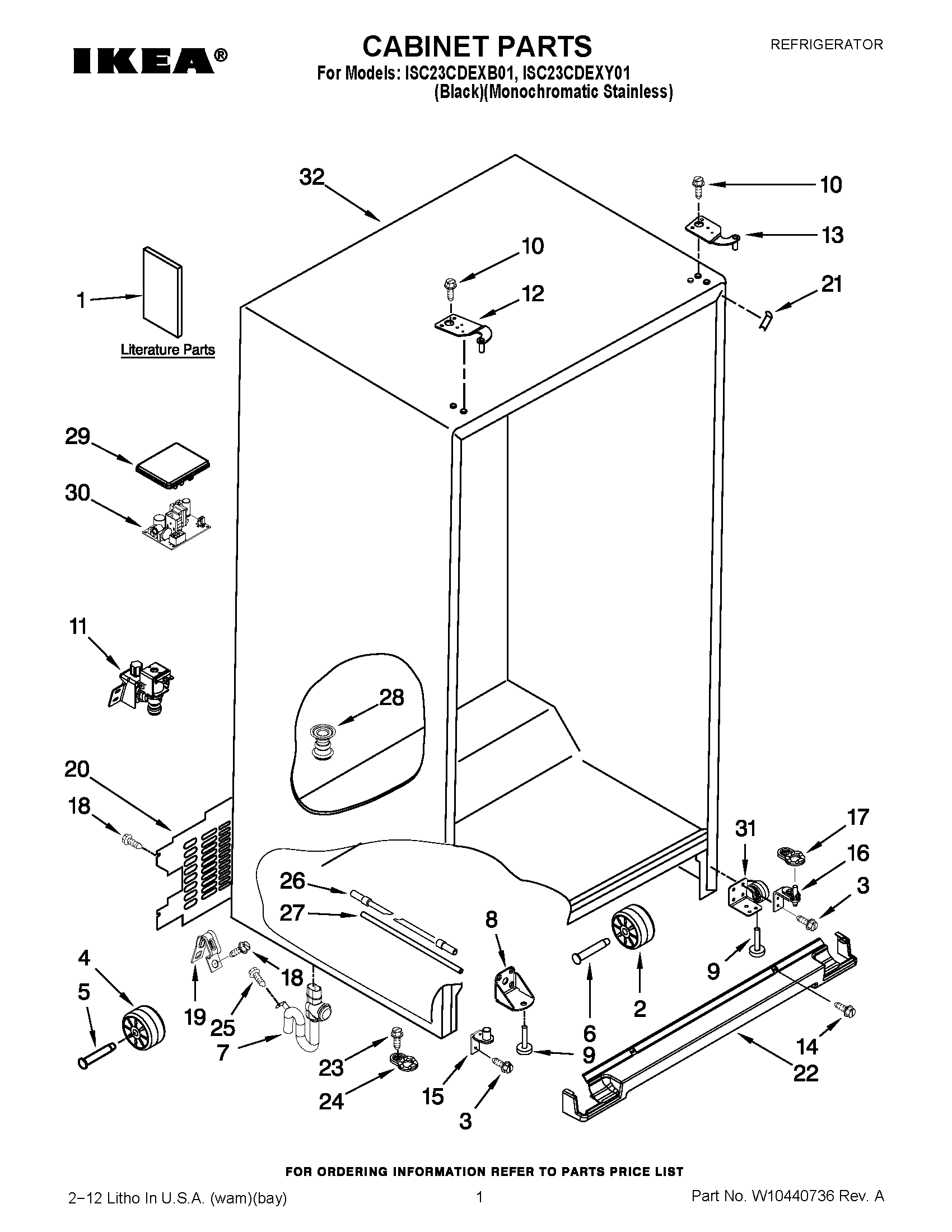

ISC23CDEXB01 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
1	ENERGY LABEL
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	WPW10285005 Whirlpool Refrigerator Rivet
7	W10379525 Whirlpool Refrigerator Extension
9	WPW10141622 Whirlpool Leveler
10	WPW10308750 Whirlpool Refrigerator Screw
11	VALVE-INLT REFR
12	W11590581 Whirlpool Refrigerator Door Hinge
12	W10901052 Whirlpool Refrigerator Door Hinge
13	W11568758 Whirlpool Top Hinge
13	HINGE-DOOR
14	WPW10142283 Whirlpool Refrigerator Screw
14	WPW10308489 Whirlpool Refrigerator Screw
15	W10249941 Whirlpool Refrigerator Door Hinge
15	W11293374 Whirlpool Refrigerator Door Hinge
17	W10500004 Whirlpool Refrigerator Door Hinge
17	W10500001 Whirlpool Refrigerator Door Hinge
18	SCREW
19	549193 Whirlpool Refrigerator Power Clamp
20	COVER, UNIT
21	67003485 Whirlpool Refrigerator Corner Cover (Black)
21	WP12587703AP Whirlpool Refrigerator Filler
22	WPW10713153 Whirlpool Refrigerator Grille
22	WPW10713158 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10876191 Whirlpool Refrigerator Door Cam
24	W10876198 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279884 Whirlpool Water Tube
28	W10370680 Whirlpool Refrigerator Fitting
29	LID, HV BOX
30	W11088499-includeCORE Whirlpool W11088499 Refrigerator Electric Control Board with Core
31	W11266052 Whirlpool Refrigerator Bracket
32	CABINET (NOT A SERVICEABLE PART)
