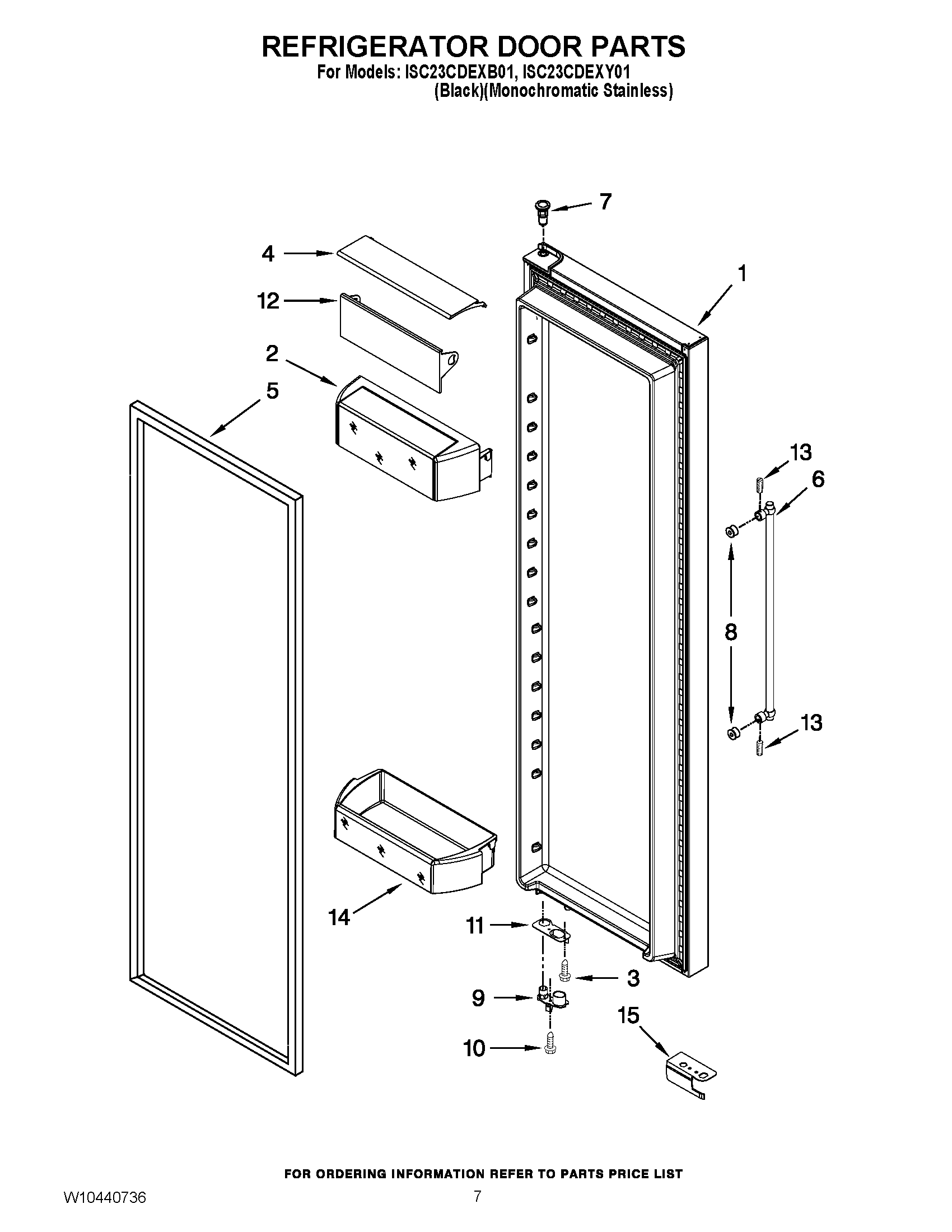

ISC23CDEXB01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STAINLESS)
1	LW10428004 Whirlpool Refrigerator Black Foam In Place Door
2	WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3	SCREW
4	WPW10316883 Whirlpool Refrigerator Door Compressor
5	WPW10249912 Whirlpool Refrigerator FIP Gasket
5	W10355582 Whirlpool Refrigerator Door Gasket
6	HANDLE
7	WP2182181 Whirlpool Refrigerator Thimble
8	WPW10170540 Whirlpool Screw
9	WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
9	WPW10257201 Whirlpool Door Closing Cam
10	WPW10296804 Whirlpool Refrigerator Screw
11	W11037957 Whirlpool Refrigerator Bracket
12	WPW10316885 Whirlpool Refrigerator Compressor Door
13	SCREW
14	WPW10335220 Whirlpool Refrigerator Cantilever Bin
15	W11661847 Whirlpool Wire Cover
15	W10257216 Whirlpool Refrigerator Wire Cover
