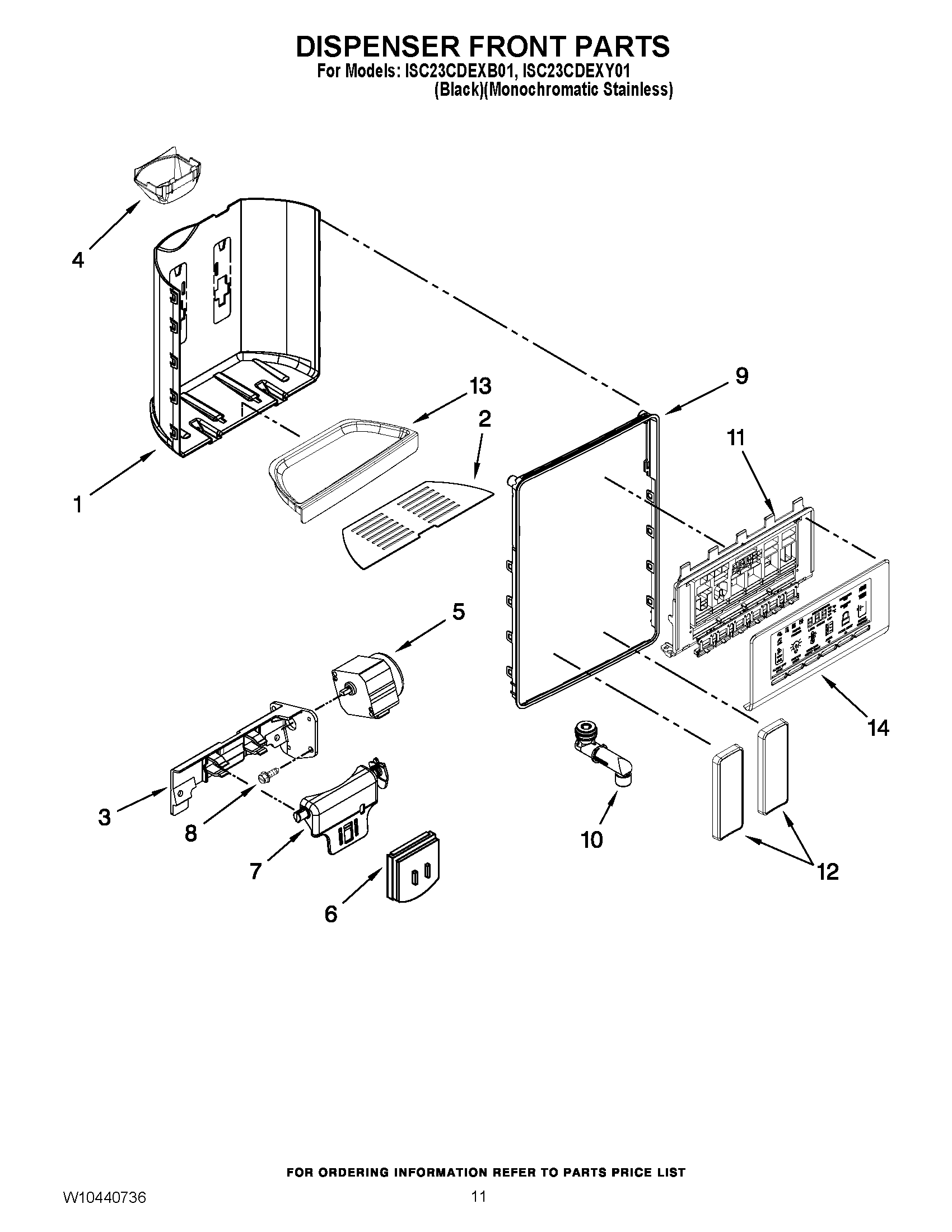

ISC23CDEXB01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10276197 Whirlpool Refrigerator Grille
3	W10174827 Whirlpool Refrigerator Bracket
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	WPW10493172 Whirlpool Refrigerator Ice Door
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	TRIM RING (BLACK)
10	WP2305235 Whirlpool Refrigerator Spigot
11	WPW10441688-includeCORE Whirlpool WPW10441688 Refrigerator Electronic Control Board + Core
12	WPW10370592 Whirlpool Refrigerator Pad
13	W10276194 Whirlpool Refrigerator Drip Tray
14	W10276229 Whirlpool Refrigerator Escutcheon
