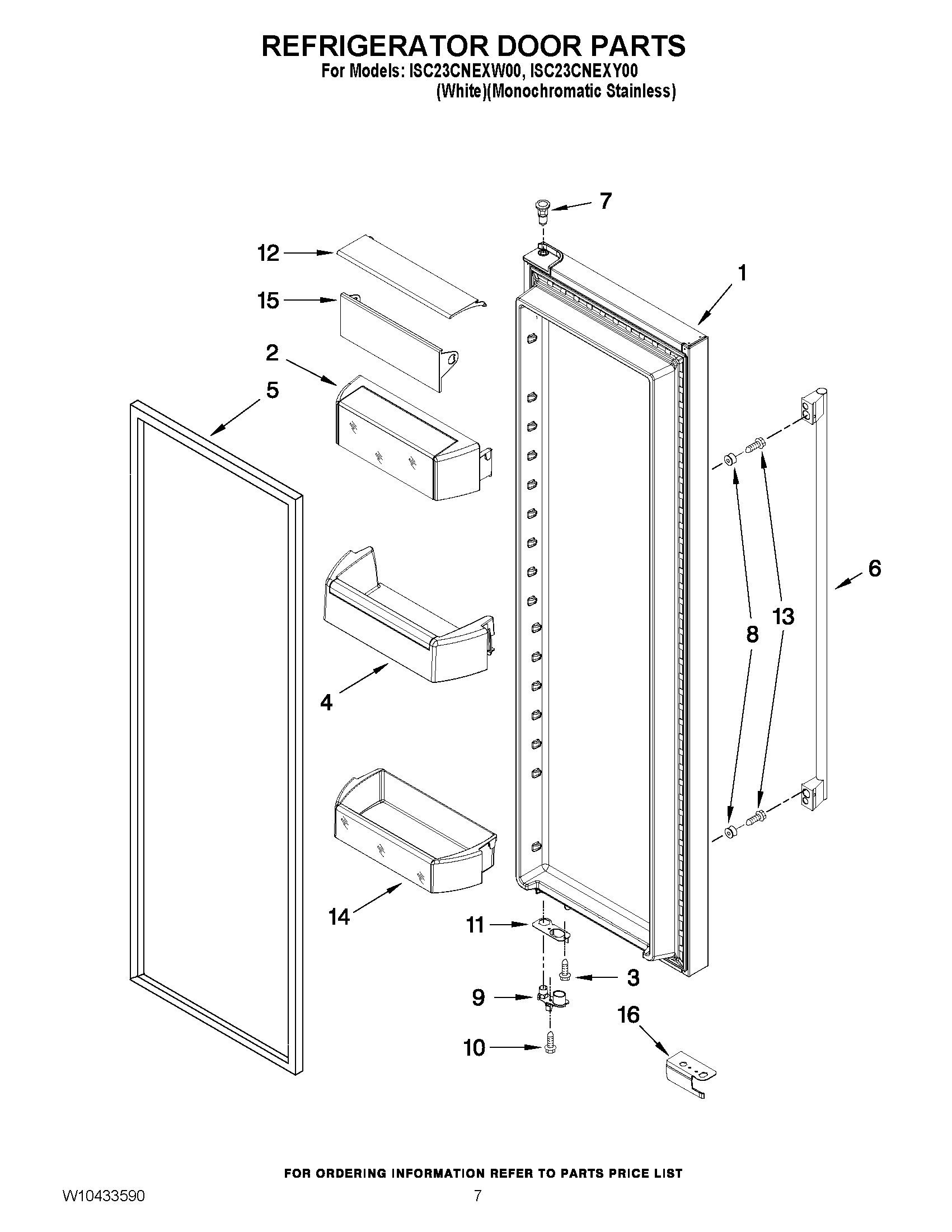

ISC23CNEXW00 06 – REFRIGERATOR DOOR PARTS

ISC23CNEXW00 06 – REFRIGERATOR DOOR PARTS

Written by

in

ISC23CNEXW00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
2DOOR COMPARTMENT ASSEMBLY
3SCREW
4DOOR BIN, SHALLOW
5WPW10247884 Whirlpool Refrigerator FIP Gasket
5W10355582 Whirlpool Refrigerator Door Gasket
6WPW10202821 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10170540 Whirlpool Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WPW10316883 Whirlpool Refrigerator Door Compressor
13SCREW
14WPW10335220 Whirlpool Refrigerator Cantilever Bin
15WINDOW, DOOR COMPARTMENT
16W11661847 Whirlpool Wire Cover
16W10789144 Whirlpool Refrigerator Wire Cover
