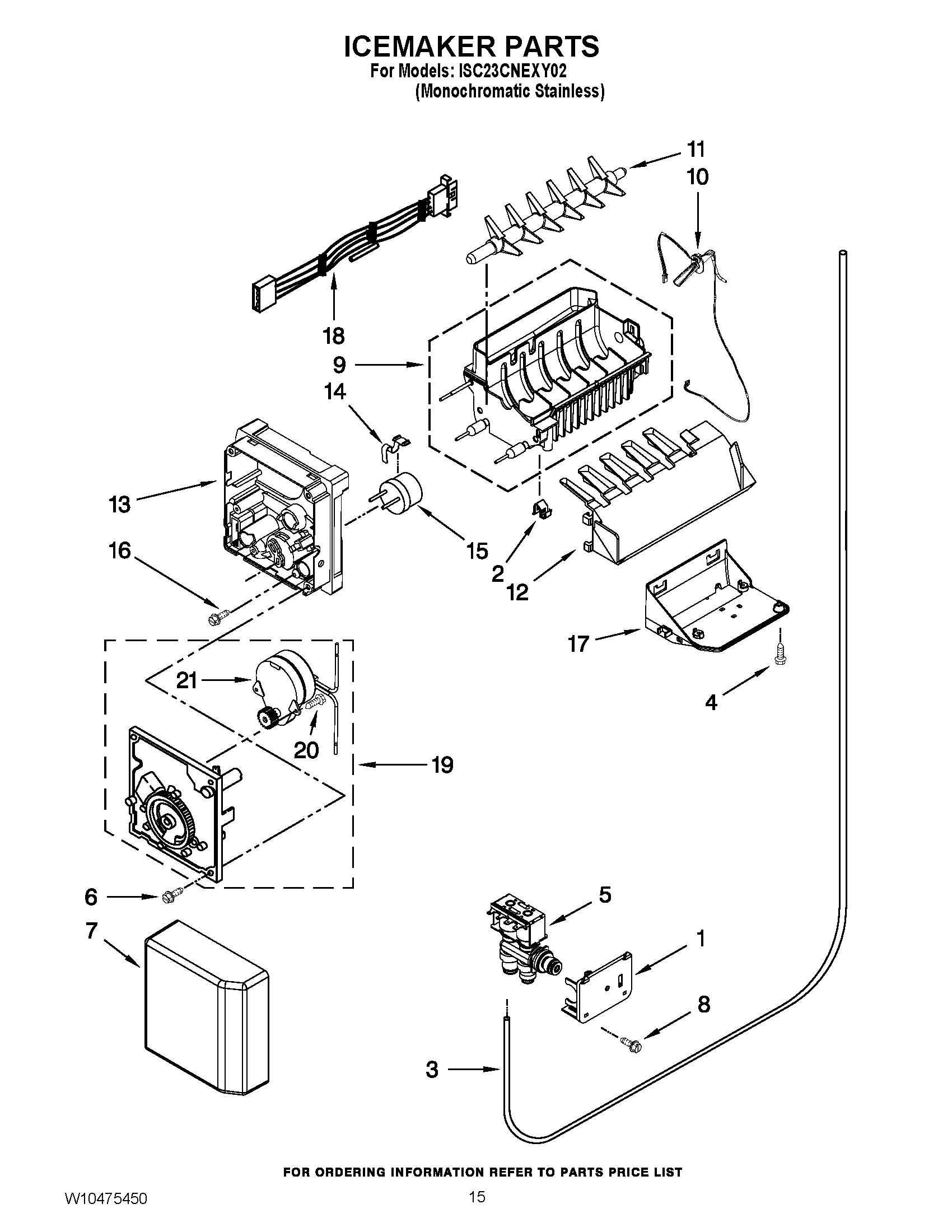

ISC23CNEXY02 10 – ICEMAKER PARTSadmin2025-04-26T11:27:56+00:00ISC23CNEXY02 10 – ICEMAKER PARTS ProductsPositionProduct1W10847867 Whirlpool Refrigerator Bracket2WP628379 Whirlpool Refrigerator Clip3WPW10238092 Whirlpool Refrigerator Water Tube4WP489478 Whirlpool Refrigerator Screw5WPW10258562 Whirlpool Refrigerator Inlet Valve6W10001240 Whirlpool Refrigerator Screw7COVER8WPW10141625 Whirlpool Refrigerator Screw Assembly9MOLD & HEATER ASSEMBLY (ALSO ORDER 54263810FILL TUBE ASSY.11W10318644 Whirlpool Refrigerator Ejector Arm12W10747731 Whirlpool Refrigerator Arm Stripper13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly168533917 Whirlpool Refrigerator Screw17W10251080 Whirlpool Refrigerator Bracket18W10242384 Whirlpool Refrigerator Wire Harness198201515 Whirlpool Refrigerator Motor and Gear Module Kit20489136 Whirlpool Refrigerator Screw21CABINET (NOT A SERVICEABLE PART)100WPW10251076 Whirlpool Icemaker Assembly
