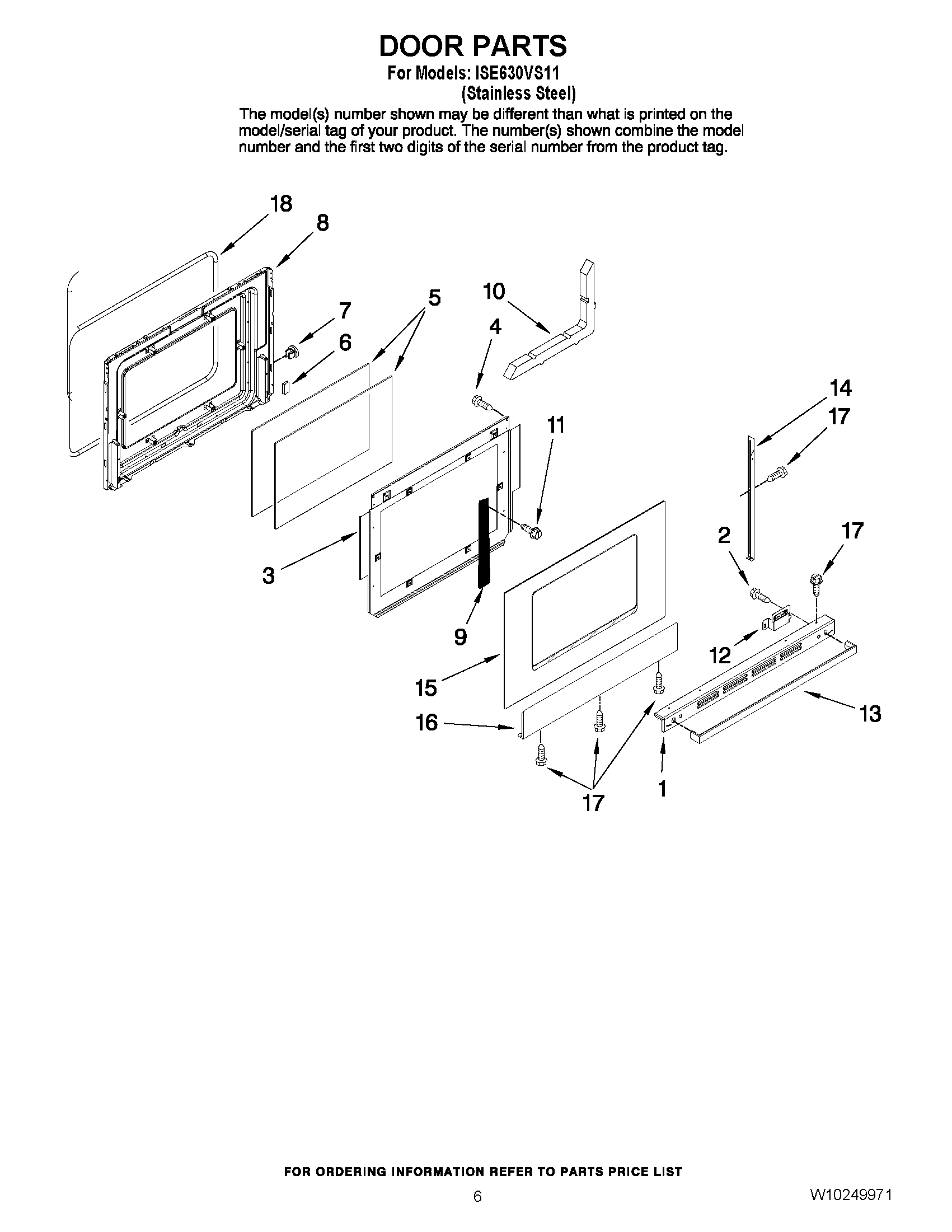

ISE630VS11 05 – DOOR PARTS

ISE630VS11 05 – DOOR PARTS

Written by

in

ISE630VS11 05 – DOOR PARTS

Products

PositionProduct
1Trim, Door Top
2WP74006515 Whirlpool Washer Screw
3Baffle, Retainer
4SCREW
5Glass, Inner (2)
6WP74005546 Whirlpool RU Spacer
7WP74001574 Whirlpool Snap Nut
8Lining, Door
93801F886-51 Whirlpool Mounting Bracket
10Insulation, Door
11WP90767 Whirlpool Screw
123801F832-45 Whirlpool Bracket
123801F831-45 Whirlpool Bracket Assembly
13Handle,Storage Dwr
14WP3608F116-70 Whirlpool Door Trim
14WP3608F117-70 Whirlpool Door Trim
15Glass, Door
16Panel, Oven Door (Bottom)
17CABINET (NOT A SERVICEABLE PART)
18GASKT-DOOR OVEN
