ISF25D2XBM00 12 – ICE MAKER

ISF25D2XBM00 12 – ICE MAKER

Written by

in

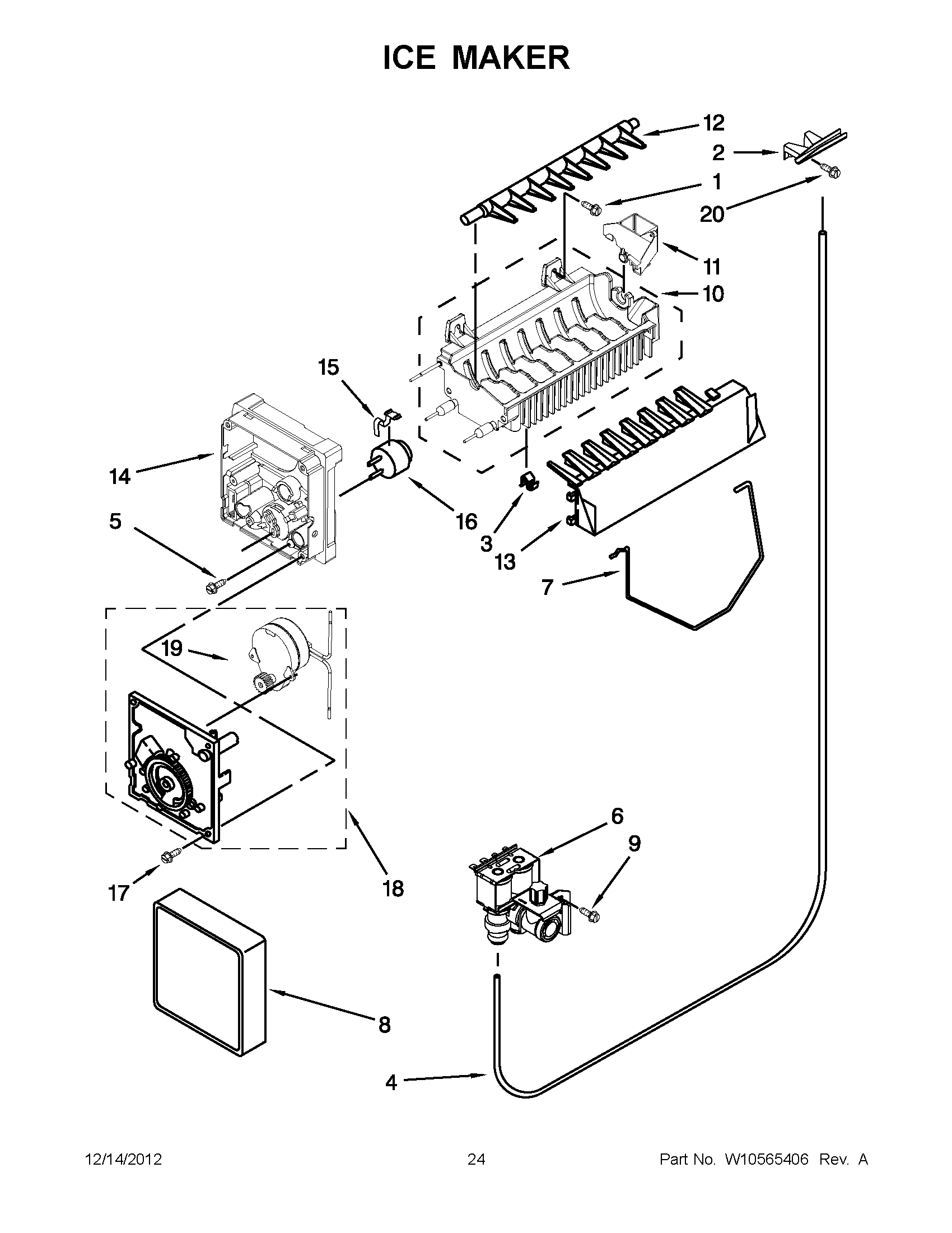

ISF25D2XBM00 12 – ICE MAKER

Products

PositionProduct
1WP488163 Whirlpool Refrigerator Screw
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4WPW10664271 Whirlpool Water Line Assembly
5W10001280 Whirlpool Refrigerator Screw
6WPW10179146 Whirlpool Refrigerator Water Inlet Valve
7W11342242 Whirlpool Refrigerator Ice Level Arm
8WPW10289690 Whirlpool Ice Maker Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10300025 Whirlpool Refrigerator Ice Mold
11W11676540 Whirlpool Refrigerator Cup Fill
12W10318914 Whirlpool Refrigerator Ejector Arm
13WPW10122563 Whirlpool Refrigerator Stripper Arm
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
17W10001240 Whirlpool Refrigerator Screw
188201515 Whirlpool Refrigerator Motor and Gear Module Kit
19CABINET (NOT A SERVICEABLE PART)
100WPW10300022 Whirlpool Refrigerator Ice Maker Assembly
