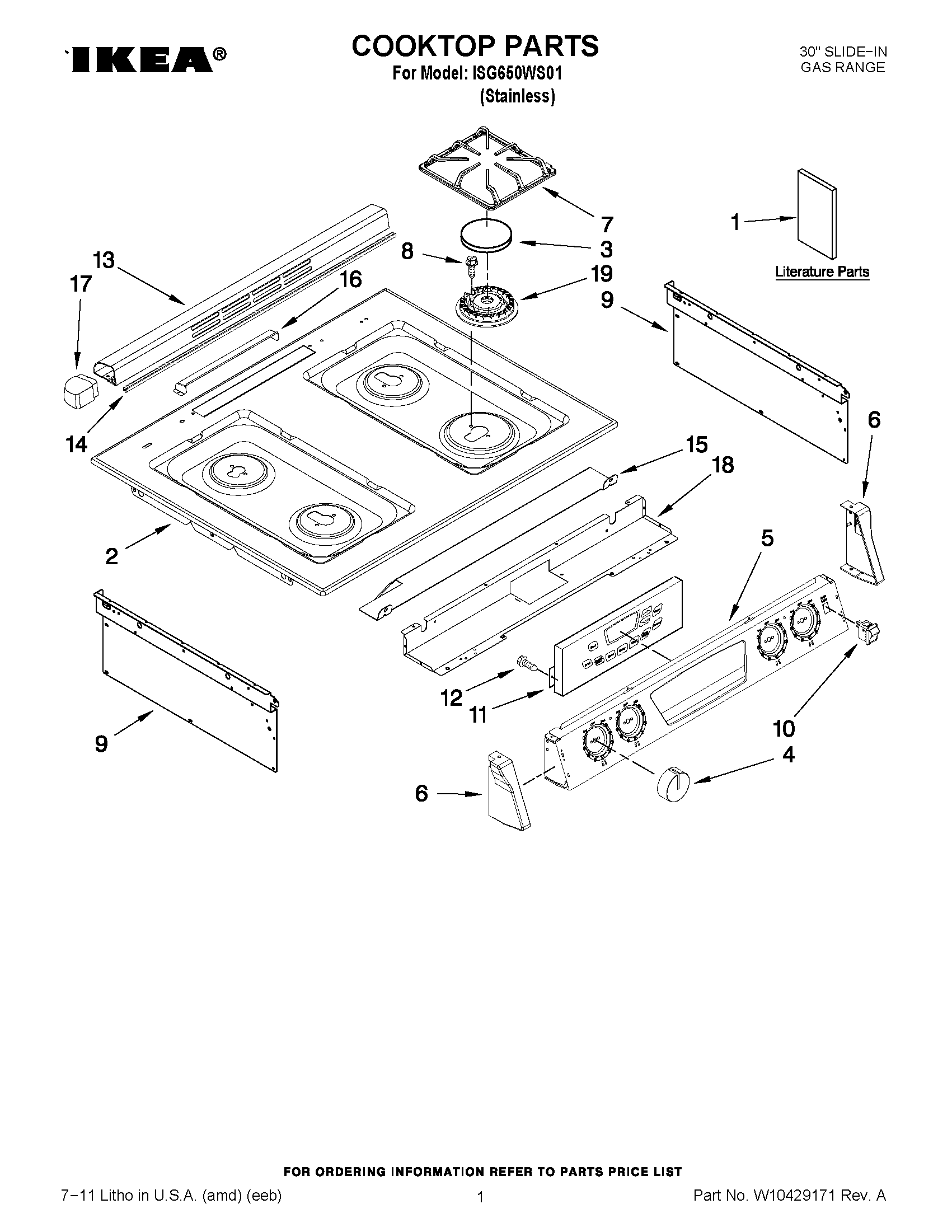

ISG650WS01 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Wiring Diagram (English)
1Installation Instructions
1USE & CARE GUIDE
1Wiring Diagram (French)
1Safer Cooking Tips (French)
2COOKTOP
3CAP, BURNER (SMALL)
3CAP, BURNER (LARGE)
4W10159630 Whirlpool Knob Assembly
5PANEL, CONTROL
6END CAP (LEFT)
6END CAP (RIGHT)
7GRATE, BURNER
8Screw (8)
9Panel, Shield (Left)
9Panel, Shield (Right)
10Switch, Rocker
11Control W/Overlay
12Screw
13COVER, VENT
14GASKET
15SHIELD, CONTROL
16Baffle, Vent Cover
17TRIM, END CAP (LEFT)
17TRIM, END CAP (RIGHT)
18SUPPORT, CONTROL PANEL
19WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
19WPW10406243 Whirlpool Burner Head Auxiliary 6K
