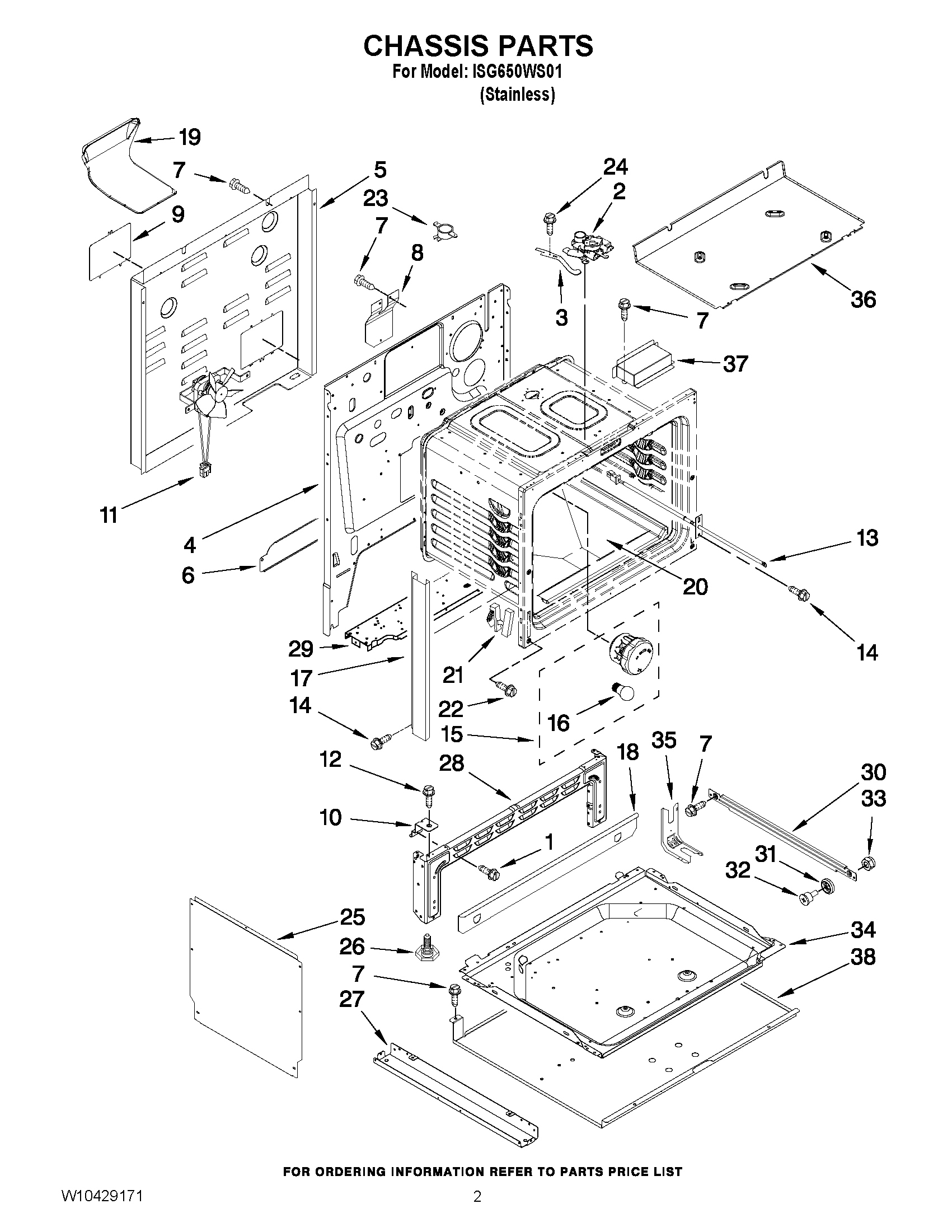

ISG650WS01 02 – CHASSIS PARTSadmin2025-04-26T11:27:28+00:00ISG650WS01 02 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, OVEN BOTTOM |
| NI | Insulation, Wrap |
| NI | Insulation, Back |
| 2 | LATCH ASSEMBLY |
| 3 | LEVER, LATCH |
| 4 | Main Back |
| 5 | Cover, Main Wire |
| 6 | Extension, Back |
| 7 | SCREW |
| 8 | INSULATOR, CORD |
| 9 | COVER, TERMINAL |
| 10 | SUPPORT,OVEN BTM |
| 11 | Fan, Cooling |
| 13 | SENSOR, OVEN |
| 14 | SCREW |
| 15 | Light Assembly |
| 16 | BULB, LIGHT |
| 17 | Trim, Side |
| 18 | Baffle, Oven Front |
| 19 | Box, Assy Vent |
| 20 | Bottom, Oven |
| 21 | HINGE |
| 22 | SCREW |
| 23 | SWITCH, HI-LIMIT |
| 24 | SCREW |
| 25 | Shield, Lower Side |
| 26 | Leg, Leveling |
| 27 | Pedestal, Bottom |
| 28 | W10271711 Whirlpool Support Bracket |
| 29 | Support |
| 30 | RUNNER, DRAWER |
| 31 | ROLLER, DRAWER |
| 32 | Shaft, Roller |
| 33 | Nut, Lock |
| 34 | RETAINER, INSUL (BOTTOM) |
| 35 | BRACKET, ANTI TIP |
| 36 | BOTTOM, BURNER BOX |
| 37 | COVER, DOOR LATCH |
| 38 | SHIELD, WARMER |
