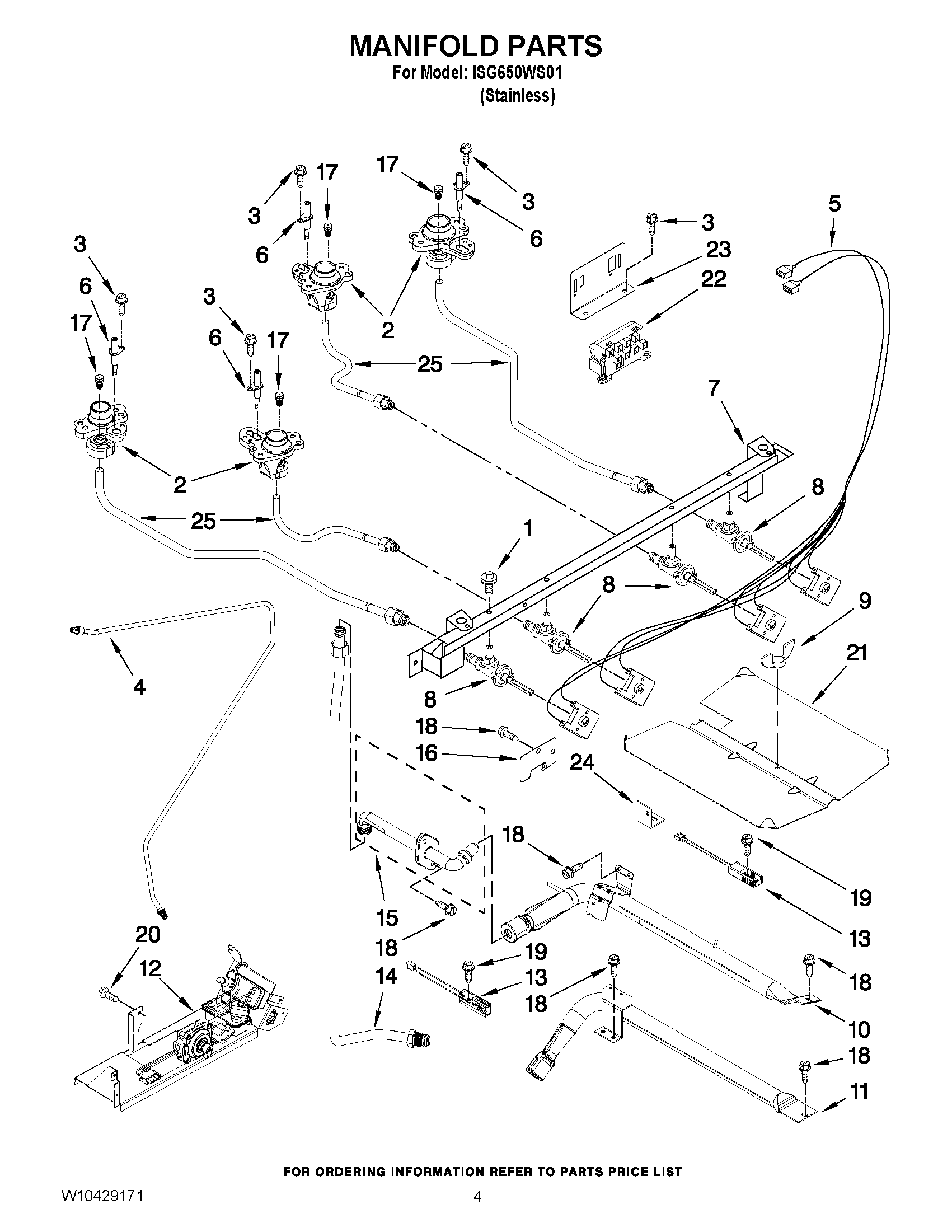

ISG650WS01 03 – MANIFOLD PARTSadmin2025-04-26T11:28:29+00:00ISG650WS01 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | Spuds, LP Gas (Kit of 4) |
| 1 | SCREW, VALVE |
| 2 | HOLDER, ORIFICE (LF,RR-9.2K) |
| 2 | HOLDER, ORIFICE (LR & RR, 5K) |
| 2 | HOLDER, ORIFICE (RF, 12K) |
| 3 | SCREW |
| 4 | TUBING, MAIN SUPPLY |
| 5 | W10165136 Whirlpool Wire Harness |
| 6 | WP74009958 Whirlpool Spark Electrode Assembly |
| 7 | PIPE, MANIFOLD |
| 8 | W10836481 Whirlpool Burner Valve |
| 8 | W10300198 Whirlpool Burner Valve |
| 9 | NUT, WING |
| 10 | BURNER, BROILER |
| 11 | Burner, Bake |
| 12 | VALVE/REGULATOR |
| 13 | IGNITER (BAKE) |
| 14 | TUBING (BROILER FITTING TO VALVE) |
| 15 | FITTING, BROILER |
| 16 | COVER, IGNITOR WIRE |
| 17 | ORIFICE, BURNER (RR) |
| 17 | ORIFICE, BURNER (LF) |
| 17 | ORIFICE, BURNER (RF) |
| 17 | ORIFICE, BURNER (LR) |
| 18 | SCREW |
| 19 | SCREW |
| 20 | WIRING HARNESS PARTS, SCREW, GROUND |
| 21 | BAFFLE, BURNER BAKE |
| 21 | BAFFLE, BURNER BROIL |
| 22 | Spark Module |
| 23 | SUPPORT, SPARK MODULE |
| 24 | SUPPORT, BAKE BURNER |
| 25 | TUBE, BURNER (RF) |
| 25 | TUBE, BURNER (LF) |
| 25 | TUBE, BURNER (RR) |
| 25 | TUBE, BURNER (LR) |
