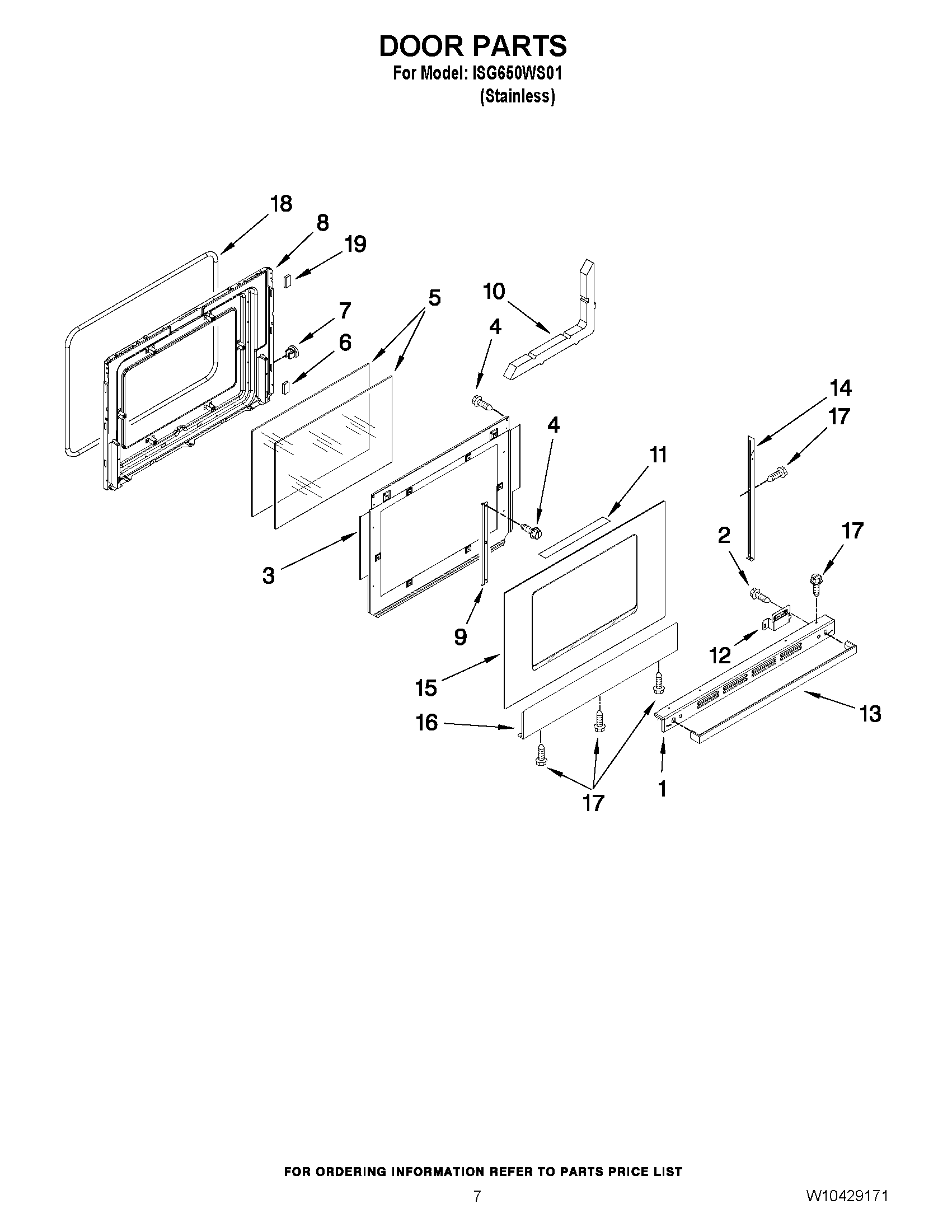

ISG650WS01 05 – DOOR PARTS

ISG650WS01 05 – DOOR PARTS

Written by

in

ISG650WS01 05 – DOOR PARTS

Products

PositionProduct
1Trim, Door Top
2SCREW
3BAFFLE, RETAINER
4SCREW
5GLASS, INNER
6Spacer, Rubber
7NUT, SNAP
8LINING, DOOR
9BRACKET, GLASS
10INSULATION, DOOR
11Insulation, Foil
12Bracket, Handle (Left)
12Bracket, Handle (Right)
13HANDLE, DOOR
14Trim, Door Side (Left)
14Trim, Door Side (Right)
15GLASS, DOOR
16Panel, Oven Door (Bottom)
17SCREW (BLACK)
18GASKT-DOOR OVEN
19Spacer, Rubber
