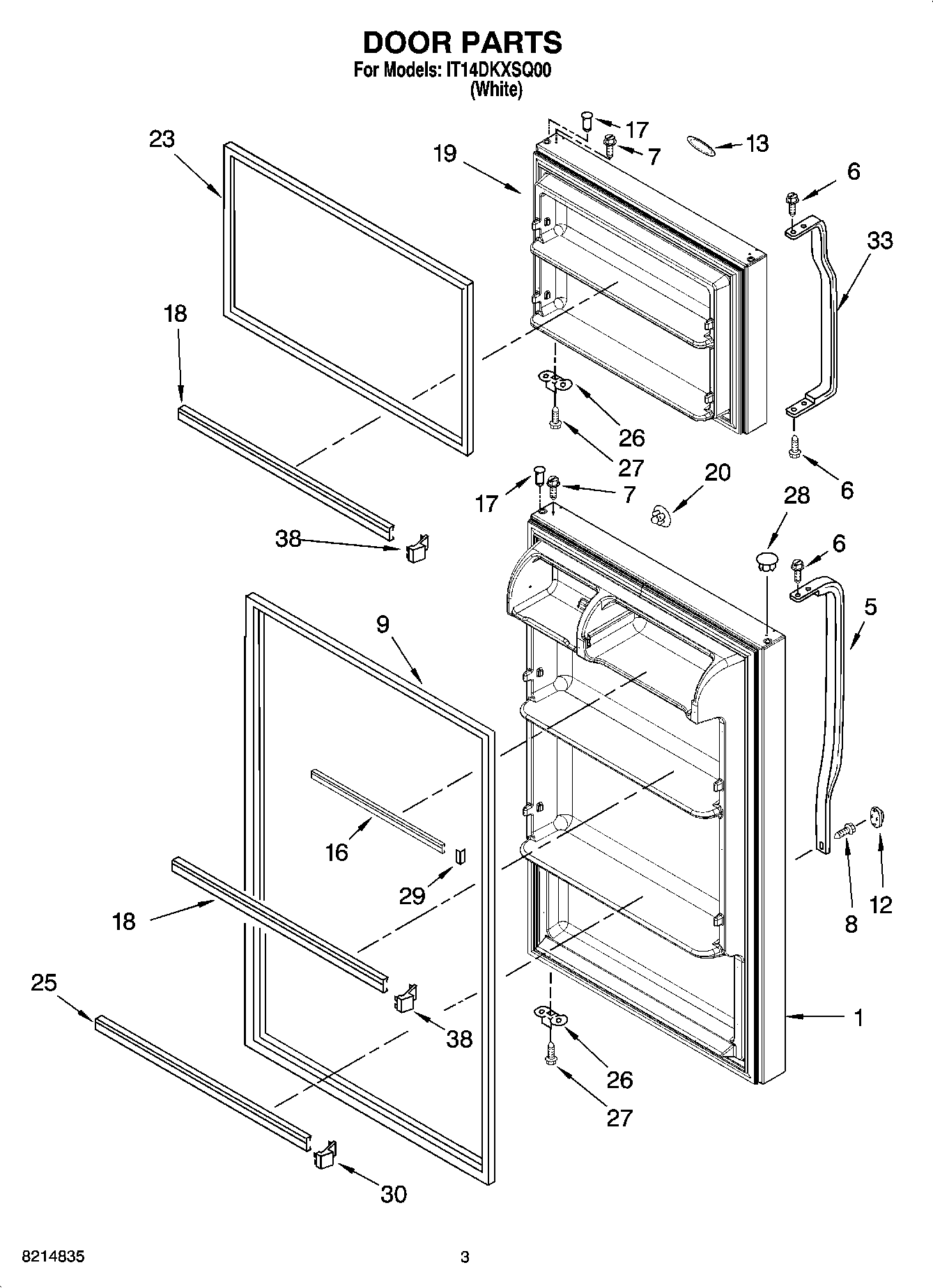

IT14DKXSQ00 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 9) (White)
5HANDLE
6WP489357 Whirlpool Recessed Screw
7WP8281206 Whirlpool Refrigerator Screw
8WP8281146 Whirlpool Screw
9WP2319265T Whirlpool Refrigerator FIP Gasket
12WP2202819W Whirlpool Refrigerator Cover
13Nameplate
16W11129820 Whirlpool Refrigerator Door Trim
17WP2183003 Whirlpool Thimble
18WP2266727 Whirlpool Refrigerator Door Trim
19Freezer Door (Includes Item 16) (White)
20WP2189000 Whirlpool Refrigerator Handle Plug
23WP2319263T Whirlpool Refrigerator FIP Gasket
25WP2266738 Whirlpool Refrigerator Door Trim
26Bracket, Door Stop
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30ENDCAP
33HANDLE
38WP2156003 Whirlpool Refrigerator Door Shelf End Cap
