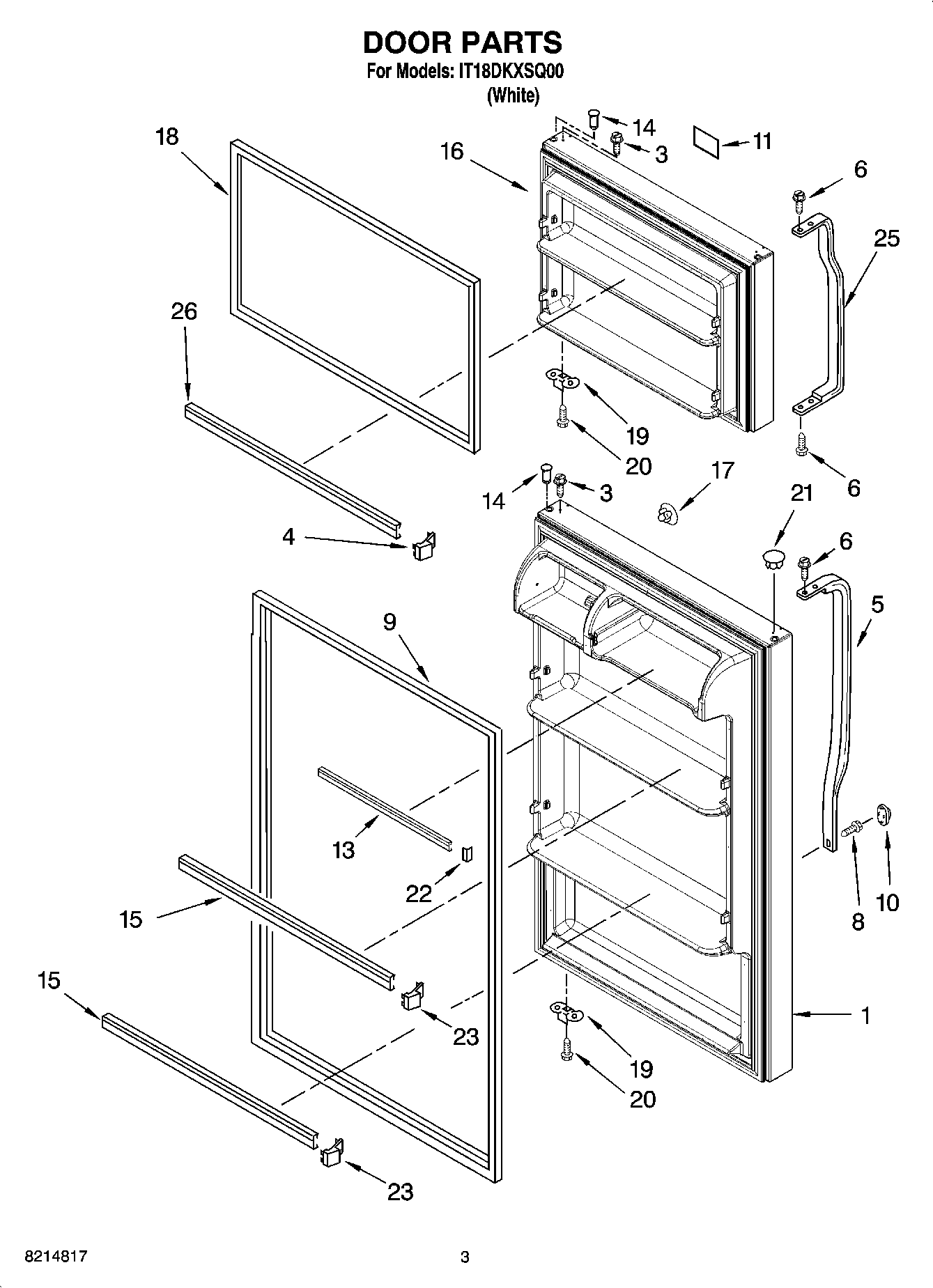

IT18DKXSQ00 02 – DOOR PARTS

IT18DKXSQ00 02 – DOOR PARTS

Written by

in

IT18DKXSQ00 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 9,12 14 & 24)
3WP8281206 Whirlpool Refrigerator Screw
4WP2156003 Whirlpool Refrigerator Door Shelf End Cap
5HANDLE
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
9WP2319264T Whirlpool Door Gasket
10WP2202819W Whirlpool Refrigerator Cover
11Nameplate
13W11129820 Whirlpool Refrigerator Door Trim
14WP2183003 Whirlpool Thimble
15WP2266738 Whirlpool Refrigerator Door Trim
16Freezer Door (Includes Illus. 14,18 & 24)
17WP2189000 Whirlpool Refrigerator Handle Plug
18WP2319263T Whirlpool Refrigerator FIP Gasket
19W11745278 Whirlpool Bracket
20WP488921 Whirlpool Refrigerator Screw
21WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
22ENDCAP-TRM
23ENDCAP
25HANDLE
26WP2266727 Whirlpool Refrigerator Door Trim
