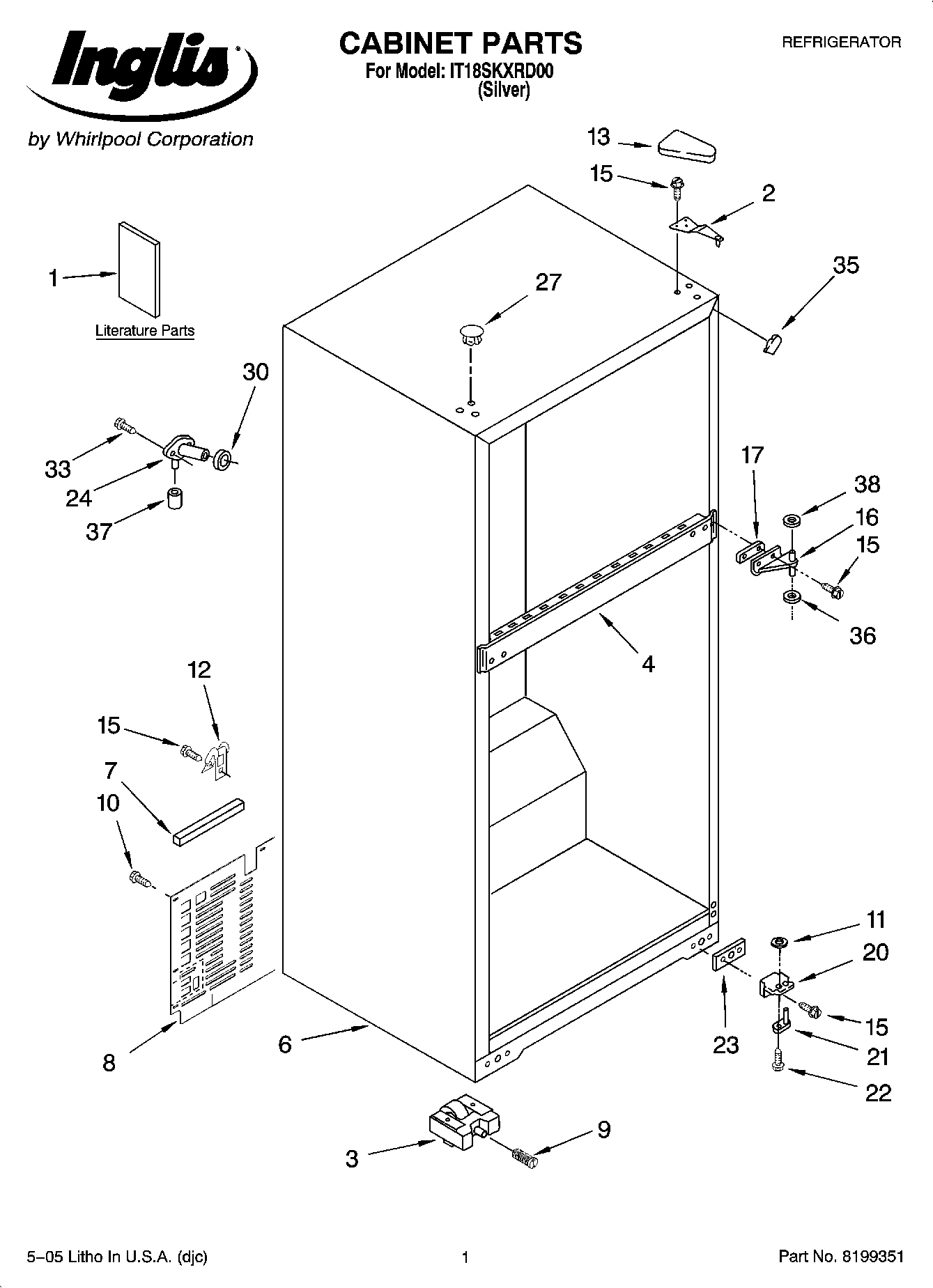

IT18SKXRD00 01 – CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	Energy Label
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	Center Rail (Not a Serviceable Part)
6	Cabinet, (Not A Serviceable Part)
7	Foam Block
8	WP2264132 Whirlpool Refrigerator Unit Cover
9	2222100 Whirlpool Refrigerator Screw
10	WP489442 Whirlpool Refrigerator Screw
11	WP488296 Whirlpool Washer Refrigerator
12	549193 Whirlpool Refrigerator Power Clamp
13	WP2213363 Whirlpool Refrigerator Cover
15	WP489497 Whirlpool Screw
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	2215385 Whirlpool Refrigerator Shim
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	WP3428970 Whirlpool Refrigerator Screw
23	WP2201567 Whirlpool Hinge Shim
24	WP2196157 Whirlpool Fill Tube
27	WP2183998 Whirlpool Refrigerator Button Plug
30	WP1106508 Whirlpool Refrigerator Gasket
33	WP488729 Whirlpool Refrigerator Door Screw
35	W11500943 Whirlpool Refrigerator Filler
36	WP489467 Whirlpool Hinge Shim
37	WP487996 Whirlpool Refrigerator Cap Tube
38	WP487802 Whirlpool Refrigerator Washer
