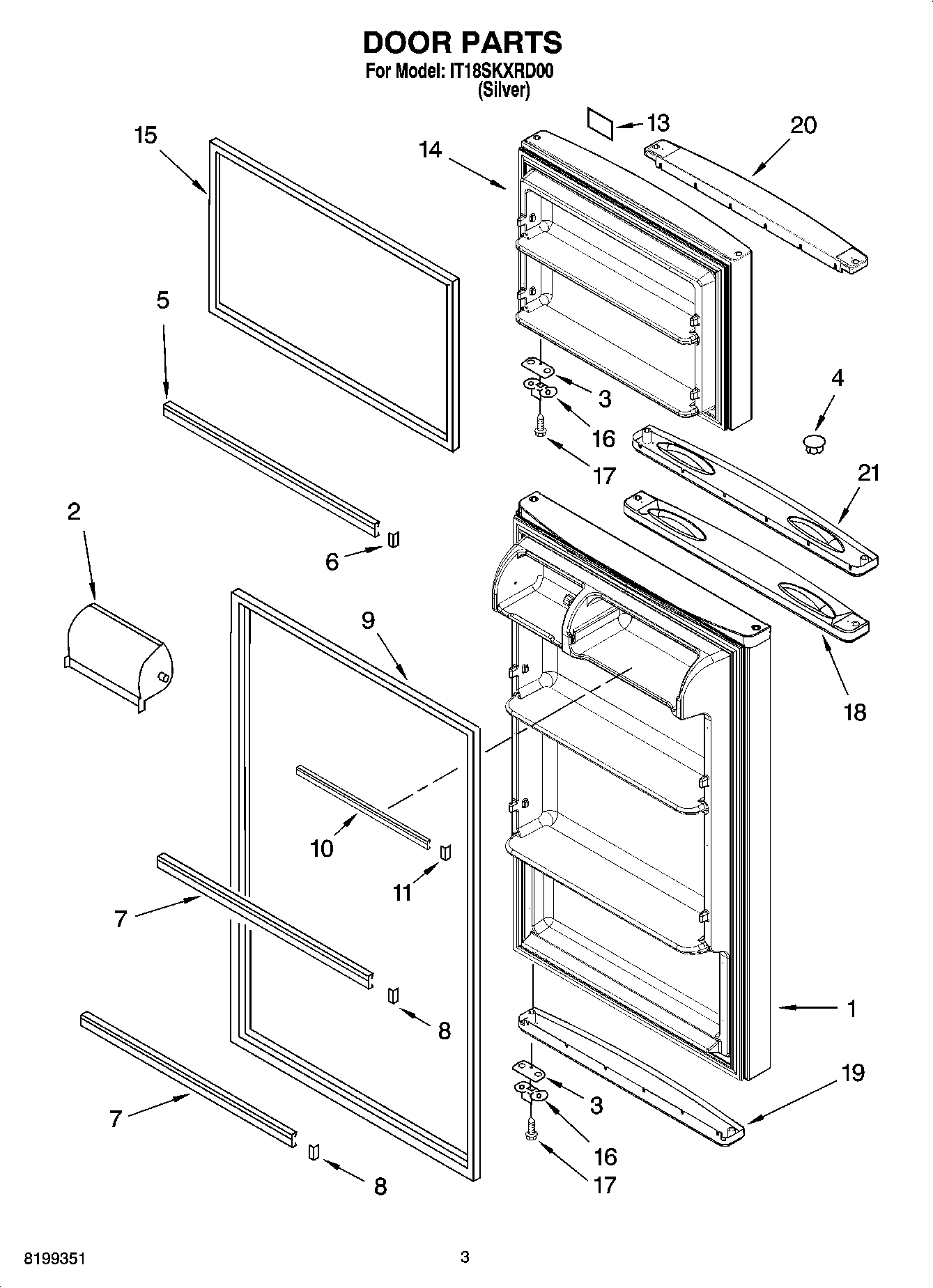

IT18SKXRD00 02 – DOOR PARTS

IT18SKXRD00 02 – DOOR PARTS

Written by

in

IT18SKXRD00 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 9,18 & 19)
2DOOR-COMP
32258681B Whirlpool Refrigerator Shim
4WP2212651 Whirlpool Refrigerator Button Plug
5WP2266727 Whirlpool Refrigerator Door Trim
6WP2156003 Whirlpool Refrigerator Door Shelf End Cap
7WP2266738 Whirlpool Refrigerator Door Trim
8ENDCAP
9WP2319264B Whirlpool Door Gasket
10W11129820 Whirlpool Refrigerator Door Trim
11ENDCAP-TRM
13Nameplate
14Freezer Door (Includes Illus. 15,20 & 21)
15WP2319263B Whirlpool Refrigerator Black Door Gasket
16W11745278 Whirlpool Bracket
17SCREW
18Endcap, Handle (Refrigerator)
19End Cap-Bottom
202252863 Whirlpool Refrigerator Door Trim
21Endcap, Handle (Freezer)
