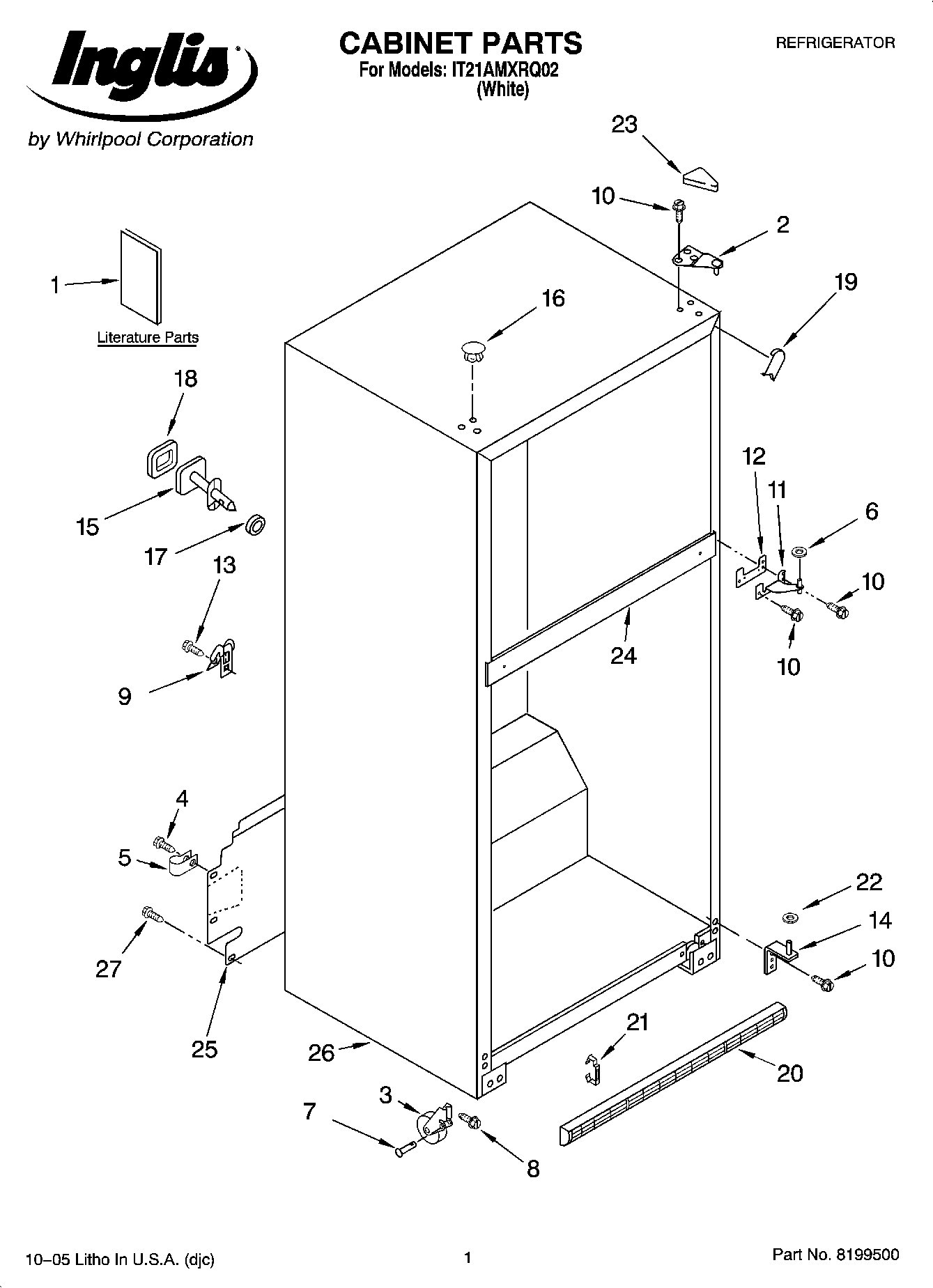

IT21AMXRQ02 01 – CABINET PARTS

IT21AMXRQ02 01 – CABINET PARTS

Written by

in

IT21AMXRQ02 01 – CABINET PARTS

Products

PositionProduct
1Customer Instructions
1Use & Care Guide
1Service & Wiring Sheet
1Energy Label
1Modular Icemaker Service Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489464 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
6WP489467 Whirlpool Hinge Shim
7W11594405 Whirlpool Axle
8WP3400504 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183854 Whirlpool Refrigerator Shim
14WP2254473 Whirlpool Refrigerator Door Hinge
15Fitting, Water Tube (Not Serviced)
16WP2151652 Whirlpool Refrigerator Button Plug
17Seal, Front (Not Serviced)
18Seal, Rear (Not Serviced)
19WPW10283959 Whirlpool Refrigerator Filler
20Grille (White)
21CLIP, GRILLE
22WP487576 Whirlpool Washer
23WP2213360 Whirlpool Refrigerator Cover
24Rail, Center (Not Serviced)
25Cover, Unit
26Cabinet, (Not A Serviceable Part)
27WP489427 Whirlpool Refrigerator Screw
