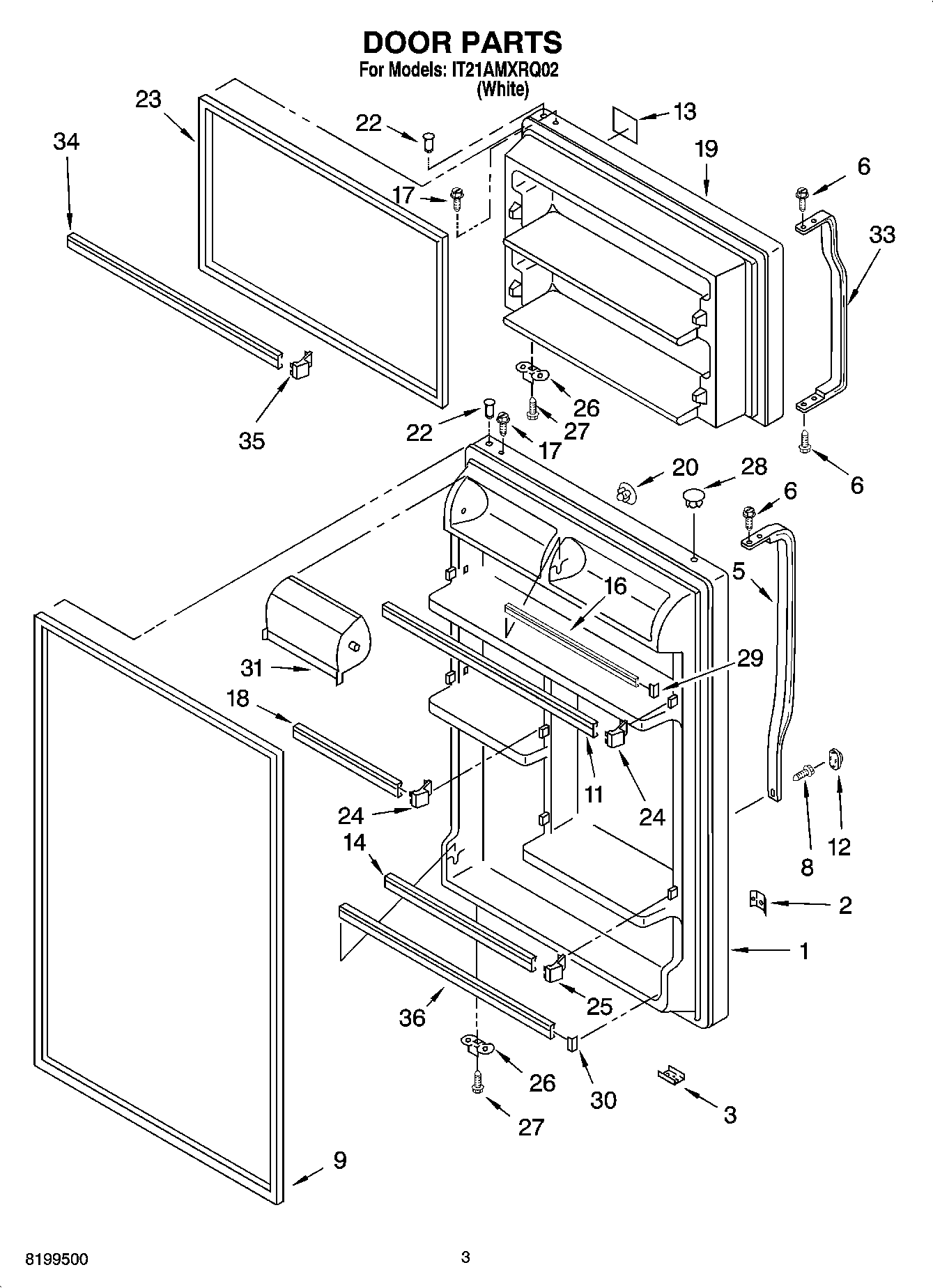

IT21AMXRQ02 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 8 & 9) (White)
2	WP939101 Whirlpool Refrigerator Plate
3	W10833053 Whirlpool Refrigerator Plate
5	WP2202807W Whirlpool Handle Door
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2159061 Whirlpool Refrigerator Door Gasket
12	WP2202819W Whirlpool Refrigerator Cover
13	Nameplate
14	WP2195943 Whirlpool Shelf Retainer Bar
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
18	WP2201062 Whirlpool Refrigerator Door Trim
19	W11023679 Whirlpool Refrigerator Door Assembly
20	WP2189000 Whirlpool Refrigerator Handle Plug
22	WP2183003 Whirlpool Thimble
23	WHITE DOOR GASKET-FIP
25	WP2195915 Whirlpool Door Shelf Support
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218118 Whirlpool Refrigerator Door Compressor
33	WP2202806W Whirlpool Refrigerator Handle
34	WP2201060 Whirlpool Refrigerator Door Trim
35	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
36	WPW10421486 Whirlpool Refrigerator Door Trim
