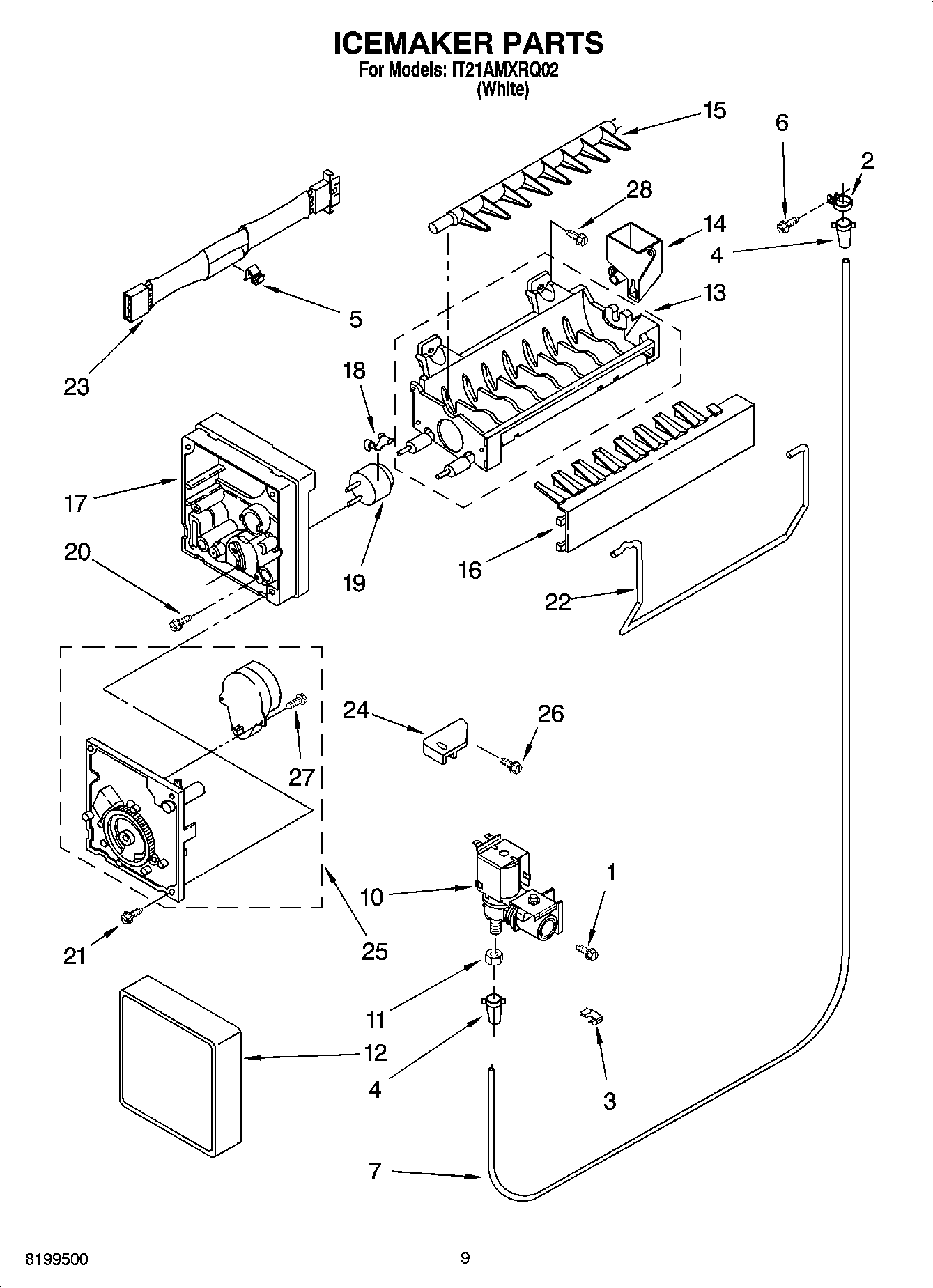

IT21AMXRQ02 05 – ICEMAKER PARTS

Products

Position	Product
1	WP489464 Whirlpool Refrigerator Screw
2	WP488878 Whirlpool Refrigerator Tube Clamp
3	2210495 Whirlpool Refrigerator Clip
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	WP488787 Whirlpool Refrigerator Screw
7	W10823511 Whirlpool Refrigerator Water Tube
10	VALVE-INLT
11	WP627018 Whirlpool Refrigerator Nut
12	WPW10289690 Whirlpool Ice Maker Cover
13	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	WP2182124 Whirlpool Refrigerator Stripper Arm
17	WP2195914 Whirlpool Refrigerator Ice Maker Housing
18	WP2315522 Whirlpool Refrigerator Clip
19	WP627985 Whirlpool Icemaker Cycling Thermostat
20	8533917 Whirlpool Refrigerator Screw
21	WP681249 Whirlpool Screw Assembly
22	WP627792 Whirlpool Refrigerator Shut Off Arm
23	WP2187464 Whirlpool Refrigerator Wire Harness
24	W11500948 Whirlpool Refrigerator Bracket
25	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
26	WP489478 Whirlpool Refrigerator Screw
27	489136 Whirlpool Refrigerator Screw
28	WP488163 Whirlpool Refrigerator Screw
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
