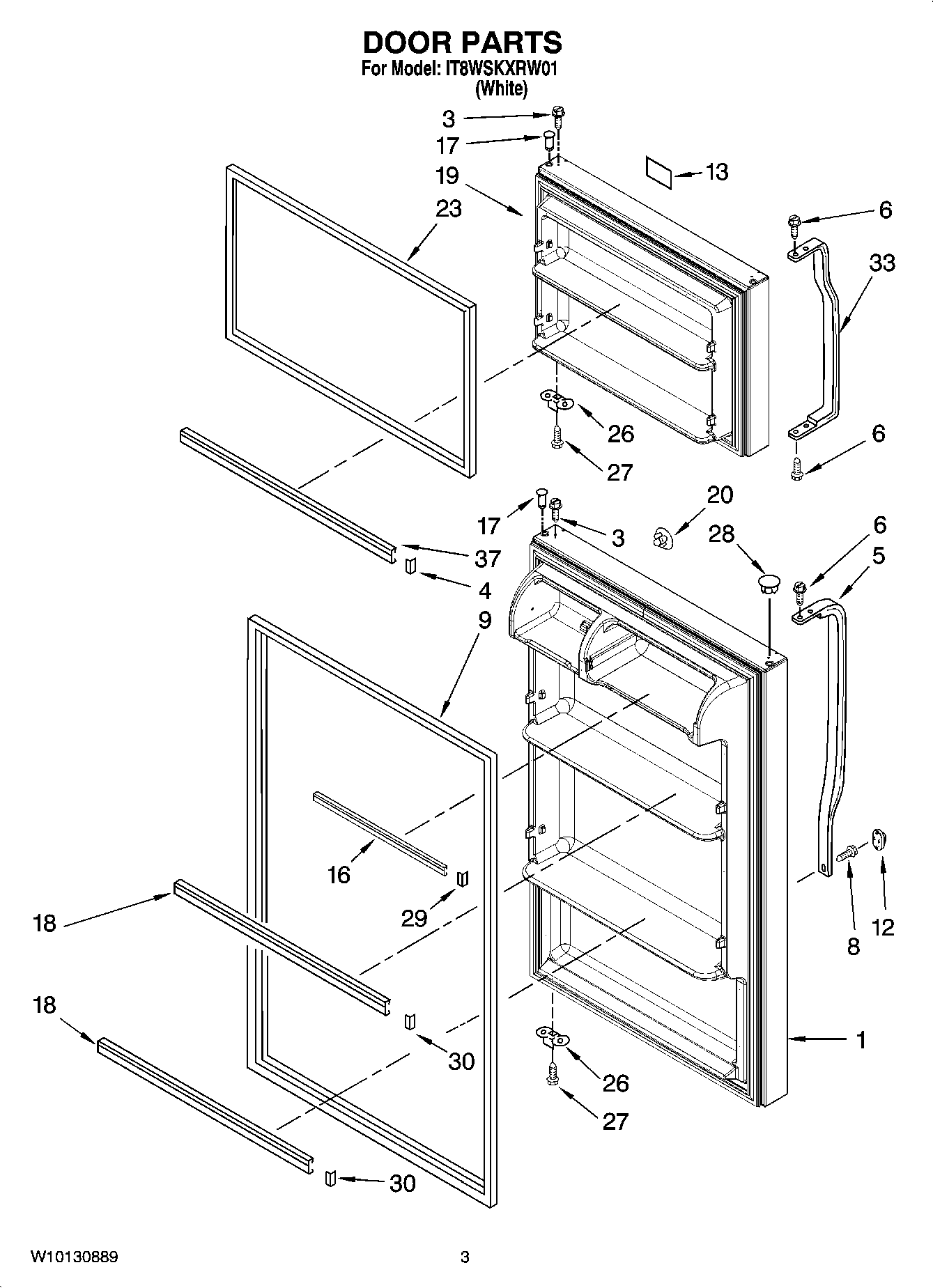

IT8WSKXRW01 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 9,12 14 & 24)
3	WP8281206 Whirlpool Refrigerator Screw
4	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
5	HANDLE
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	WP2319264T Whirlpool Door Gasket
12	WP2202819W Whirlpool Refrigerator Cover
13	Nameplate
16	W11129820 Whirlpool Refrigerator Door Trim
17	WP2183003 Whirlpool Thimble
18	WP2266738 Whirlpool Refrigerator Door Trim
19	Freezer Door (Includes Illus. 14,18 & 24)
20	WP2189000 Whirlpool Refrigerator Handle Plug
23	WP2319263T Whirlpool Refrigerator FIP Gasket
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	ENDCAP
33	HANDLE
37	WP2266727 Whirlpool Refrigerator Door Trim
