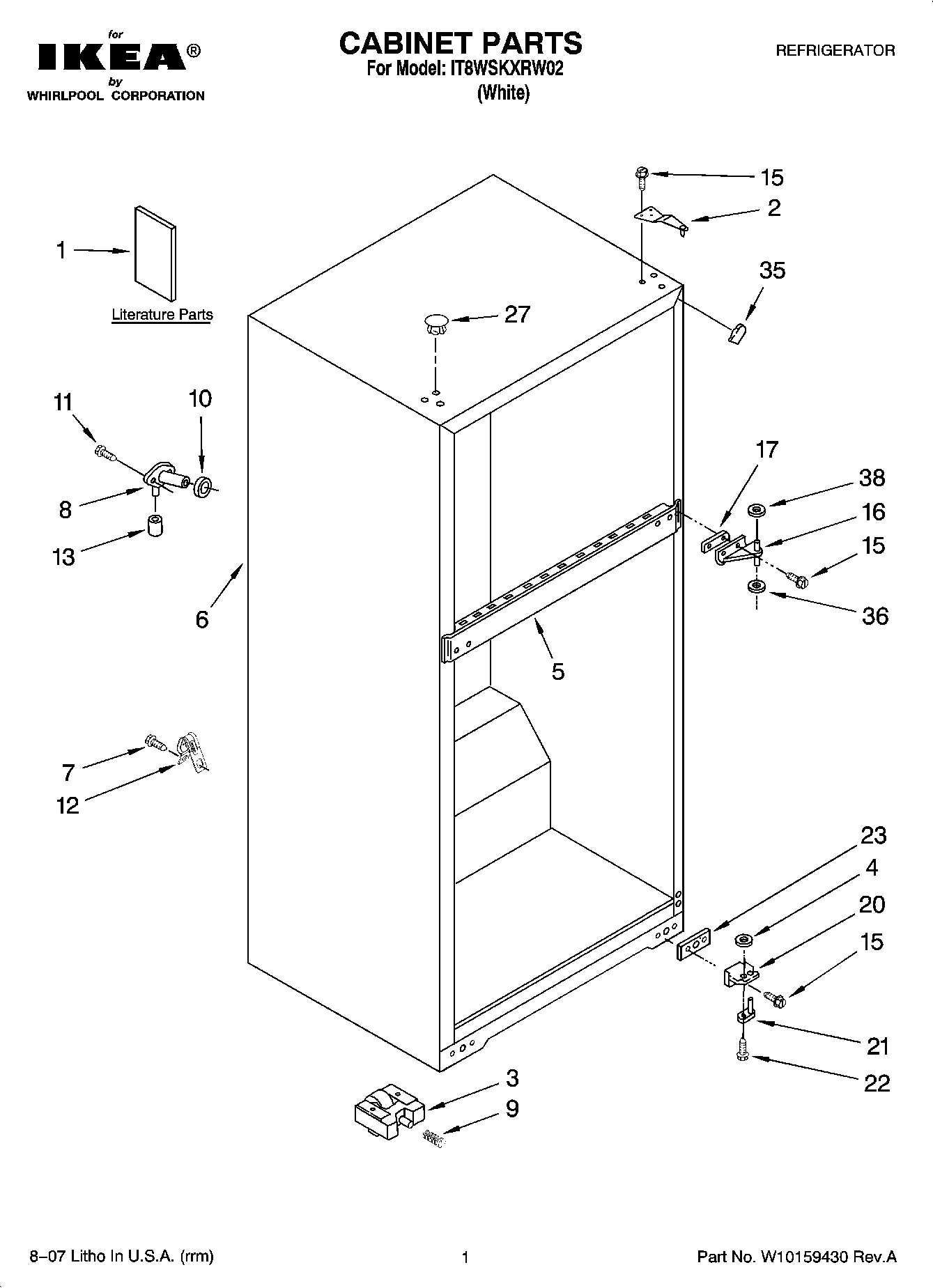

IT8WSKXRW02 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Use & Care Guide
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	WP487802 Whirlpool Refrigerator Washer
5	Center Rail (Not a Serviceable Part)
6	Cabinet, (Not A Serviceable Part)
7	WP489442 Whirlpool Refrigerator Screw
8	WP2196157 Whirlpool Fill Tube
9	2222100 Whirlpool Refrigerator Screw
10	WP1106508 Whirlpool Refrigerator Gasket
11	WP488729 Whirlpool Refrigerator Door Screw
12	549193 Whirlpool Refrigerator Power Clamp
13	WP487996 Whirlpool Refrigerator Cap Tube
15	WP489497 Whirlpool Screw
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	2166043 Whirlpool Refrigerator Shim
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	WP3428970 Whirlpool Refrigerator Screw
23	WP2201567 Whirlpool Hinge Shim
27	WP2151652 Whirlpool Refrigerator Button Plug
35	W10859322 Whirlpool Refrigerator Filler
36	WP489467 Whirlpool Hinge Shim
38	WP487576 Whirlpool Washer
