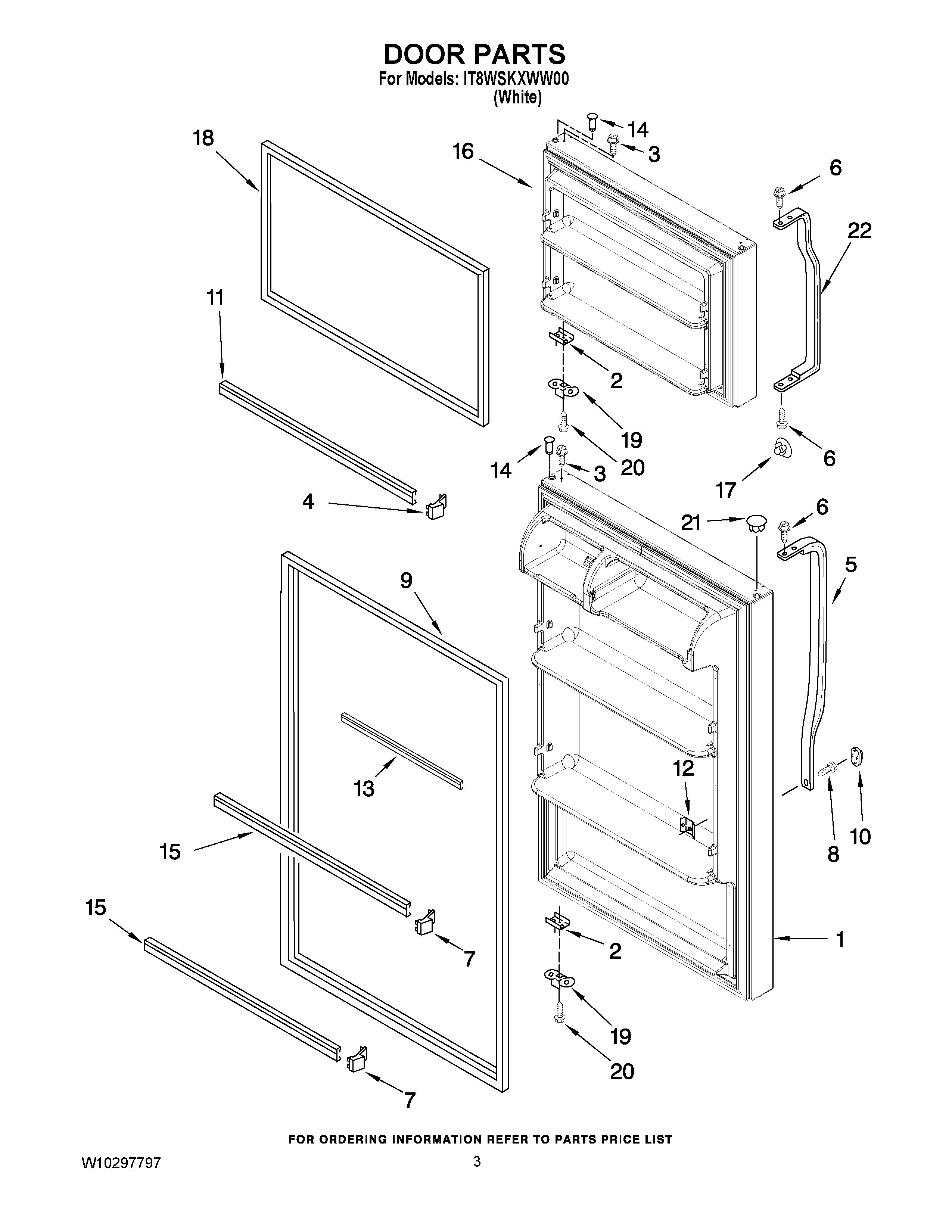

IT8WSKXWW00 02 – DOOR PARTS

IT8WSKXWW00 02 – DOOR PARTS

Written by

in

IT8WSKXWW00 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 9,12 14 & 24)
2Tap Plate
3WP8281206 Whirlpool Refrigerator Screw
4WP2156003 Whirlpool Refrigerator Door Shelf End Cap
5HANDLE
6WP489357 Whirlpool Recessed Screw
7ENDCAP
8WP8281146 Whirlpool Screw
9WP2319264T Whirlpool Door Gasket
10WP2202819W Whirlpool Refrigerator Cover
11WP2266727 Whirlpool Refrigerator Door Trim
12WP939101 Whirlpool Refrigerator Plate
13W11129820 Whirlpool Refrigerator Door Trim
14WP2183003 Whirlpool Thimble
15WP2266738 Whirlpool Refrigerator Door Trim
16Freezer Door (Includes Illus. 14,18 & 24)
17WP2189000 Whirlpool Refrigerator Handle Plug
18WP2319263T Whirlpool Refrigerator FIP Gasket
19W11745278 Whirlpool Bracket
20WP488921 Whirlpool Refrigerator Screw
21WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
22HANDLE
