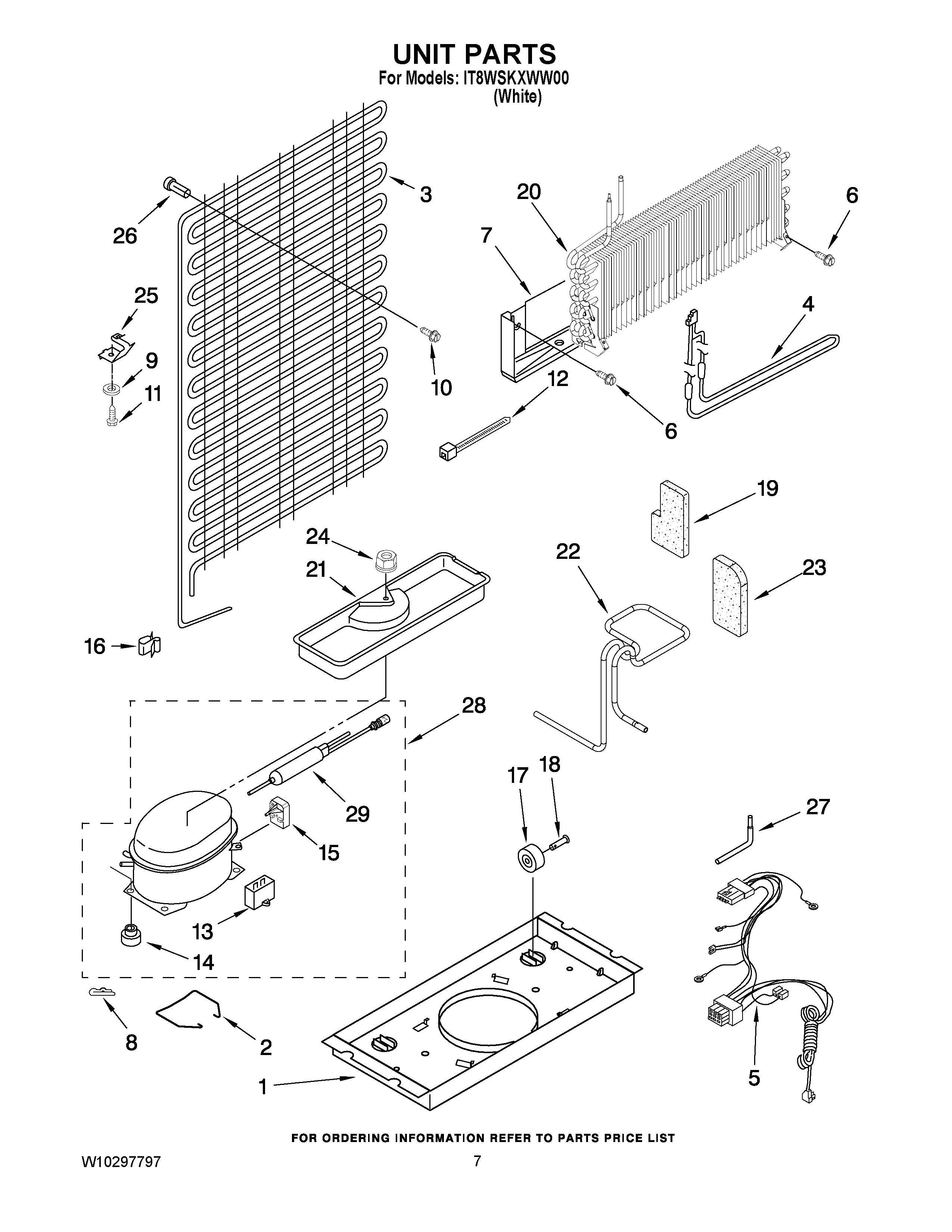

IT8WSKXWW00 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10222451 Whirlpool Refrigerator Support
2	2212996 Whirlpool Refrigerator Retainer
3	WPW10219349 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	W10151654 Whirlpool Refrigerator Wire Harness
7	Heat Shield
8	Clip, Compressor
9	8526417 Whirlpool Washer
10	Screw
11	WP489442 Whirlpool Refrigerator Screw
12	WPW10339879 Whirlpool Wire Tie
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WP2225929 Whirlpool Refrigerator Start Device
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	Tray, Evaporator
22	Tube, Discharge
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
27	W11676464 Whirlpool Tube
28	Compressor (Includes Items 12,13,14,22,29, 32 & 34) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
