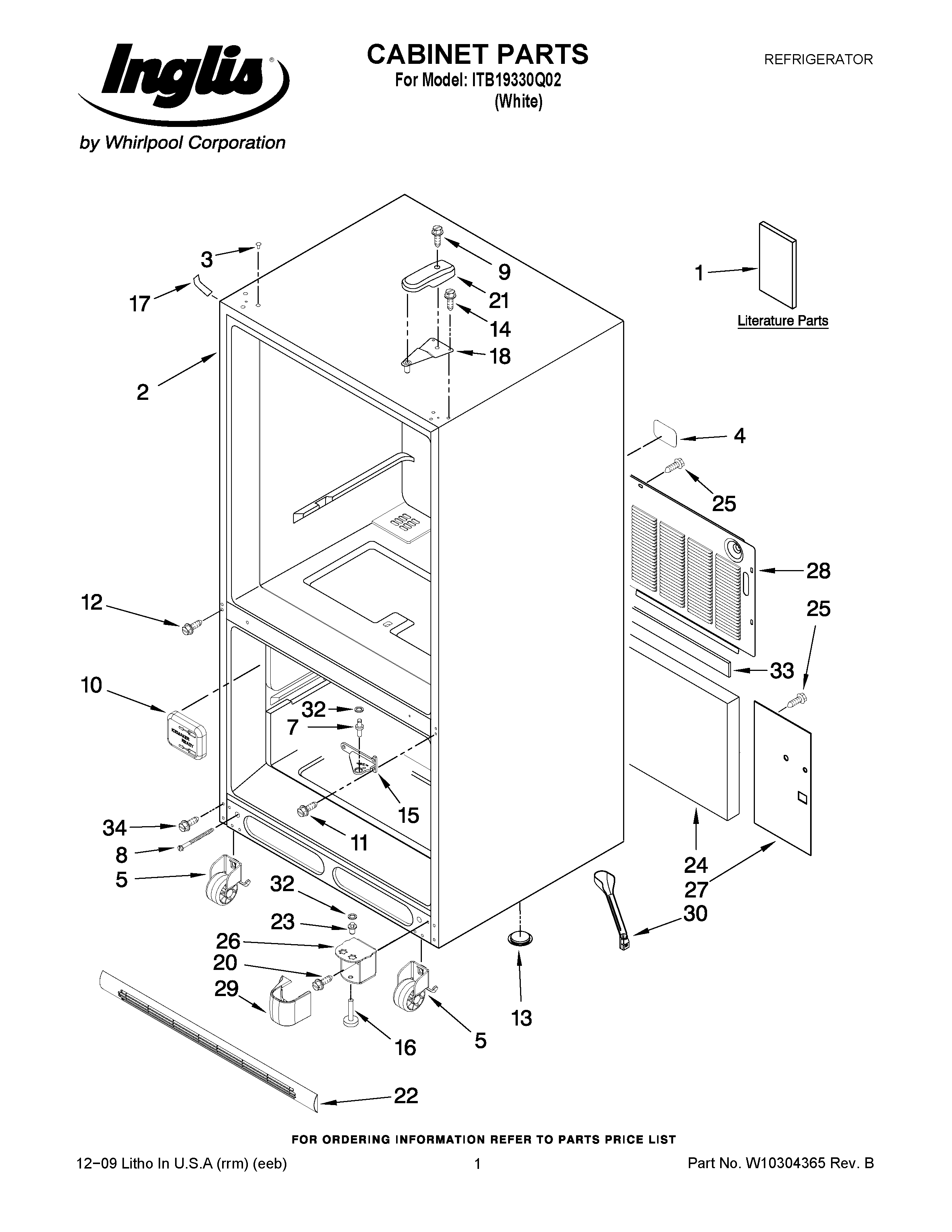

ITB19330Q02 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1Energy Guide
1GUIDE, USE & CARE
2CABINET (NOT A SERVICEABLE PART)
3WP67001130 Whirlpool Refrigerator White Button Plug
4W11685757 Whirlpool Label
5ROLLER ASSY.(REAR)
7WP67006744 Whirlpool Refrigerator Center Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10WP67001098 Whirlpool Refrigerator Tube Cover
11WP67006380 Whirlpool Screw
12WP489349 Whirlpool Refrigerator Screw
13A3076901 Whirlpool Refrigerator Plug
15WP12607103WD Whirlpool Refrigerator Center Hinge
16W11177593 Whirlpool Leveling Feet
1712587703W Whirlpool Refrigerator Cover
18WP12566606ED Whirlpool Refrigerator Door Hinge
2067006564 Whirlpool Refrigerator Screw
2167001014 Whirlpool Refrigerator Top Hinge Cover White
22GRILLE ASSEMBLY (WHITE)
2367007018 Whirlpool Refrigerator Bottom Hinge PIN
24INSULATION, SOUND
2567006425 Whirlpool Refrigerator Screw
2612465002WD Whirlpool Refrigerator Bottom Hinge
27W11684617 Whirlpool Valve Cover
28W10210978 Whirlpool Refrigerator Back Cover
29Cover, Hinge (White)
30W10619951 Whirlpool Drain Tube with Grommet
32WPM0274057 Whirlpool Refrigerator Shim
33Gasket
34WP67006715 Whirlpool Refrigerator Screw
