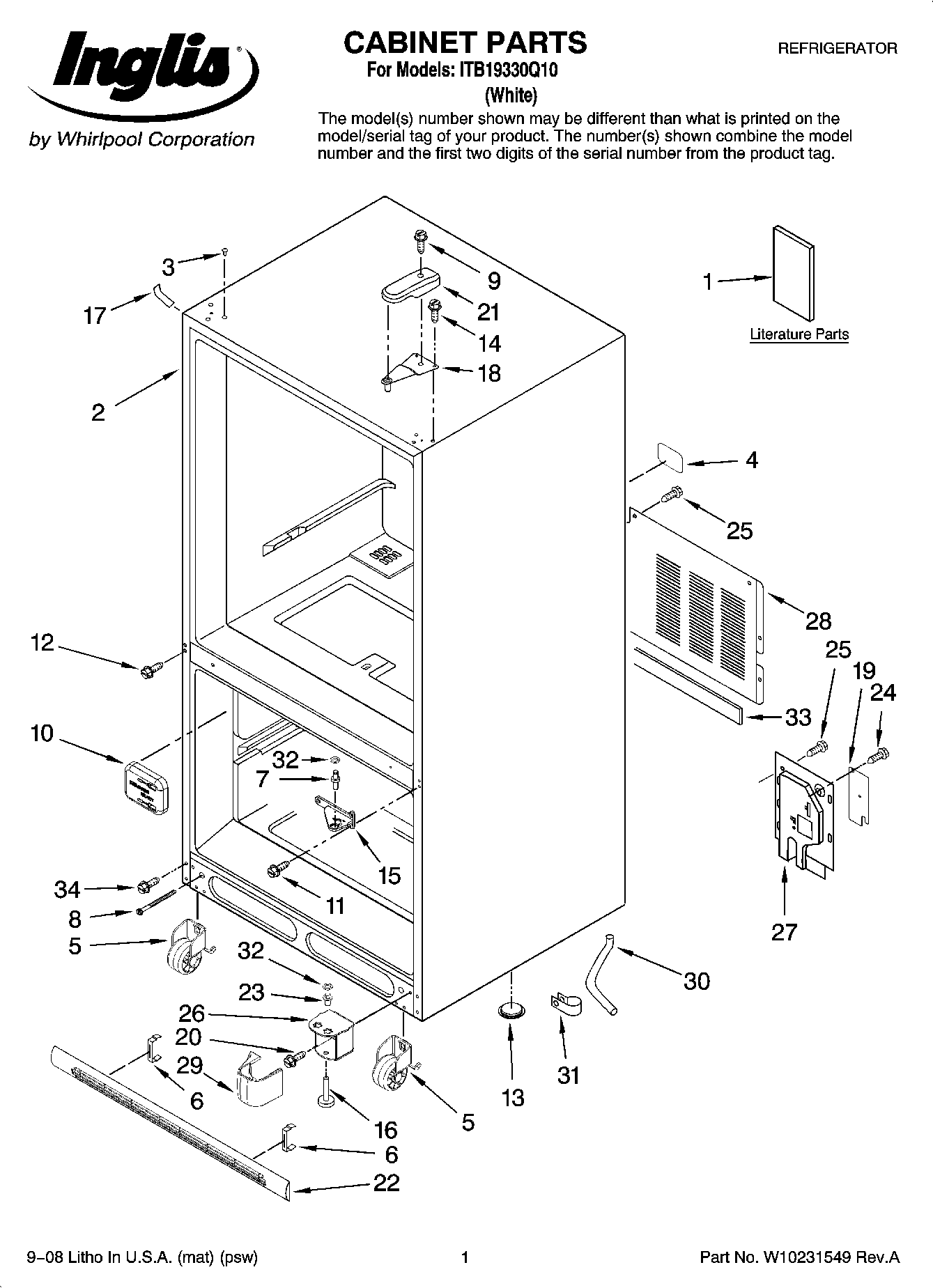

ITB19330Q10 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	GUIDE, USE & CARE
1	Tech Sheet
2	Cabinet (Not A Servicable Part)
3	WP67001130 Whirlpool Refrigerator White Button Plug
4	Label, Fill Tube
5	ROLLER ASSY.(REAR)
6	Clip, Grille
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	WP67001098 Whirlpool Refrigerator Tube Cover
11	WP67006380 Whirlpool Screw
12	WP489349 Whirlpool Refrigerator Screw
13	A3076901 Whirlpool Refrigerator Plug
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003484 Whirlpool Refrigerator White Corner Cover
18	WP12566606ED Whirlpool Refrigerator Door Hinge
19	Plate, Cover
20	67006564 Whirlpool Refrigerator Screw
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
22	Grille, Toe (White)
23	67007018 Whirlpool Refrigerator Bottom Hinge PIN
24	WP489128 Whirlpool Refrigerator Screw
25	67006425 Whirlpool Refrigerator Screw
26	12465002WD Whirlpool Refrigerator Bottom Hinge
27	Cover, Water Valve
28	Cover, Unit
29	Cover, Hinge (White)
30	W10164397 Whirlpool Refrigerator Drain Tube
31	Clip, Drain Tube
32	WPM0274057 Whirlpool Refrigerator Shim
33	Gasket
34	WP67006715 Whirlpool Refrigerator Screw
