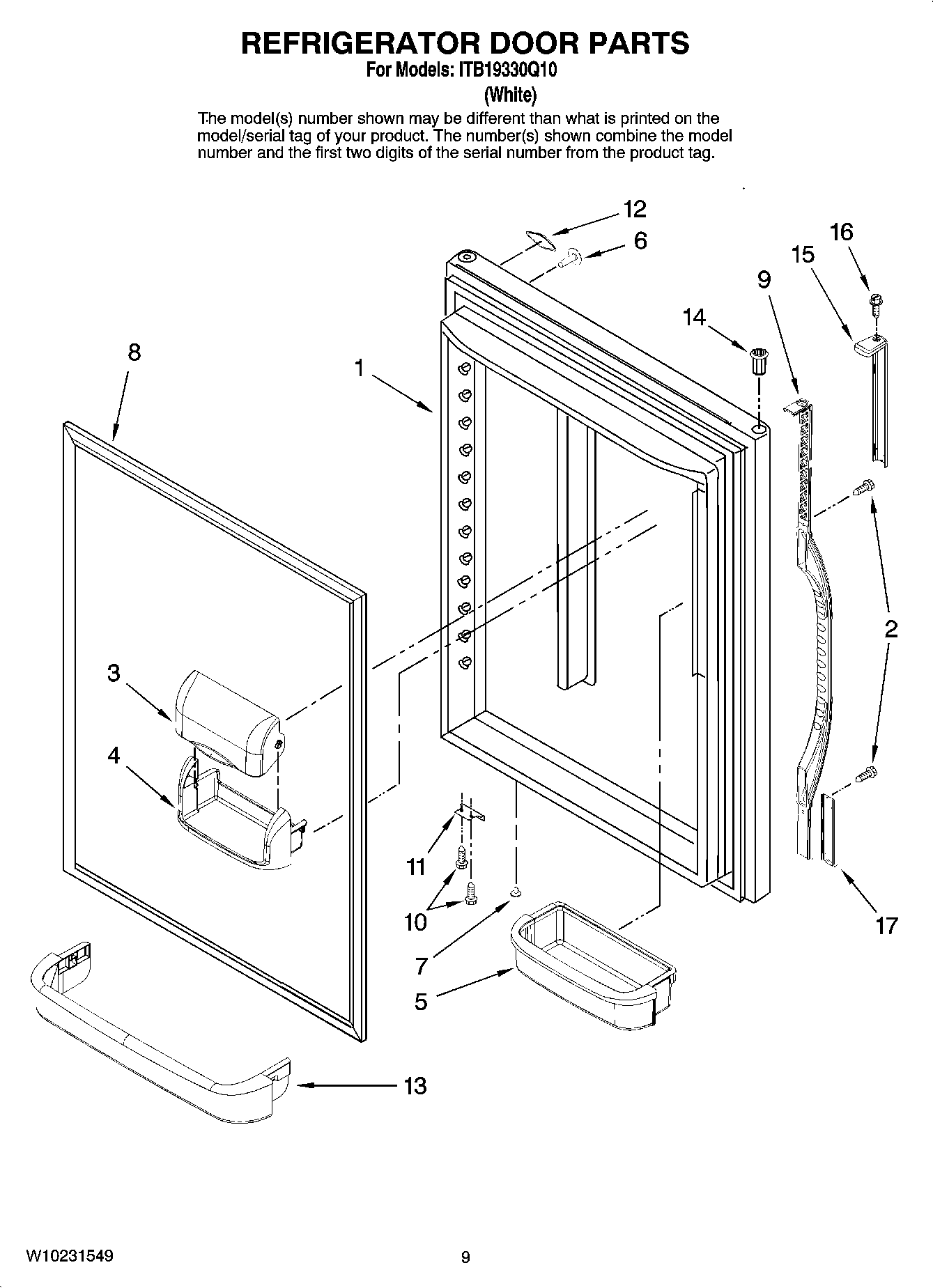

ITB19330Q10 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (w/ Insulation) (White)
2W10709784 Whirlpool Refrigerator Handle Plug
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
567001141 Whirlpool Refrigerator Small Bucket Door
5WP67001021 Whirlpool Refrigerator Bucket
6WP67001130 Whirlpool Refrigerator White Button Plug
710712401 Whirlpool Refrigerator Vent Plug (White)
8WPW10443309 Whirlpool Refrigerator Door Gasket
9Handle, Door (White)
10WP98165 Whirlpool Screw
1112968202W Whirlpool Refrigerator Door Stop
12Nameplate
13Retainer, Door
14WP67004977 Whirlpool Refrigerator Door Hinge Bushing
15Trim, Handle-Top (White)
16Screw
17Trim-Handle, Bottom (White)
