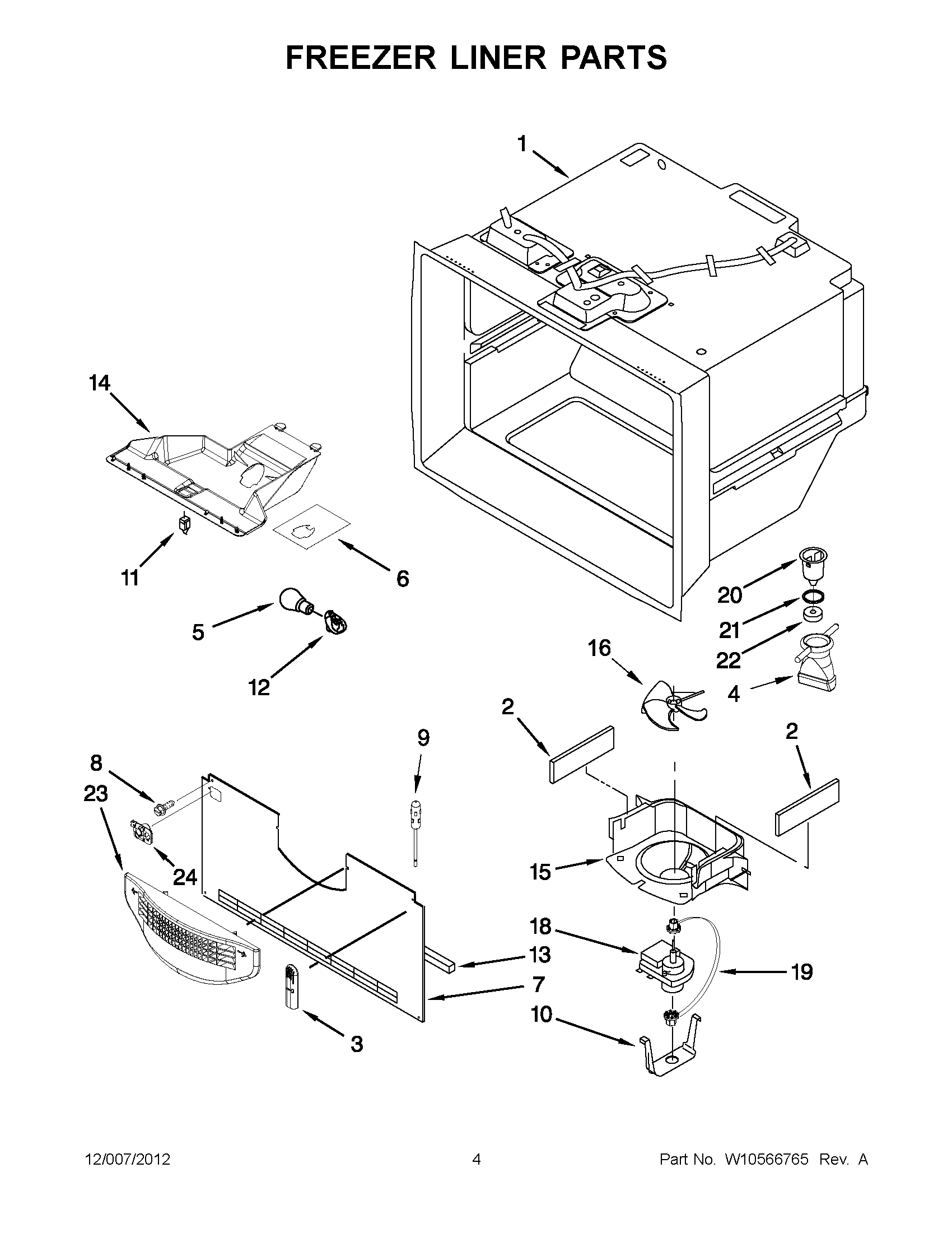

ITB19440Q03 02 – FREEZER LINER PARTS

ITB19440Q03 02 – FREEZER LINER PARTS

Written by

in

ITB19440Q03 02 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
3WP67003924 Whirlpool Refrigerator Cover
4W10619951 Whirlpool Drain Tube with Grommet
54396822 Whirlpool Refrigerator Light Bulb
6W11469652 Whirlpool Refrigerator Shield
7WPW10308414 Whirlpool Refrigerator Evaporator Cover
8WP489349 Whirlpool Refrigerator Screw
912002355 Whirlpool Refrigerator Thermistor Kit
10CLIP, EVAPORATOR MOTOR
11W11396033 Whirlpool Refrigerator Rocker Switch
12W11447232 Whirlpool Refrigerator Socket
13A3189394 Whirlpool Refrigerator Gasket
14WPW10277025 Whirlpool Refrigerator Housing
15WPW10167023 Whirlpool Refrigerator Shroud
16WP2169142 Whirlpool Fan Blade
18WPW10128551 Whirlpool Evaporator Fan Motor
19W10121318 Whirlpool Refrigerator Grommet
20W10815413 Whirlpool Refrigerator Funnel
21WPB8381501 Whirlpool Refrigerator Door Gasket
22WPM0500703 Whirlpool Refrigerator O-Ring Seal
23WPW10175909 Whirlpool Grille Assembly
24W11448709 Whirlpool Refrigerator Bracket
