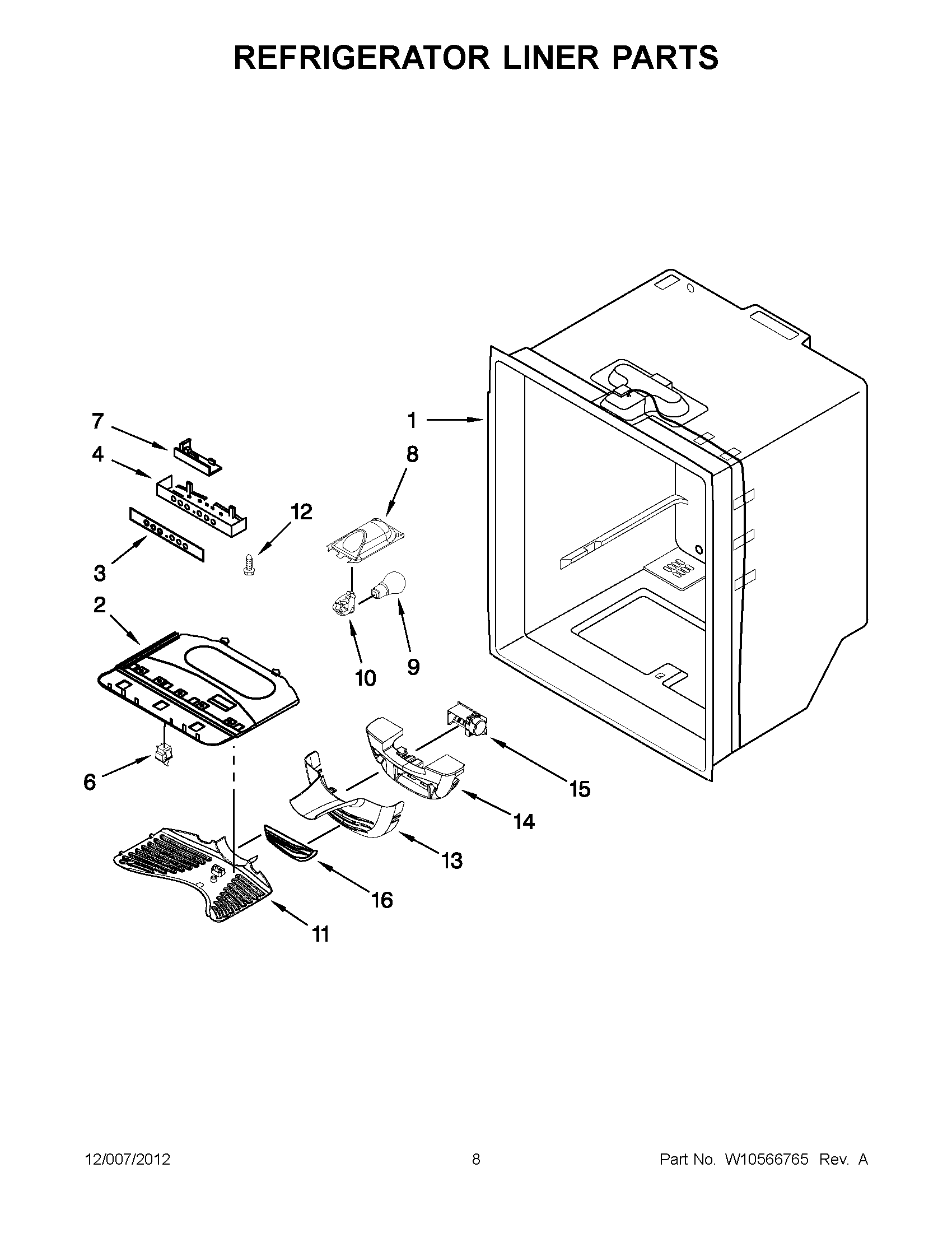

ITB19440Q03 04 – REFRIGERATOR LINER PARTS

ITB19440Q03 04 – REFRIGERATOR LINER PARTS

Written by

in

ITB19440Q03 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11619328 Whirlpool Wire Harness
2W10464757 Whirlpool Refrigerator Housing
3W10207257 Whirlpool Refrigerator Overlay
4WPW10464769 Whirlpool Refrigerator Housing
6W11384469 Whirlpool Door Switch
7WPW10503278 Whirlpool Refrigerator Electronic Control Board
8W10443023 Whirlpool Refrigerator Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
11W11284721 Whirlpool Refrigerator Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10196393 Whirlpool Control Damper
1667003900 Whirlpool Refrigerator Insert Damper Cover
