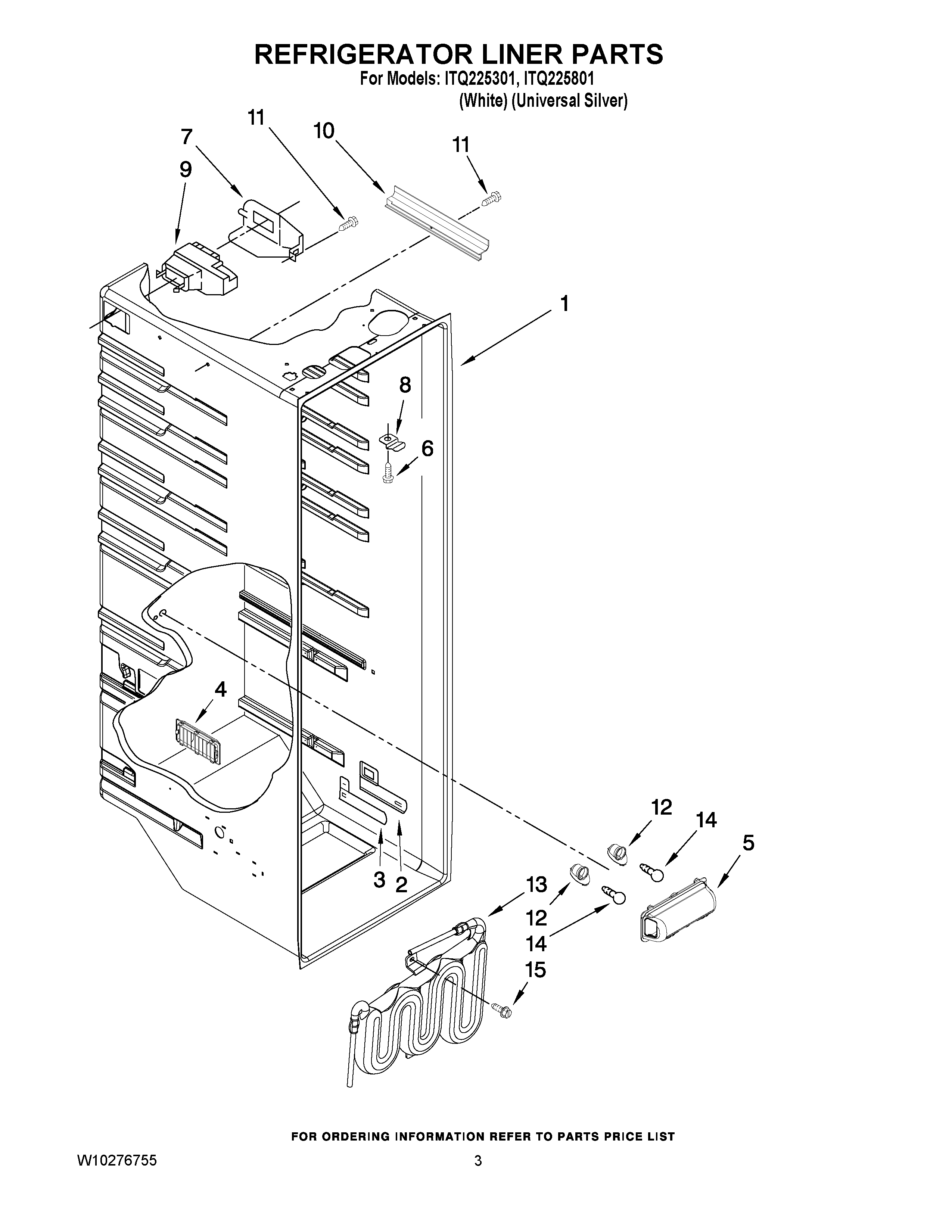

ITQ225301 02 – REFRIGERATOR LINER PARTS

ITQ225301 02 – REFRIGERATOR LINER PARTS

Written by

in

ITQ225301 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6WP488488 Whirlpool Refrigerator Screw
72152019 Whirlpool Refrigerator Cover
82311612 Whirlpool Refrigerator Clip
9WPW10151374 Whirlpool Refrigerator Diffuser
10W10252495 Whirlpool Refrigerator Wire Cover
11W10759522 Whirlpool Screw
124387478 Whirlpool Refrigerator Light Socket
13RESERVOIR
14RANGE ONLY 40W 120V APPL BULB
15Screw (2)
