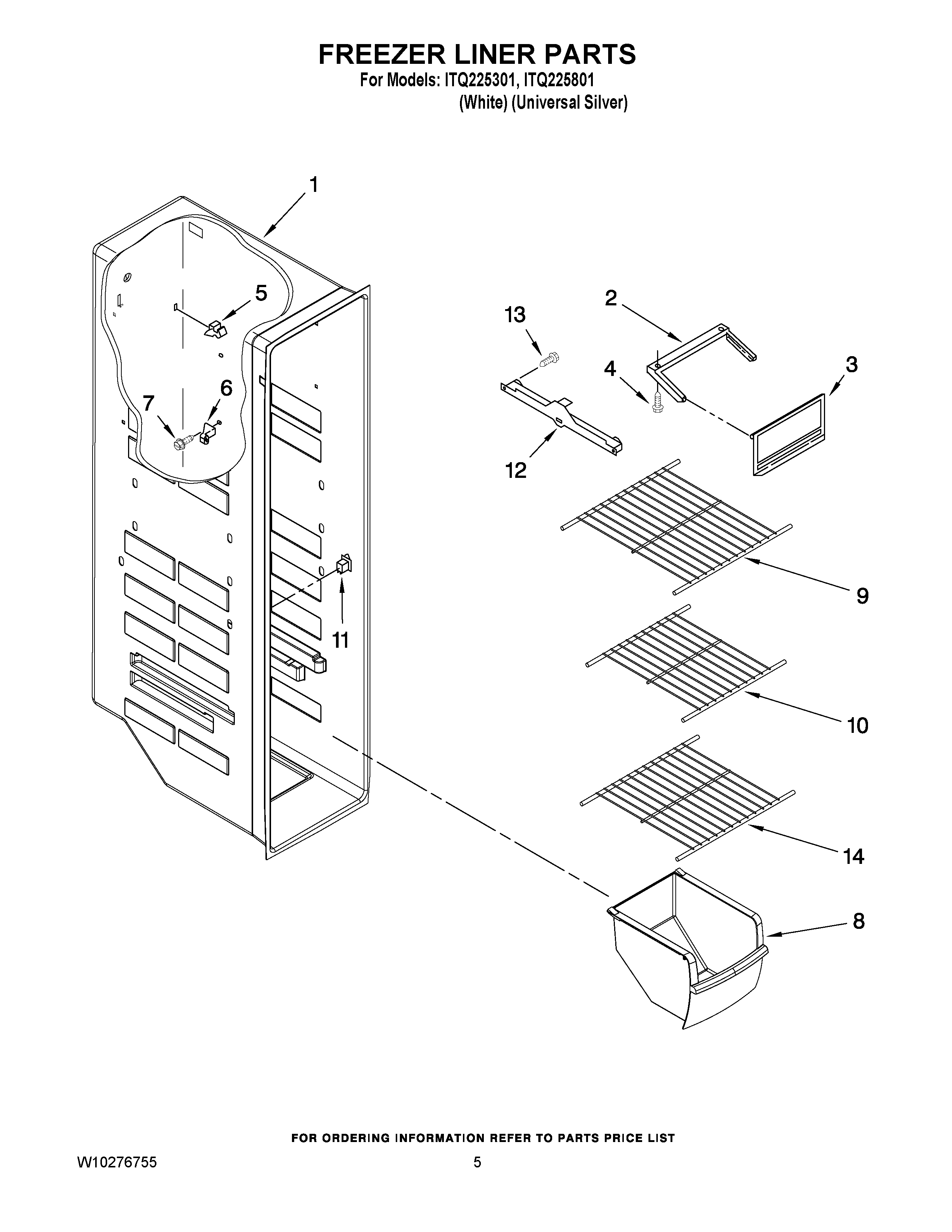

ITQ225301 04 – FREEZER LINER PARTS

ITQ225301 04 – FREEZER LINER PARTS

Written by

in

ITQ225301 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4WP489478 Whirlpool Refrigerator Screw
52215823 Whirlpool Refrigerator Clip
64388405 Whirlpool Refrigerator Shelf Stud
7W10142289 Whirlpool Air Conditioner Screw
8WP2309758 Whirlpool Refrigerator Freezer Bin
9WPW10318952 Whirlpool Wire Shelf
10WPW10318953 Whirlpool Wire Shelf
11W11457217 Whirlpool Refrigerator Rocker Switch Combination
12W10845585 Whirlpool Refrigerator Track
12W10845583 Whirlpool Refrigerator Track
13718257 Whirlpool Dishwasher Screw
14WPW10318951 Whirlpool Refrigerator Wire Shelf
