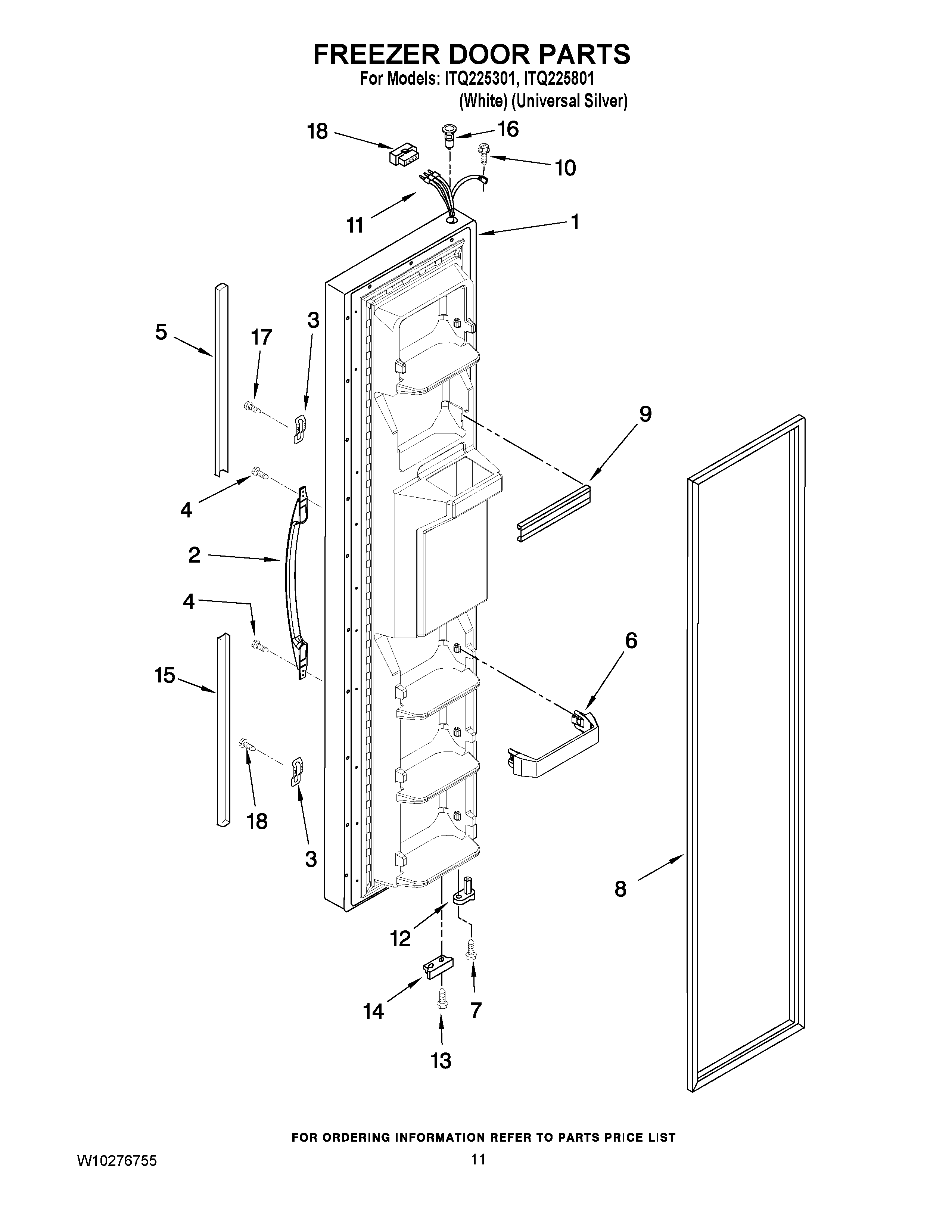

ITQ225301 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Universal Silver)
2Handle (White)
2Handle (Black)
3WP2195327 Whirlpool Refrigerator Clip
4WP489491 Whirlpool Refrigerator Screw
5WP2194706W Whirlpool Refrigerator Extension
5Extension, Top (Black)
6WP2156021 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159080 Whirlpool Refrigerator Door Gasket
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311642 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
14W10185566 Whirlpool Bracket
15Extension, Bottom (Black)
15Extension, Bottom (White)
16WP2182181 Whirlpool Refrigerator Thimble
17WP3400852 Whirlpool Refrigerator Screw
18WP2154473 Whirlpool Refrigerator Connector
