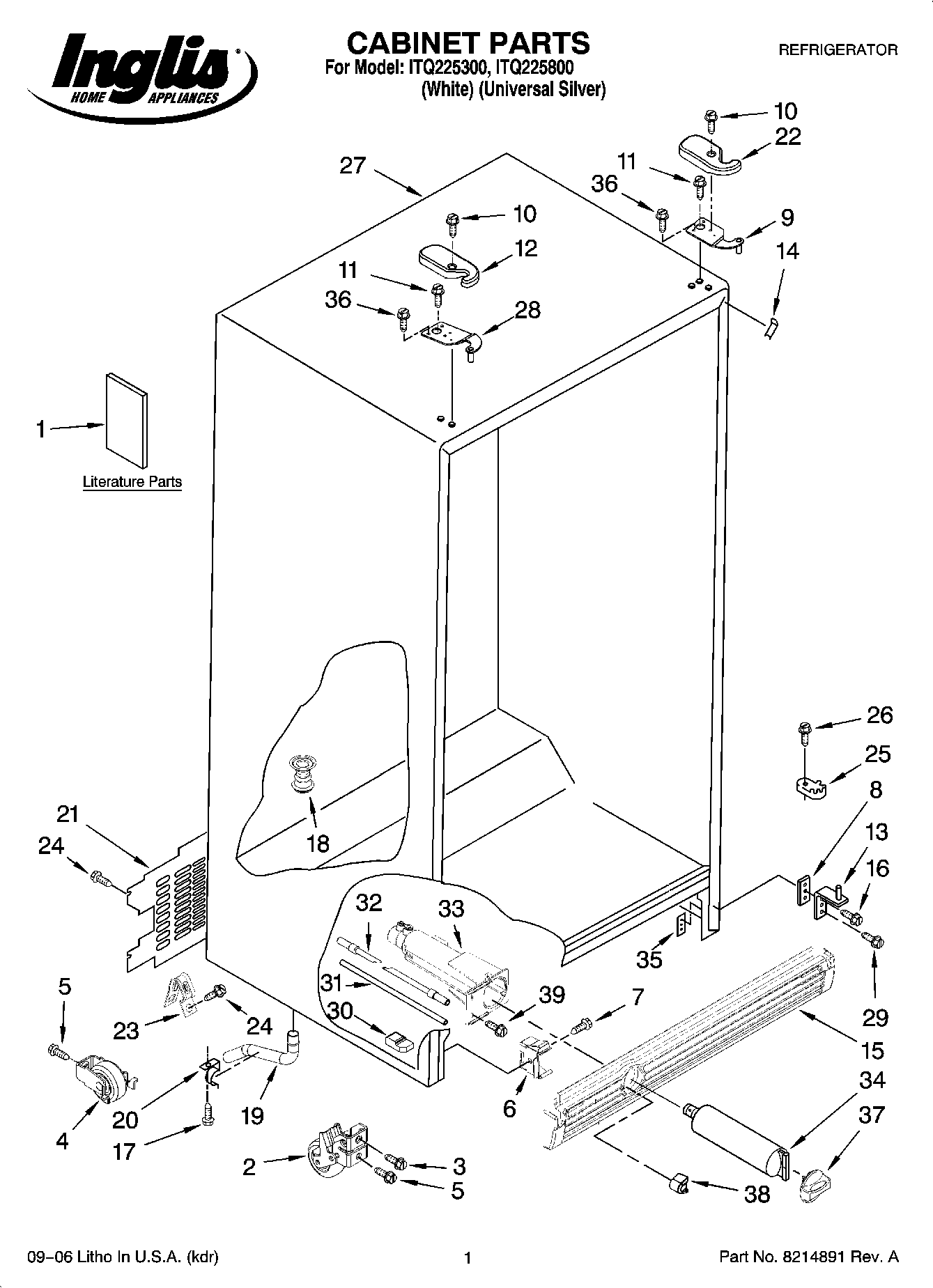

ITQ225800 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Use & Care Guide
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2209697 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP8281227 Whirlpool Screw
11	W10853301 Whirlpool Refrigerator Screw
12	WP2203407B Whirlpool Refrigerator Cover
12	WP2203407W Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	WPW10283959 Whirlpool Refrigerator Filler
14	W11252732 Whirlpool Refrigerator Filler
15	Grille (White)
15	Grille (Black)
16	WP489497 Whirlpool Screw
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	WP2188756 Whirlpool Refrigerator Unit Cover
22	WP2203408W Whirlpool Refrigerator Cover
22	WP2203408B Whirlpool Refrigerator Cover
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	Cabinet, (Not A Serviceable Part)
28	WP2203770 Whirlpool Refrigerator Door Hinge
29	W10856122 Whirlpool Refrigerator Screw
30	Block, Housing Support
31	WPW10350006 Whirlpool Refrigerator Water Tube
32	WP2304697 Whirlpool Refrigerator Water Tube
33	WPW10121138 Whirlpool Refrigerator Water Filter Housing
34	FILTER 3-SINGLE TEAL
35	WP2304249 Whirlpool Refrigerator Plate
37	WP2260518W Whirlpool Refrigerator Filter Cap
37	WP2260518B Whirlpool Water Filter Cap
38	2260503W Whirlpool Refrigerator Button
38	WP2260503B Whirlpool Refrigerator Button
39	WP489500 Whirlpool Refrigerator Screw
