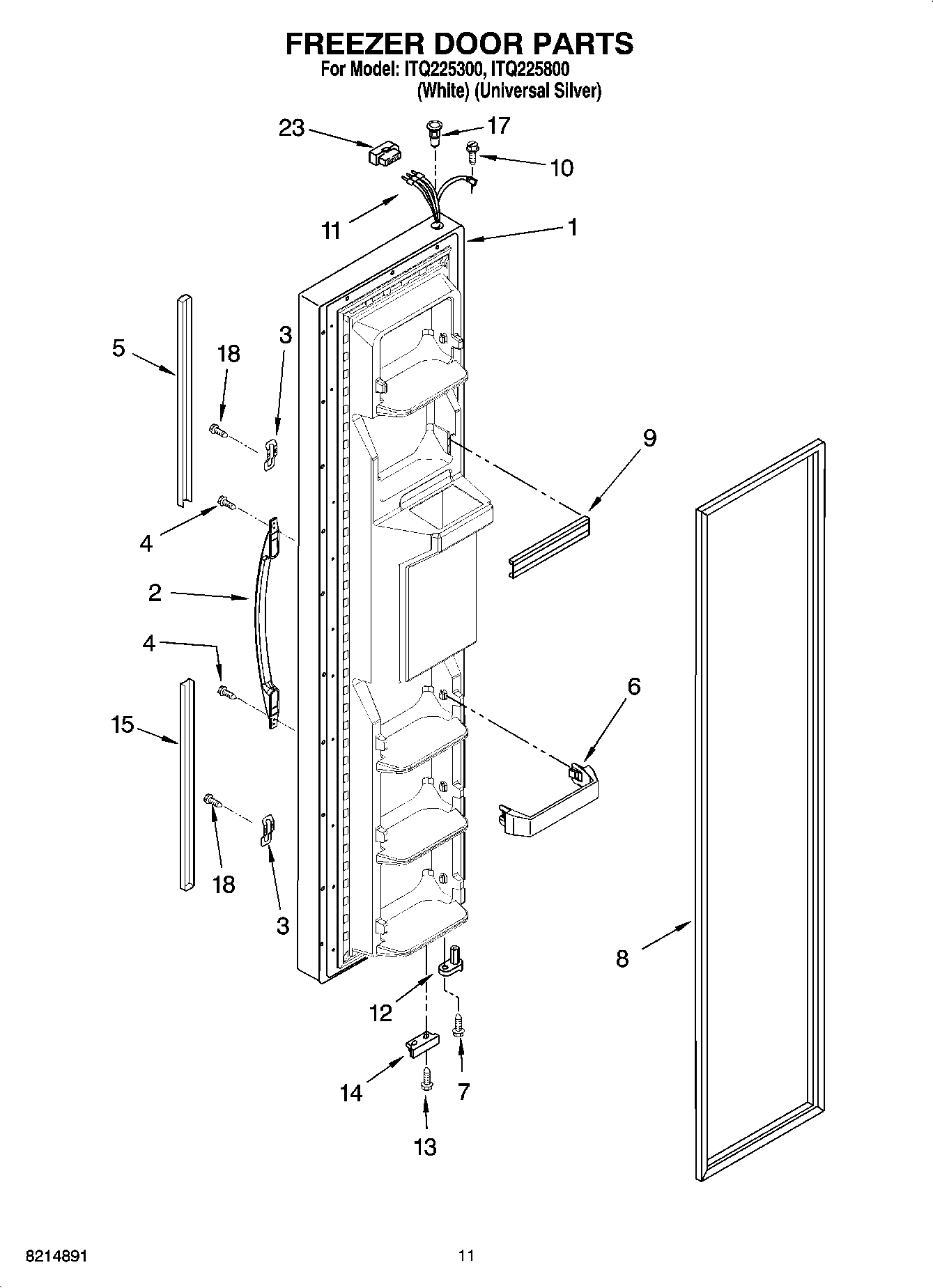

ITQ225800 07 – FREEZER DOOR PARTS

ITQ225800 07 – FREEZER DOOR PARTS

Written by

in

ITQ225800 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Universal Silver)
2Handle, Center (White)
2WP2186649B Whirlpool Refrigerator Handle
3WP2195327 Whirlpool Refrigerator Clip
4WP489491 Whirlpool Refrigerator Screw
5Extension, Top (White)
5WP2194971B Whirlpool Refrigerator Handle Trim
6Shelf Bin (4)
7WP3400012 Whirlpool Refrigerator Screw
82159072 Whirlpool Refrigerator FIP Gasket
82159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311642 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
15WP2194969B Whirlpool Refrigerator Handle Trim
15Extension, Bottom (White)
17WP2182181 Whirlpool Refrigerator Thimble
18WP3400852 Whirlpool Refrigerator Screw
23WP2154473 Whirlpool Refrigerator Connector
